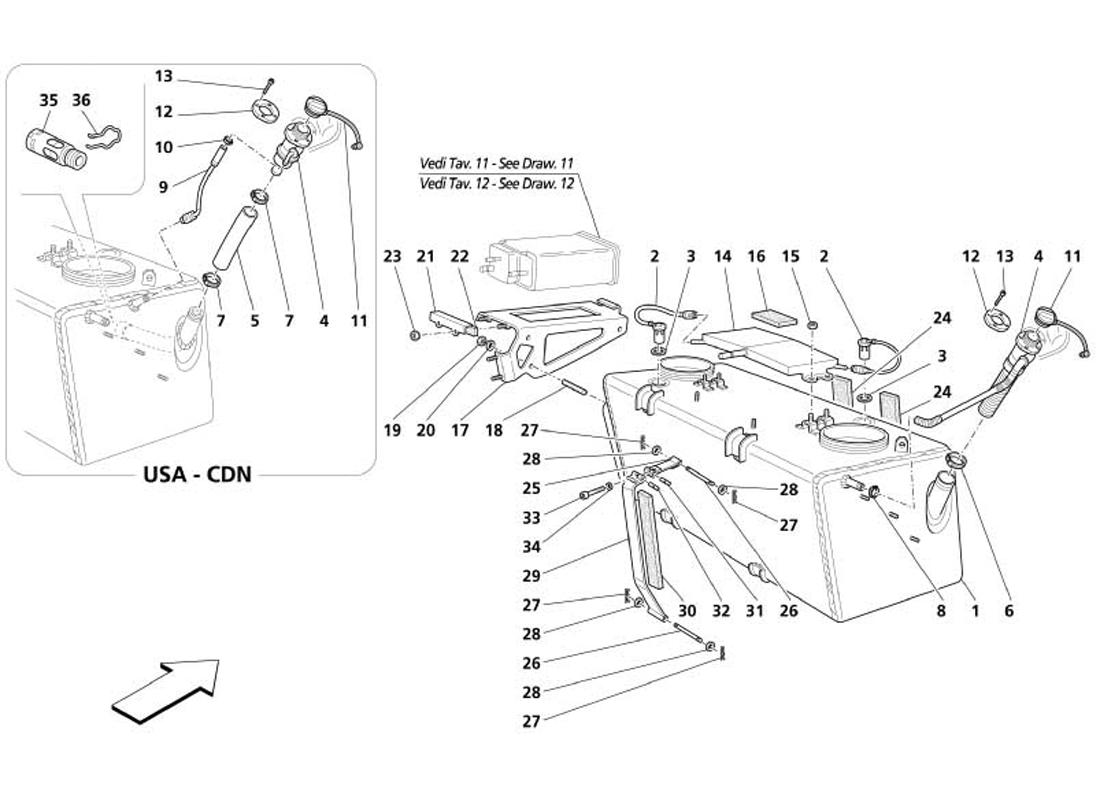

FUEL TANKS AND UNION

Go to Split View

FUEL TANKS AND UNION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 181194 *Qty: 1 FUEL TANK
Not for USA and CDN
$816.60
Location: 1 Prev | Next Part: 193835 *Qty: 1 FUEL TANK
Valid for USA and CDN
$2,432.36
Location: 2 Prev | Next Part: 181206 *Qty: 2 COMPLETE FLOAT VALVE $51.24
Location: 3 Prev | Next Part: 195049 *Qty: 2 GASKET FOR VALVE $4.59
Location: 4 Prev | Next Part: 183430 *Qty: 1 FUEL UNION
Not for USA and CDN
$478.76
Location: 4 Prev | Next Part: 183431 *Qty: 1 FUEL UNION
Valid for USA and CDN
$39.36
Location: 5 Prev | Next Part: 182637 *Qty: 1 UNION-TANK CONNECTING PIPE
Valid for USA and CDN
$118.98
Location: 6 Prev | Next Part: 13000790 *Qty: 1 SCREW COLLAR
Not for USA and CDN
$0.90
Location: 7 Prev | Next Part: 13000590 *Qty: 2 SCREW COLLAR
Valid for USA and CDN
Superseded
Location: 8 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR
Not for USA and CDN
$0.97
Location: 9 Prev | Next Part: 182586 *Qty: 1 VAPOR RECYCLING PIPE
Valid for USA and CDN
$544.49
Location: 10 Prev | Next Part: 13432070 *Qty: 1 SCREW COLLAR
Valid for USA and CDN
$0.90
Location: 11 Prev | Next Part: 183432 *Qty: 1 FUEL TANK PLUG $41.45
Location: 12 Prev | Next Part: 389200348 *Qty: 1 GASKET $4.29
Location: 13 Prev | Next Part: 13289277 *Qty: 4 SCREW $3.12
Location: 14 Prev | Next Part: 181209 *Qty: 1 DISAREATOR
Not for USA and CDN
$126.17
Location: 14 Prev | Next Part: 183011 *Qty: 1 DISAREATOR
Valid for USA and CDN
$313.55
Location: 15 Prev | Next Part: 12574211 *Qty: 4 NUT Superseded
Location: 16 Prev | Next Part: 127403 *Qty: 1 RUBBER THICKNESS $2.13
Location: 17 Prev | Next Part: 186510 *Qty: 1 VAPOR FILTER SUPPORTING BRACKET $1,410.63
Location: 18 Prev | Next Part: 11500024 *Qty: 3 STUD $1.06
Location: 19 Prev | Next Part: 12574211 *Qty: 3 NUT Superseded
Location: 20 Prev | Next Part: 10523424 *Qty: 3 WASHER $0.90
Location: 21 Prev | Next Part: 186512 *Qty: 1 BRACKET FOR VAPOR FILTER FIXING $201.50
Location: 22 Prev | Next Part: 184766 *Qty: 1 RUBBER THICKNESS $10.10
Location: 23 Prev | Next Part: 12574211 *Qty: 2 NUT Superseded
Location: 24 Prev | Next Part: 379200397 *Qty: 4 ADHESIVE GASKET $4.23
Location: 25 Prev | Next Part: 184208 *Qty: 2 FUEL TANK FASTENER $8.81
Location: 26 Prev | Next Part: 389200520 *Qty: 4 PIN $10.71
Location: 27 Prev | Next Part: 58841309 *Qty: 8 SAFETY CLIP $3.77
Location: 28 Prev | Next Part: 12648206 *Qty: 8 WASHER $0.90
Location: 29 Prev | Next Part: 184209 *Qty: 2 FUEL TANK FASTENER $11.56
Location: 30 Prev | Next Part: 379200397 *Qty: 2 ADHESIVE GASKET $4.23
Location: 31 Prev | Next Part: 670000413 *Qty: 2 ROD $3.13
Location: 32 Prev | Next Part: 670000412 *Qty: 2 ROD $2.99
Location: 33 Prev | Next Part: 14306921 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 10519624 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 181929 *Qty: 1 FUEL INTERCEPTION VALVE
Valid for USA and CDN
Call
Location: 36 Prev | Next Part: 181930 *Qty: 1 CLIP
Valid for USA and CDN
$87.40

* Quantity shown indicates the number of pieces used in the diagram.
