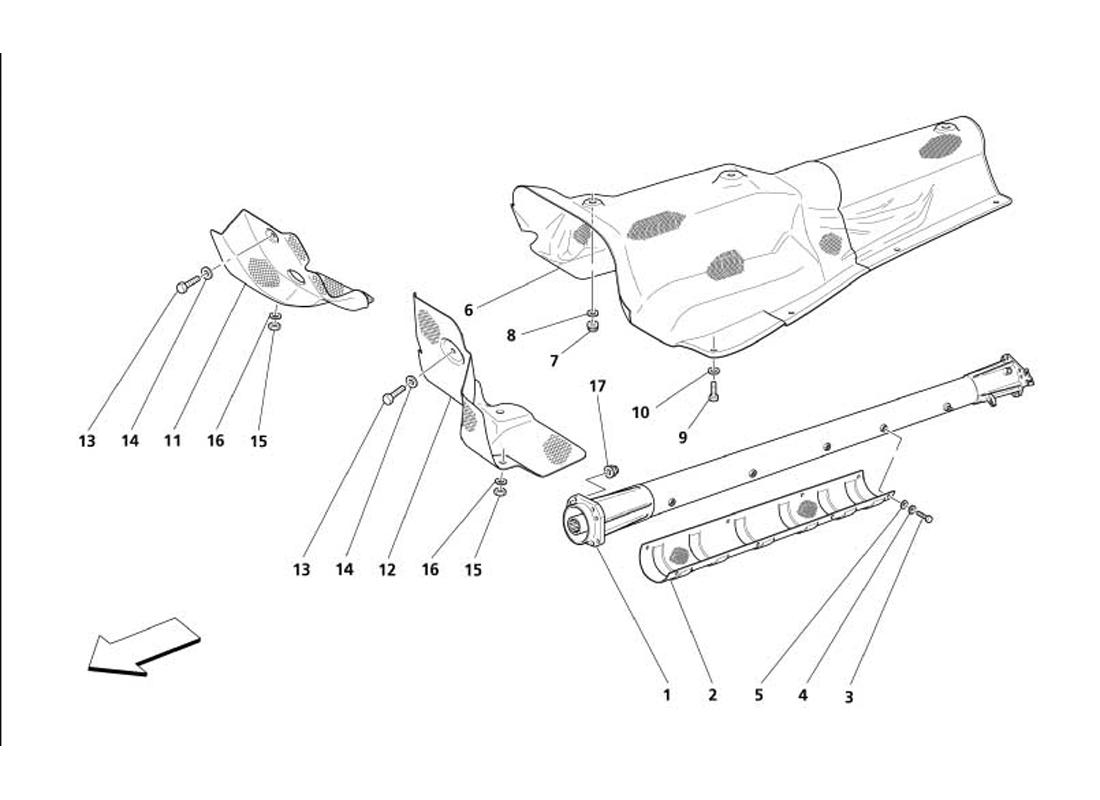

ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 187159 *Qty: 1 COMPLETEENGINE-TRANSMISSION CONNECTION TUBE $4,133.95
Location: 2 Prev | Next Part: 185559 *Qty: 1 ANTI-HEAT SHIELD $54.81
Location: 3 Prev | Next Part: 11635724 *Qty: 8 SCREW $0.90
Location: 4 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 5 Prev | Next Part: 12644424 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 66065500 *Qty: 1 TUNNEL HEAT SHIELD $261.50
Location: 7 Prev | Next Part: 14059111 *Qty: 3 NUT $0.90
Location: 8 Prev | Next Part: 12624124 *Qty: 3 WASHER $1.81
Location: 9 Prev | Next Part: 10977824 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 12624124 *Qty: 8 WASHER $1.81
Location: 11 Prev | Next Part: 66584200 *Qty: 1 R.H. SHIELD $47.77
Location: 12 Prev | Next Part: 66582900 *Qty: 1 L.H. SHIELD $47.77
Location: 13 Prev | Next Part: 10977824 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 12624124 *Qty: 4 WASHER $1.81
Location: 15 Prev | Next Part: 13831811 *Qty: 2 NUT $0.90
Location: 16 Prev | Next Part: 12624124 *Qty: 2 WASHER $1.81
Location: 17 Prev | Next Part: 156462 *Qty: 8 NUT $1.17

* Quantity shown indicates the number of pieces used in the diagram.
