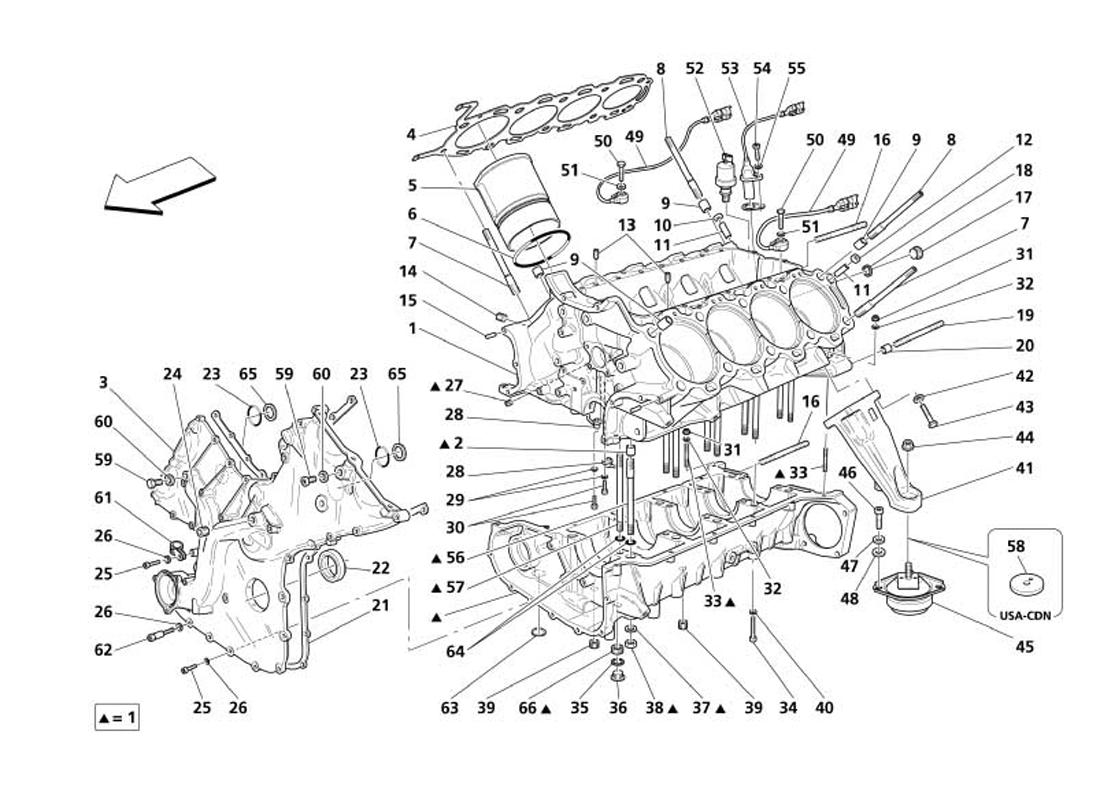

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 210160 *Qty: 1 COMPLETE CRANKCASE $4,838.63
Location: 1 Prev | Next Part: 210160 *Qty: 1 COMPLETE CRANKCASE $4,838.63
Location: 2 Prev | Next Part: 176421 *Qty: 10 CENTERING DOWEL $5.06
Location: 2 Prev | Next Part: 176421 *Qty: 10 CENTERING DOWEL $5.06
Location: 3 Prev | Next Part: 188710 *Qty: 1 FRONT COVER Call
Location: 3 Prev | Next Part: 188710 *Qty: 1 FRONT COVER Call
Location: 4 Prev | Next Part: 184967 *Qty: 1 L.H. HEAD GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$75.07
Location: 4 Prev | Next Part: 184966 *Qty: 1 R.H. HEAD GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$75.07
Location: 4 Prev | Next Part: 184967 *Qty: 1 L.H. HEAD GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$75.07
Location: 4 Prev | Next Part: 184966 *Qty: 1 R.H. HEAD GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$75.07
Location: 5 Prev | Next Part: 190770 *Qty: 8 CYLINDER LINER $330.09
Location: 5 Prev | Next Part: 190770 *Qty: 8 CYLINDER LINER $330.09
Location: 6 Prev | Next Part: 186251 *Qty: 24 GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
$3.11
Location: 6 Prev | Next Part: 186251 *Qty: 24 GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
$3.11
Location: 7 Prev | Next Part: 194754 *Qty: 10 STUD $15.18
Location: 7 Prev | Next Part: 194754 *Qty: 10 STUD $15.18
Location: 8 Prev | Next Part: 194755 *Qty: 10 STUD $111.62
Location: 8 Prev | Next Part: 194755 *Qty: 10 STUD $111.62
Location: 9 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL $3.50
Location: 9 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL $3.50
Location: 10 Prev | Next Part: 194773 *Qty: 1 DOWEL $7.30
Location: 10 Prev | Next Part: 194773 *Qty: 1 DOWEL $7.30
Location: 11 Prev | Next Part: 156862 *Qty: 2 NONRETURN VALVE $20.60
Location: 11 Prev | Next Part: 156862 *Qty: 2 NONRETURN VALVE $20.60
Location: 12 Prev | Next Part: 184045 *Qty: 1 DOWEL $7.30
Location: 12 Prev | Next Part: 184045 *Qty: 1 DOWEL $7.30
Location: 13 Prev | Next Part: 177727 *Qty: 2 CENTERING DOWEL $3.05
Location: 13 Prev | Next Part: 177727 *Qty: 2 CENTERING DOWEL $3.05
Location: 14 Prev | Next Part: 164400 *Qty: 1 THREADED PLUG $4.54
Location: 14 Prev | Next Part: 164400 *Qty: 1 THREADED PLUG $4.54
Location: 15 Prev | Next Part: 175611 *Qty: 2 CENTERING DOWEL $2.07
Location: 15 Prev | Next Part: 175611 *Qty: 2 CENTERING DOWEL $2.07
Location: 16 Prev | Next Part: 13546734 *Qty: 2 STUD $1.71
Location: 16 Prev | Next Part: 13546834 *Qty: 3 STUD $2.04
Location: 16 Prev | Next Part: 13546734 *Qty: 2 STUD $1.71
Location: 16 Prev | Next Part: 13546834 *Qty: 3 STUD $2.04
Location: 17 Prev | Next Part: 193885 *Qty: 1 THREADED PLUG $4.45
Location: 17 Prev | Next Part: 193885 *Qty: 1 THREADED PLUG $4.45
Location: 18 Prev | Next Part: 10263460 *Qty: 1 GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
Superseded
Location: 18 Prev | Next Part: 10263460 *Qty: 1 GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
Superseded
Location: 19 Prev | Next Part: 13546934 *Qty: 1 STUD $2.12
Location: 19 Prev | Next Part: 13547034 *Qty: 1 STUD $2.71
Location: 19 Prev | Next Part: 13546934 *Qty: 1 STUD $2.12
Location: 19 Prev | Next Part: 13547034 *Qty: 1 STUD $2.71
Location: 20 Prev | Next Part: 100052 *Qty: 2 CENTERING DOWEL $2.77
Location: 20 Prev | Next Part: 100052 *Qty: 2 CENTERING DOWEL $2.77
Location: 21 Prev | Next Part: 193656 *Qty: 1 FRONT COVER GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
Superseded
Location: 21 Prev | Next Part: 193656 *Qty: 1 FRONT COVER GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
Superseded
Location: 22 Prev | Next Part: 188717 *Qty: 1 COVER GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$15.95
Location: 22 Prev | Next Part: 188717 *Qty: 1 COVER GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$15.95
Location: 23 Prev | Next Part: 183010 *Qty: 2 O.R. GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$1.84
Location: 23 Prev | Next Part: 183010 *Qty: 2 O.R. GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
$1.84
Location: 24 Prev | Next Part: 14324940 *Qty: 1 THREADED PLUG $2.12
Location: 24 Prev | Next Part: 14324940 *Qty: 1 THREADED PLUG $2.12
Location: 25 Prev | Next Part: 14305524 *Qty: 4 SCREW
M 6X30
$0.90
Location: 25 Prev | Next Part: 14432224 *Qty: 3 SCREW
M 6X22
Superseded
Location: 25 Prev | Next Part: 14303924 *Qty: 3 SCREW
M 6X70
$0.90
Location: 25 Prev | Next Part: 14306024 *Qty: 2 SCREW
M 6X50
Superseded
Location: 25 Prev | Next Part: 14432224 *Qty: 3 SCREW
M 6X22
Superseded
Location: 25 Prev | Next Part: 14305624 *Qty: 2 SCREW
M 6X35
$0.90
Location: 25 Prev | Next Part: 14306024 *Qty: 2 SCREW
M 6X50
Superseded
Location: 25 Prev | Next Part: 14305924 *Qty: 1 SCREW
M 6X45
Superseded
Location: 25 Prev | Next Part: 14305624 *Qty: 2 SCREW
M 6X35
$0.90
Location: 25 Prev | Next Part: 14305924 *Qty: 1 SCREW
M 6X45
Superseded
Location: 25 Prev | Next Part: 14433124 *Qty: 14 SCREW
M 6X18
$0.90
Location: 25 Prev | Next Part: 14305524 *Qty: 4 SCREW
M 6X30
$0.90
Location: 25 Prev | Next Part: 14303924 *Qty: 3 SCREW
M 6X70
$0.90
Location: 25 Prev | Next Part: 14433124 *Qty: 14 SCREW
M 6X18
$0.90
Location: 26 Prev | Next Part: 11197774 *Qty: 32 WASHER Superseded
Location: 26 Prev | Next Part: 11197774 *Qty: 32 WASHER Superseded
Location: 27 Prev | Next Part: 13525770 *Qty: 5 THREADED INSERT $0.90
Location: 27 Prev | Next Part: 13525770 *Qty: 5 THREADED INSERT $0.90
Location: 28 Prev | Next Part: 175657 *Qty: 8 PISTONS COOLING NOZZLE $9.52
Location: 28 Prev | Next Part: 175657 *Qty: 8 PISTONS COOLING NOZZLE $9.52
Location: 29 Prev | Next Part: 11181474 *Qty: 8 WASHER $0.90
Location: 29 Prev | Next Part: 11181474 *Qty: 8 WASHER $0.90
Location: 30 Prev | Next Part: 14302921 *Qty: 8 SCREW $0.90
Location: 30 Prev | Next Part: 14302921 *Qty: 8 SCREW $0.90
Location: 31 Prev | Next Part: 132877 *Qty: 2 NUT $3.78
Location: 31 Prev | Next Part: 132877 *Qty: 2 NUT $3.78
Location: 32 Prev | Next Part: 12604274 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 12604274 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 13541624 *Qty: 2 STUD $0.90
Location: 33 Prev | Next Part: 13541624 *Qty: 2 STUD $0.90
Location: 34 Prev | Next Part: 14305324 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 14305424 *Qty: 10 SCREW Superseded
Location: 34 Prev | Next Part: 14305324 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 14305424 *Qty: 10 SCREW Superseded
Location: 35 Prev | Next Part: 10261860 *Qty: 1 GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
$0.90
Location: 35 Prev | Next Part: 10261860 *Qty: 1 GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
$0.90
Location: 36 Prev | Next Part: 104280 *Qty: 1 THREADED PLUG $6.54
Location: 36 Prev | Next Part: 104280 *Qty: 1 THREADED PLUG $6.54
Location: 37 Prev | Next Part: 178348 *Qty: 20 WASHER $0.92
Location: 37 Prev | Next Part: 178348 *Qty: 20 WASHER $0.92
Location: 38 Prev | Next Part: 133988 *Qty: 20 NUT $0.90
Location: 38 Prev | Next Part: 133988 *Qty: 20 NUT $0.90
Location: 39 Prev | Next Part: 14325140 *Qty: 4 THREADED PLUG $1.84
Location: 39 Prev | Next Part: 14325140 *Qty: 4 THREADED PLUG $1.84
Location: 40 Prev | Next Part: 11197774 *Qty: 11 WASHER Superseded
Location: 40 Prev | Next Part: 11197774 *Qty: 11 WASHER Superseded
Location: 41 Prev | Next Part: 186030 *Qty: 1 LH ENGINE FIXING SUPPORT $113.16
Location: 41 Prev | Next Part: 186029 *Qty: 1 RH ENGINE FIXING SUPPORT $113.16
Location: 41 Prev | Next Part: 186030 *Qty: 1 LH ENGINE FIXING SUPPORT $113.16
Location: 41 Prev | Next Part: 186029 *Qty: 1 RH ENGINE FIXING SUPPORT $113.16
Location: 42 Prev | Next Part: 11190574 *Qty: 8 WASHER $0.90
Location: 42 Prev | Next Part: 11190574 *Qty: 8 WASHER $0.90
Location: 43 Prev | Next Part: 11306934 *Qty: 8 SCREW $0.90
Location: 43 Prev | Next Part: 11306934 *Qty: 8 SCREW $0.90
Location: 44 Prev | Next Part: 177018 *Qty: 2 NUT $1.46
Location: 44 Prev | Next Part: 177018 *Qty: 2 NUT $1.46
Location: 45 Prev | Next Part: 185361 *Qty: 2 ENGINE PAD $183.73
Location: 45 Prev | Next Part: 185361 *Qty: 2 ENGINE PAD $183.73
Location: 46 Prev | Next Part: 14307334 *Qty: 4 SCREW $9.11
Location: 46 Prev | Next Part: 14307334 *Qty: 4 SCREW $9.11
Location: 47 Prev | Next Part: 11198374 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: 11198374 *Qty: 4 WASHER $0.90
Location: 48 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 48 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 49 Prev | Next Part: 187739 *Qty: 2 SENSOR FOR FIRING
Flywheel side
$66.89
Location: 49 Prev | Next Part: 187740 *Qty: 2 SENSOR FOR FIRING
Timing side
$66.87
Location: 49 Prev | Next Part: 187739 *Qty: 2 SENSOR FOR FIRING
Flywheel side
$66.89
Location: 49 Prev | Next Part: 187740 *Qty: 2 SENSOR FOR FIRING
Timing side
$66.87
Location: 50 Prev | Next Part: 16043834 *Qty: 4 SCREW $0.90
Location: 50 Prev | Next Part: 16043834 *Qty: 4 SCREW $0.90
Location: 51 Prev | Next Part: 11198074 *Qty: 4 WASHER $0.90
Location: 51 Prev | Next Part: 11198074 *Qty: 4 WASHER $0.90
Location: 52 Prev | Next Part: 135940 *Qty: 1 OIL PRESSURE TRANSMITTER $202.64
Location: 52 Prev | Next Part: 135940 *Qty: 1 OIL PRESSURE TRANSMITTER $202.64
Location: 53 Prev | Next Part: 182194 *Qty: 1 ANGOLAR SPEED SENSOR $82.30
Location: 53 Prev | Next Part: 182194 *Qty: 1 ANGOLAR SPEED SENSOR $82.30
Location: 54 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 54 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 55 Prev | Next Part: 11197774 *Qty: 1 WASHER Superseded
Location: 55 Prev | Next Part: 11197774 *Qty: 1 WASHER Superseded
Location: 56 Prev | Next Part: 194756 *Qty: 10 STUD $12.54
Location: 56 Prev | Next Part: 194756 *Qty: 10 STUD $12.54
Location: 57 Prev | Next Part: 194757 *Qty: 10 STUD $10.04
Location: 57 Prev | Next Part: 194757 *Qty: 10 STUD $10.04
Location: 58 Prev | Next Part: 191791 *Qty: 2 PAD UPPER SHIELD
Valid for USA and CDN
$3.59
Location: 58 Prev | Next Part: 191791 *Qty: 2 PAD UPPER SHIELD
Valid for USA and CDN
$3.59
Location: 59 Prev | Next Part: 187718 *Qty: 2 BLEEDER PLUG $6.59
Location: 59 Prev | Next Part: 187718 *Qty: 2 BLEEDER PLUG $6.59
Location: 60 Prev | Next Part: 10284460 *Qty: 2 GASKET $0.90
Location: 60 Prev | Next Part: 10284460 *Qty: 2 GASKET $0.90
Location: 61 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 61 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 62 Prev | Next Part: 190876 *Qty: 1 STUD $19.74
Location: 62 Prev | Next Part: 190876 *Qty: 1 STUD $19.74
Location: 63 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.79
Location: 63 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.79
Location: 64 Prev | Next Part: 134704 *Qty: 20 O.R. GASKET $0.90
Location: 64 Prev | Next Part: 134704 *Qty: 20 O.R. GASKET $0.90
Location: 65 Prev | Next Part: 191620 *Qty: 2 REDUCTION $19.80
Location: 65 Prev | Next Part: 191620 *Qty: 2 REDUCTION $19.80
Location: 66 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $5.06
Location: 66 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $5.06

* Quantity shown indicates the number of pieces used in the diagram.
