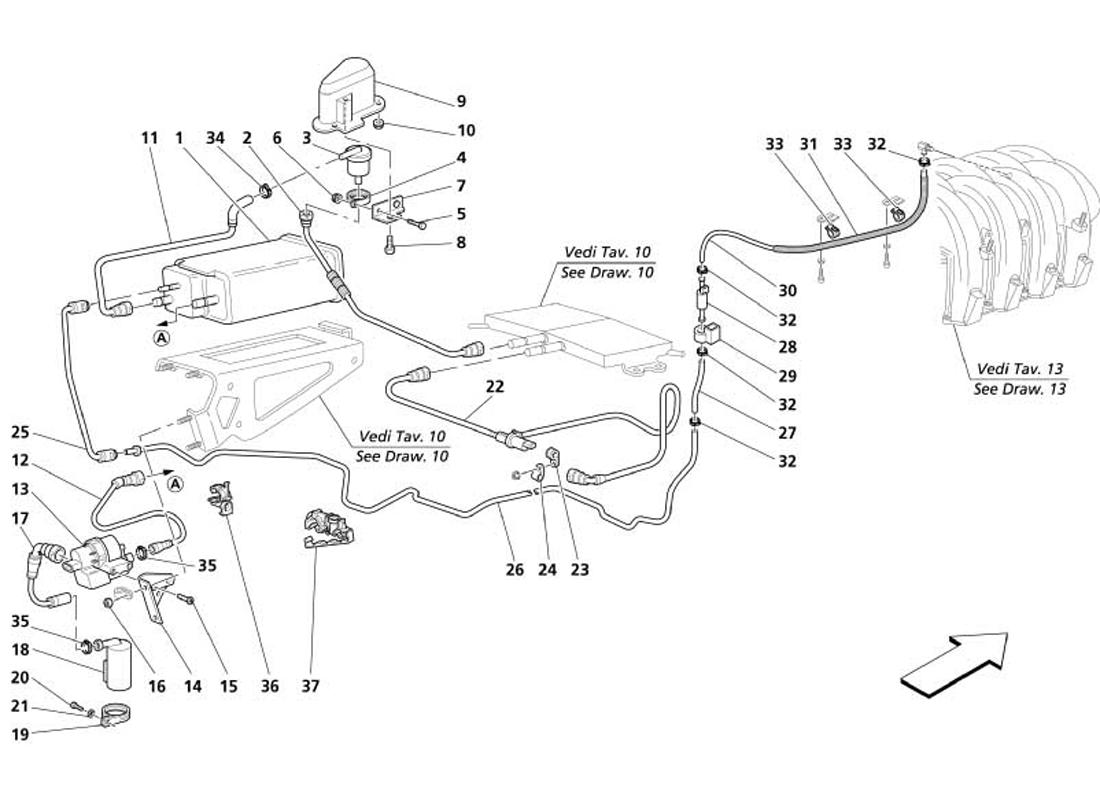

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN-

Go to Split View

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 185135 *Qty: 1 FUEL VAPOR FILTER $245.50
Location: 2 Prev | Next Part: 181705 *Qty: 1 PIPE FROM DISAREATOR TO ROLL-OVER Superseded
Location: 3 Prev | Next Part: 180573 *Qty: 1 ROLL-OVER VALVE $132.33
Location: 4 Prev | Next Part: 66133600 *Qty: 1 BRACKET WITH SHEATH $9.40
Location: 5 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 14084211 *Qty: 1 NUT $0.90
Location: 7 Prev | Next Part: 66132900 *Qty: 1 ROLL-OVER VALVE FIXING BRACKET $10.66
Location: 8 Prev | Next Part: 10979414 *Qty: 1 SCREW $0.90
Location: 9 Prev | Next Part: 66294500 *Qty: 1 ROLL-OVER VALVE COVER $18.79
Location: 10 Prev | Next Part: 14084211 *Qty: 3 NUT $0.90
Location: 11 Prev | Next Part: 181707 *Qty: 1 PIPE FROM ROLL-OVER TO CANISTER $48.54
Location: 12 Prev | Next Part: 181714 *Qty: 1 PIPE FROM CANISTER TO PUMP $557.46
Location: 13 Prev | Next Part: 185405 *Qty: 1 DIAGNOSIS PUMP $211.27
Location: 14 Prev | Next Part: 182381 *Qty: 1 DIAGNOSIS PUMP FIXING BRACKET $479.16
Location: 15 Prev | Next Part: 15958701 *Qty: 3 SCREW $0.90
Location: 16 Prev | Next Part: 12574211 *Qty: 2 NUT Superseded
Location: 17 Prev | Next Part: 186901 *Qty: 1 PIPE FROM PUMP TO FILTER $97.09
Location: 18 Prev | Next Part: 183221 *Qty: 1 FILTER FOR OBD PUMP $27.62
Location: 19 Prev | Next Part: 66244600 *Qty: 1 BRACKET WITH SHEATH $10.03
Location: 20 Prev | Next Part: 10977624 *Qty: 1 SCREW $0.90
Location: 21 Prev | Next Part: 12638104 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 182585 *Qty: 1 PIERBURG VALVE COMPLETE TUBE $211.40
Location: 23 Prev | Next Part: 10442290 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 24 Prev | Next Part: 10440790 *Qty: 1 BRACKET WITH SHEATH $1.26
Location: 25 Prev | Next Part: 181712 *Qty: 1 PIPE FROM CANISTER TO UNDERFLOOR Superseded
Location: 26 Prev | Next Part: 190519 *Qty: 1 COMPLETE UNDERFLOOR TUBE $43.07
Location: 27 Prev | Next Part: 181703 *Qty: 1 WASHING VALVE INLET TUBE $8.79
Location: 28 Prev | Next Part: 180861 *Qty: 1 WASHING VALVE $44.93
Location: 29 Prev | Next Part: 174623 *Qty: 1 BUFFER FOR SUPPORT $13.12
Location: 30 Prev | Next Part: 181704 *Qty: 1 WASHING VALVE OUTLET PIPE $32.11
Location: 31 Prev | Next Part: 318720333 *Qty: 1 PIPE
Supplied in meters - (Minimum quantity 1m. or multiples)
$7.52
Location: 32 Prev | Next Part: 13432070 *Qty: 4 SCREW COLLAR $0.90
Location: 33 Prev | Next Part: 178430 *Qty: 2 CLIP $0.90
Location: 34 Prev | Next Part: 13433370 *Qty: 1 COLLAR FOR SLEEVE $0.92
Location: 35 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 36 Prev | Next Part: 187840 *Qty: 1 CLIP
(Quantity defined duringat assembly)
$1.42
Location: 37 Prev | Next Part: 190409 *Qty: 1 CLIP
(Quantity defined during at assembly)
$6.83

* Quantity shown indicates the number of pieces used in the diagram.
