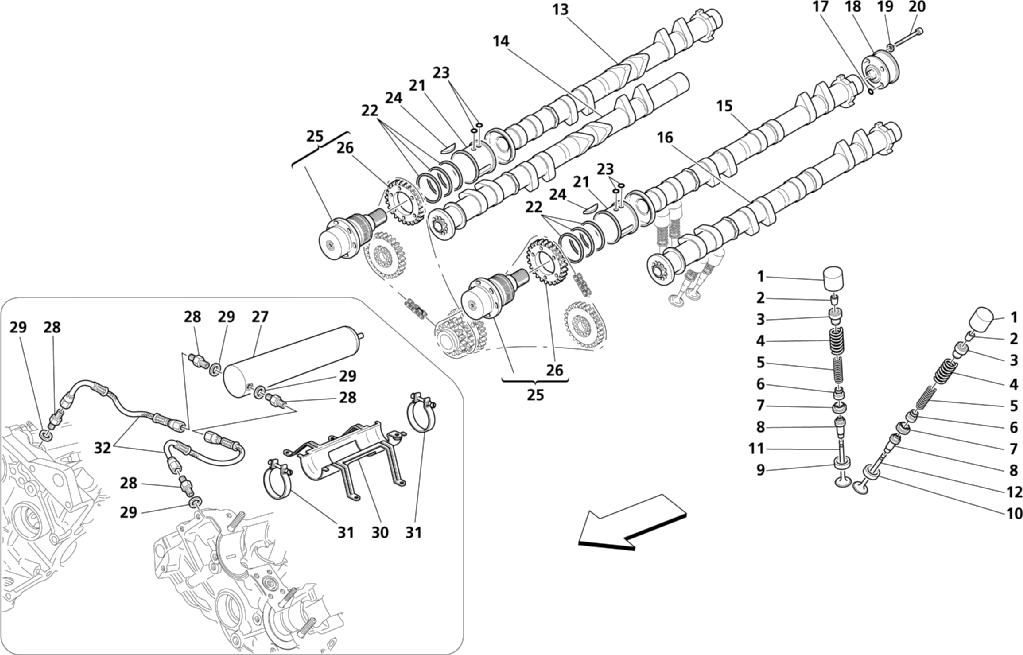

TIMING - TAPPETS

Go to Split View

TIMING - TAPPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 187657 *Qty: 32 TAPPET FOR VALVE CONTROL $116.08
Location: 2 Prev | Next Part: 179763 *Qty: 64 COTTER FOR VALVE SPRING $1.07
Location: 3 Prev | Next Part: 187489 *Qty: 32 UPPER CUP $9.46
Location: 4 Prev | Next Part: 184054 *Qty: 32 OUTER SPRING FOR VALVE RETURN $18.02
Location: 5 Prev | Next Part: 184055 *Qty: 32 INNER SPRING FOR VALVE RETURN $117.00
Location: 6 Prev | Next Part: 148153 *Qty: 32 OIL RING
- Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
$3.90
Location: 7 Prev | Next Part: 190388 *Qty: 32 LOWER CUP $27.63
Location: 7 Prev | Next Part: 190408 *Qty: 32 LOWER CUP
- Oversized
$45.60
Location: 8 Prev | Next Part: 172452 *Qty: 32 INTAKE VALVE GUIDE
- Oversized
$32.07
Location: 8 Prev | Next Part: 172328 *Qty: 32 INTAKE VALVE GUIDE Superseded
Location: 9 Prev | Next Part: 175381 *Qty: 16 INTAKE VALVE SEAT $12.92
Location: 10 Prev | Next Part: 179959 *Qty: 16 EXHAUST VALVE SEAT $11.31
Location: 11 Prev | Next Part: 175395 *Qty: 16 INTAKE VALVE $14.92
Location: 12 Prev | Next Part: 189351 *Qty: 16 EXHAUST VALVE $315.84
Location: 13 Prev | Next Part: 190656 *Qty: 1 R.H. INDUCTION DISTRIBUTION CAM SHAFT $3,570.23
Location: 14 Prev | Next Part: 190658 *Qty: 1 R.H. EXHAUST CAM SHAFT $3,570.23
Location: 15 Prev | Next Part: 190657 *Qty: 1 L.H. INDUCTION DISTRIBUTION CAM SHAFT $3,921.85
Location: 16 Prev | Next Part: 190659 *Qty: 1 L.H. EXHAUST CAM SHAFT $3,570.23
Location: 17 Prev | Next Part: 134701 *Qty: 2 O.R. GASKET $0.90
Location: 18 Prev | Next Part: 189541 *Qty: 1 OIL PUMP VARIATOR $150.33
Location: 19 Prev | Next Part: 184731 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 14303523 *Qty: 4 SCREW $1.94
Location: 21 Prev | Next Part: 190393 *Qty: 2 PHASE VARIATOR SUPPORTNG BUSHING Superseded
Location: 22 Prev | Next Part: 179926 *Qty: 6 RING Call
Location: 23 Prev | Next Part: 134701 *Qty: 4 O.R. GASKET $0.90
Location: 24 Prev | Next Part: 10617520 *Qty: 2 KEY $2.23
Location: 25 Prev | Next Part: 190012 *Qty: 2 PHASE VARIATOR $958.33
Location: 26 Prev | Next Part: 189576 *Qty: 2 TOOTHED WHEEL $292.69
Location: 27 Prev | Next Part: 190163 *Qty: 1 OIL ACCUMULATOR FOR VARIATOR $331.85
Location: 28 Prev | Next Part: 189452 *Qty: 4 THREADED UNION
- Valid till stock exhaustion
Call
Location: 28 Prev | Next Part: 193738 *Qty: 4 THREADED UNION
- Valid after stock exhaustion of 189452
$7.06
Location: 29 Prev | Next Part: 10261060 *Qty: 4 GASKET $0.90
Location: 30 Prev | Next Part: 189950 *Qty: 1 OIL ACCUMULATOR SEAT
- Valid till stock exhaustion
$20.36
Location: 30 Prev | Next Part: 193406 *Qty: 1 OIL ACCUMULATOR SEAT
- Valid after stock exhaustion of 189950
$23.49
Location: 31 Prev | Next Part: 190162 *Qty: 2 CLAMP $18.66
Location: 32 Prev | Next Part: 194710 *Qty: 2 PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
- Valid after stock exhaustion of 189949
$102.20
Location: 32 Prev | Next Part: 189949 *Qty: 2 PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
- Valid till stock exhaustion
$102.58

* Quantity shown indicates the number of pieces used in the diagram.
