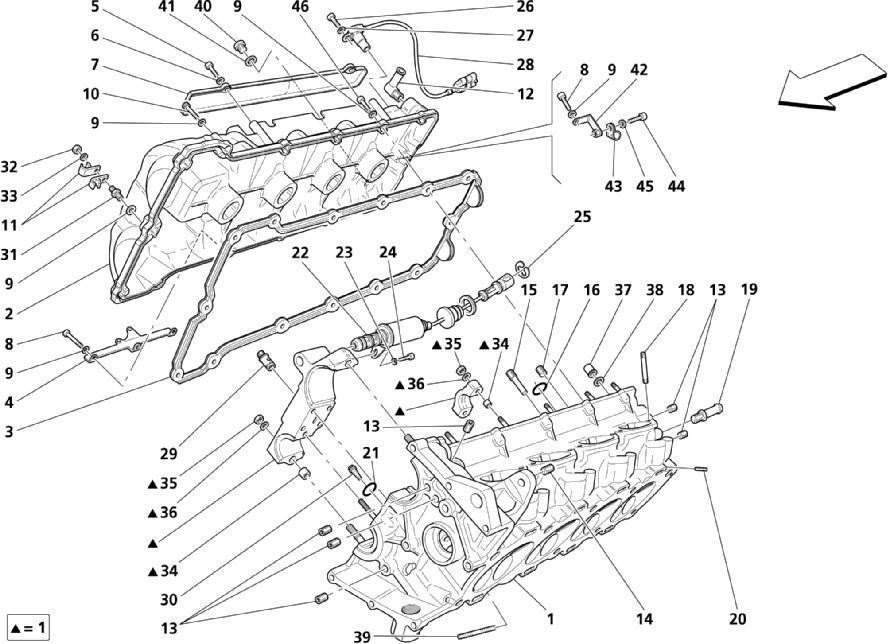

R.H. CYLINDER HEAD

Go to Split View

R.H. CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 189359 *Qty: 1 COMPLETE R.H. HEAD $4,443.37
Location: 2 Prev | Next Part: 187815 *Qty: 1 R.H. CYLINDERS HEAD COVER $455.89
Location: 3 Prev | Next Part: 198549 *Qty: 1 R.H. HEAD COVER GASKET
- Supplied also in the cover gasket revision kit (cod. 98002000)
Call
Location: 4 Prev | Next Part: 192390 *Qty: 1 SECONDARY AIR VALVE FIX. BRACKET
- Valid after stock exhaustion of 186252
Call
Location: 4 Prev | Next Part: 186252 *Qty: 1 SECONDARY AIR VALVE FIX. BRACKET
- Valid till stock exhaustion
$154.88
Location: 5 Prev | Next Part: 14304424 *Qty: 3 SCREW $0.90
Location: 6 Prev | Next Part: 14497878 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 185276 *Qty: 1 R.H. HARNESS SMALL COVER $49.58
Location: 8 Prev | Next Part: 156834 *Qty: 8 SCREW $0.90
Location: 9 Prev | Next Part: 11197774 *Qty: 16 WASHER Superseded
Location: 10 Prev | Next Part: 156830 *Qty: 1 SCREW $1.17
Location: 11 Prev | Next Part: 187713 *Qty: 2 CLIP $3.12
Location: 12 Prev | Next Part: 124342 *Qty: 1 THREADED UNION $5.56
Location: 13 Prev | Next Part: 14326050 *Qty: 6 THREADED PLUG $1.72
Location: 14 Prev | Next Part: 140135 *Qty: 1 THREADED INSERT $4.33
Location: 15 Prev | Next Part: 183447 *Qty: 4 THREADED PLUG $12.25
Location: 16 Prev | Next Part: 187706 *Qty: 4 GASKET
- Supplied also in the cover gasket revision kit (cod. 98002000)
$1.58
Location: 17 Prev | Next Part: 164400 *Qty: 1 THREADED PLUG $4.54
Location: 18 Prev | Next Part: 13541224 *Qty: 8 STUD $0.90
Location: 19 Prev | Next Part: 191633 *Qty: 1 UNION $71.46
Location: 20 Prev | Next Part: 141563 *Qty: 4 THREADED PLUG $1.84
Location: 21 Prev | Next Part: 134233 *Qty: 1 GASKET
- Supplied also in the cover gasket revision kit (cod. 98002000)
$0.90
Location: 22 Prev | Next Part: 186563 *Qty: 1 VARIATOR CONTROL SOLENOID VALVE Superseded
Location: 23 Prev | Next Part: 11197774 *Qty: 1 WASHER Superseded
Location: 24 Prev | Next Part: 14433124 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 11087376 *Qty: 1 FLEXIBLE RING $0.90
Location: 26 Prev | Next Part: 14305224 *Qty: 1 SCREW $0.90
Location: 27 Prev | Next Part: 11197774 *Qty: 1 WASHER Superseded
Location: 28 Prev | Next Part: 177673 *Qty: 1 PHASE SENSOR $176.88
Location: 29 Prev | Next Part: 184681 *Qty: 1 OIL PRESSURE CHECK VALVE $462.83
Location: 30 Prev | Next Part: 180266 *Qty: 1 OIL FILTER
- Supplied also in the cover gasket revision kit (cod. 98002000)
$14.10
Location: 31 Prev | Next Part: 187711 *Qty: 1 STUD $73.65
Location: 32 Prev | Next Part: 12575411 *Qty: 1 NUT Superseded
Location: 33 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 34 Prev | Next Part: 102725 *Qty: 22 CENTERING DOWEL $0.90
Location: 35 Prev | Next Part: 15896211 *Qty: 22 NUT Superseded
Location: 36 Prev | Next Part: 11197774 *Qty: 22 WASHER Superseded
Location: 37 Prev | Next Part: 183524 *Qty: 10 NUT $4.33
Location: 38 Prev | Next Part: 151117 *Qty: 10 WASHER $1.41
Location: 39 Prev | Next Part: 13543424 *Qty: 8 STUD $0.90
Location: 40 Prev | Next Part: 187963 *Qty: 1 PLUG $4.87
Location: 41 Prev | Next Part: 10263360 *Qty: 1 GASKET $0.90
Location: 42 Prev | Next Part: 185471 *Qty: 1 BRACKET $3.65
Location: 43 Prev | Next Part: 10441190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 44 Prev | Next Part: 14305024 *Qty: 1 SCREW $0.90
Location: 45 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 46 Prev | Next Part: 157218 *Qty: 7 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
