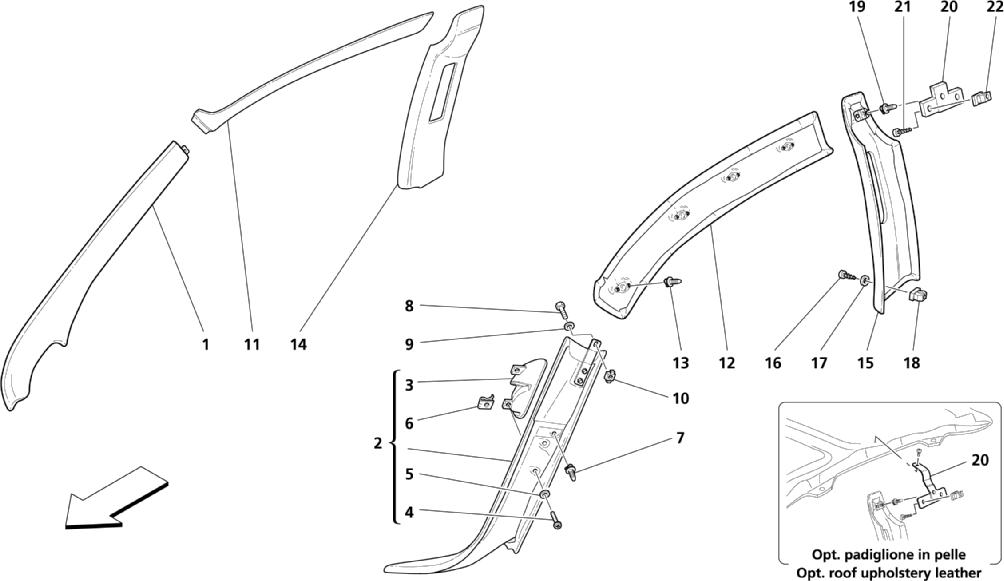

INNER COVERING - CENTRAL AND FRONT POST COVERING - SIDE RAIL COVER

Go to Split View

INNER COVERING - CENTRAL AND FRONT POST COVERING - SIDE RAIL COVER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9812102.. *Qty: 1 COMPLETE FRONT R.H.POST COVERING
- For order specify car number
Call
Location: 2 Prev | Next Part: 9812101.. *Qty: 1 COMPLETE FRONT L.H.POST COVERING
- For order specify car number
Call
Location: 3 Prev | Next Part: 388300607 *Qty: 1 L.H. AIR DIFFUSER Call
Location: 3 Prev | Next Part: 388300608 *Qty: 1 R.H. AIR DIFFUSER Call
Location: 4 Prev | Next Part: 15901401 *Qty: 4 SCREW $0.90
Location: 5 Prev | Next Part: 12639901 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 14368871 *Qty: 4 FIXING CLIP $3.46
Location: 7 Prev | Next Part: 14188181 *Qty: 2 RETAINER $0.90
Location: 8 Prev | Next Part: 10977724 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12620374 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 14647490 *Qty: 2 NUT WITH CAGE $0.90
Location: 11 Prev | Next Part: 9812104.. *Qty: 1 R.H. LATERAL SIDE RAIL COVER Call
Location: 12 Prev | Next Part: 9812103.. *Qty: 1 L.H. LATERAL SIDE RAIL COVER Call
Location: 13 Prev | Next Part: 14188181 *Qty: 8 RETAINER $0.90
Location: 14 Prev | Next Part: 9812106.. *Qty: 1 R.H. CENTRAL POST COVERING Call
Location: 15 Prev | Next Part: 9812105.. *Qty: 1 L.H. CENTRAL POST COVERING Call
Location: 16 Prev | Next Part: 12678707 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: 388300580 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 7622606 *Qty: 2 BLOCK $0.90
Location: 19 Prev | Next Part: 14188181 *Qty: 2 RETAINER $0.90
Location: 20 Prev | Next Part: 388300387 *Qty: 1 L.H. BRACKET
- Valid for cars with leather roof upholstery
$6.59
Location: 20 Prev | Next Part: 66669500 *Qty: 1 L.H. BRACKET
- Not for cars with leather roof upholstery
$4.39
Location: 20 Prev | Next Part: 388300388 *Qty: 1 R.H. BRACKET
- Valid for cars with leather roof upholstery
$6.59
Location: 20 Prev | Next Part: 66669400 *Qty: 1 R.H. BRACKET
- Not for cars with leather roof upholstery
$4.39
Location: 21 Prev | Next Part: 15784101 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: 14211686 *Qty: 4 BLOCK $0.90

* Quantity shown indicates the number of pieces used in the diagram.
