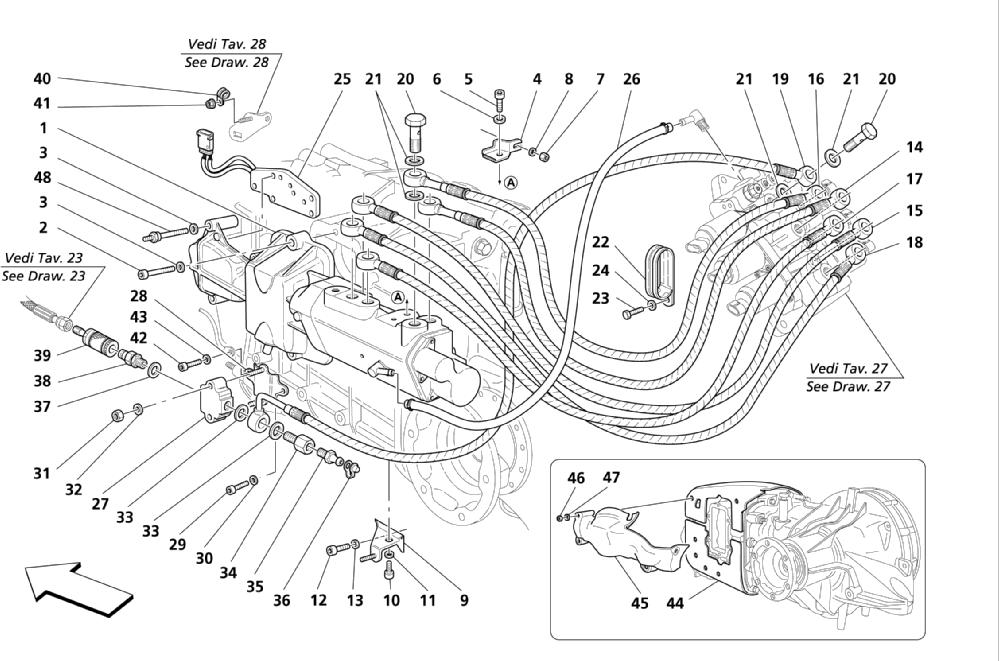

F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1

Go to Split View

F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 183064 *Qty: 1 COMPLETE ACTUATOR Superseded
Location: 2 Prev | Next Part: 14305624 *Qty: 4 SCREW
- Quantity 6 for cars withoutshield (pos. 45)
$0.90
Location: 2 Prev | Next Part: 14305524 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 4 Prev | Next Part: 186776 *Qty: 1 ACTUATOR SUPPORT UPPER BRACKET $9.09
Location: 5 Prev | Next Part: 14306224 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 12601374 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 14048215 *Qty: 1 NUT $1.81
Location: 8 Prev | Next Part: 14499424 *Qty: 1 WASHER Superseded
Location: 9 Prev | Next Part: 184213 *Qty: 1 ACTUATOR SUPPORT LOWER BRACKET
- Not for cars with shield (pos. 45)
$5.02
Location: 9 Prev | Next Part: 195445 *Qty: 1 ACTUATOR SUPPORT LOWER BRACKET
- Valid for cars with shield (pos. 45)
$8.46
Location: 10 Prev | Next Part: 14301924 *Qty: 1 SCREW $1.18
Location: 11 Prev | Next Part: 12601374 *Qty: 1 WASHER $0.90
Location: 12 Prev | Next Part: 14360024 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: 12601474 *Qty: 1 WASHER $0.90
Location: 14 Prev | Next Part: 185977 *Qty: 1 COMPLETE EV1 PIPE $822.09
Location: 15 Prev | Next Part: 185978 *Qty: 1 COMPLETE EV2 PIPE $748.50
Location: 16 Prev | Next Part: 185979 *Qty: 1 COMPLETE EV3 PIPE $822.09
Location: 17 Prev | Next Part: 185980 *Qty: 1 COMPLETE EV4 PIPE $748.50
Location: 18 Prev | Next Part: 185981 *Qty: 1 COMPLETE EV5 PIPE $748.50
Location: 19 Prev | Next Part: 186358 *Qty: 1 PIPE FROM POWER UNIT TO BLOCK $580.95
Location: 20 Prev | Next Part: 171454 *Qty: 11 UNION $12.35
Location: 21 Prev | Next Part: 10261060 *Qty: 22 GASKET $0.90
Location: 22 Prev | Next Part: 186299 *Qty: 1 CLAMP $29.71
Location: 23 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 24 Prev | Next Part: 12601279 *Qty: 1 WASHER Superseded
Location: 25 Prev | Next Part: 980001158 *Qty: 1 SENSORS KIT $988.91
Location: 26 Prev | Next Part: 980001161 *Qty: 1 RECYCLE PIPE KIT $229.26
Location: 27 Prev | Next Part: 175667 *Qty: 1 TWO-WAY BLOCK $43.60
Location: 28 Prev | Next Part: 185267 *Qty: 1 BLOCK SUPPORT BRACKET $8.79
Location: 29 Prev | Next Part: 14305124 *Qty: 2 SCREW $0.90
Location: 30 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 12601279 *Qty: 2 WASHER Superseded
Location: 33 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 34 Prev | Next Part: 171630 *Qty: 1 UNION $71.21
Location: 35 Prev | Next Part: 152954 *Qty: 1 BLEEDER SCREW $8.00
Location: 36 Prev | Next Part: 152955 *Qty: 1 BOOT $7.43
Location: 37 Prev | Next Part: 171755 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 70001184 *Qty: 1 MALE COUPLING Call
Location: 39 Prev | Next Part: 172964 *Qty: 1 FEMALE COUPLING Call
Location: 40 Prev | Next Part: 10441190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 41 Prev | Next Part: 14058411 *Qty: 1 NUT Superseded
Location: 42 Prev | Next Part: 14305124 *Qty: 1 SCREW $0.90
Location: 43 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 44 Prev | Next Part: 195159 *Qty: 1 SILENCER SHIELD $364.85
Location: 45 Prev | Next Part: 196900 *Qty: 1 SHIELD FOR ACTUATOR PROTECTION $122.14
Location: 46 Prev | Next Part: 14058411 *Qty: 3 NUT Superseded
Location: 47 Prev | Next Part: 12644478 *Qty: 3 WASHER $0.90
Location: 48 Prev | Next Part: 196286 *Qty: 2 STUD
- Valid for cars with shield (pos. 45)
$18.66

* Quantity shown indicates the number of pieces used in the diagram.
