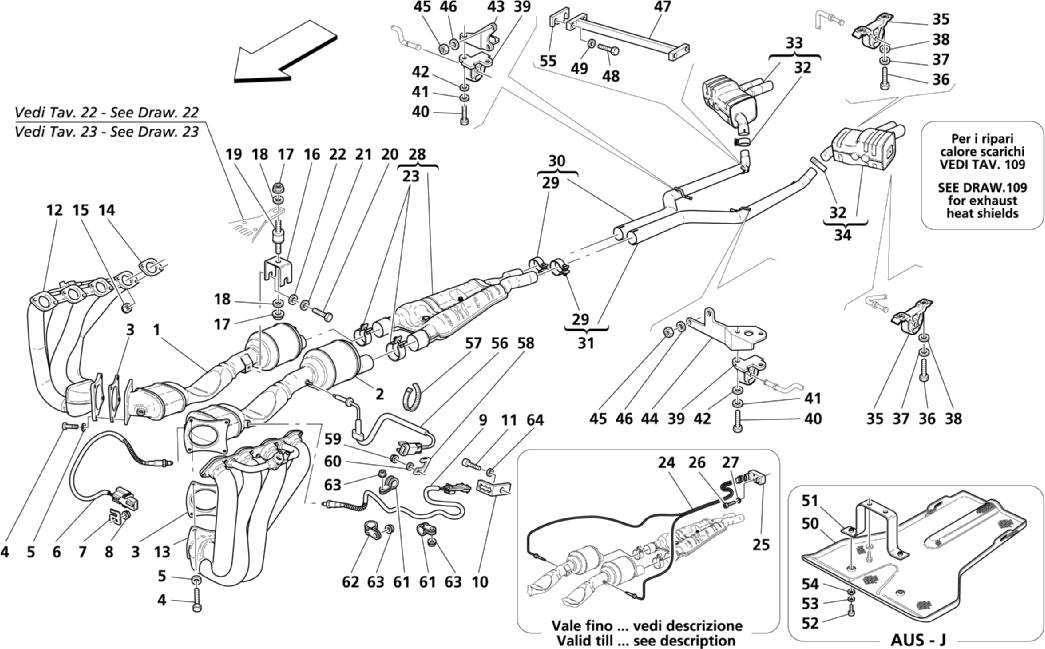

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194714 *Qty: 1 R.H. CATALYST
- Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
$3,906.05
Location: 1 Prev | Next Part: 184803 *Qty: 1 R.H. CATALYST
- Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
$4,087.28
Location: 2 Prev | Next Part: 184804 *Qty: 1 L.H. CATALYST
- Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
$3,638.54
Location: 2 Prev | Next Part: 194715 *Qty: 1 R.H. CATALYST
- Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
$4,111.62
Location: 3 Prev | Next Part: 184798 *Qty: 2 GASKET
- Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
$12.62
Location: 4 Prev | Next Part: 190213 *Qty: 8 SCREW $2.45
Location: 5 Prev | Next Part: 11193874 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 182837 *Qty: 2 FRONT LAMBDA FEELER $240.00
Location: 7 Prev | Next Part: 175856 *Qty: 2 CONNECTORS FIXING BRACKET $2.37
Location: 8 Prev | Next Part: 67190100 *Qty: 2 NUT Call
Location: 9 Prev | Next Part: 191412 *Qty: 2 REAR LAMBDA FEELER $336.72
Location: 10 Prev | Next Part: 178366 *Qty: 2 CONNECTORS FIXING BRACKET $17.10
Location: 11 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 183795 *Qty: 1 R.H. EXHAUST MANIFOLD $3,349.86
Location: 13 Prev | Next Part: 183796 *Qty: 1 L.H. EXHAUST MANIFOLD $3,349.86
Location: 14 Prev | Next Part: 182868 *Qty: 8 GASKET
- Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
$1.64
Location: 15 Prev | Next Part: 138392 *Qty: 16 NUT $1.41
Location: 16 Prev | Next Part: 187827 *Qty: 1 BRACKET FOR CATALYSTS FIXING $15.18
Location: 17 Prev | Next Part: 195273 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 12625221 *Qty: 2 WASHER Superseded
Location: 19 Prev | Next Part: 184333 *Qty: 1 PAD $18.69
Location: 20 Prev | Next Part: 16043324 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 12625224 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 185307 *Qty: 2 CLAMP $17.57
Location: 24 Prev | Next Part: 184926 *Qty: 1 THERMOCOUPLES SET
- Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
$367.01
Location: 25 Prev | Next Part: 187866 *Qty: 1 CATALYSTS CONTROL STATION
- Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
$417.60
Location: 26 Prev | Next Part: 15958407 *Qty: 2 SCREW
- Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
$0.90
Location: 27 Prev | Next Part: 10519304 *Qty: 2 WASHER
- Valid for GS till car Ass. Nr. 9679 - Valid for GD till car Ass. Nr. 9695
$0.90
Location: 28 Prev | Next Part: 187826 *Qty: 1 CENTRAL SILENCER $2,467.47
Location: 29 Prev | Next Part: 185307 *Qty: 2 CLAMP $17.57
Location: 30 Prev | Next Part: 187823 *Qty: 1 R.H. EXHAUST EXTENSION $980.25
Location: 31 Prev | Next Part: 187824 *Qty: 1 L.H. EXHAUST EXTENSION $980.25
Location: 32 Prev | Next Part: 185307 *Qty: 2 CLAMP $17.57
Location: 33 Prev | Next Part: 184815 *Qty: 1 R.H. REAR SILENCER $2,942.74
Location: 34 Prev | Next Part: 184816 *Qty: 1 L.H. REAR SILENCER $2,942.74
Location: 35 Prev | Next Part: 184814 *Qty: 4 REAR SUPPORT $52.83
Location: 36 Prev | Next Part: 16043224 *Qty: 8 SCREW $0.90
Location: 37 Prev | Next Part: 12601374 *Qty: 8 WASHER $0.90
Location: 38 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 39 Prev | Next Part: 187861 *Qty: 2 ANTI-VIBRATION SUPPORT $29.01
Location: 40 Prev | Next Part: 16043424 *Qty: 4 SCREW $0.90
Location: 41 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 43 Prev | Next Part: 187775 *Qty: 1 R.H. SUPPORT $17.87
Location: 44 Prev | Next Part: 187774 *Qty: 1 L.H. SUPPORT $24.30
Location: 45 Prev | Next Part: 16100814 *Qty: 4 NUT $0.90
Location: 46 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: 187836 *Qty: 1 SPACER BAR $22.78
Location: 48 Prev | Next Part: 16043124 *Qty: 4 SCREW $0.90
Location: 49 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 50 Prev | Next Part: 190270 *Qty: 1 UNDER EXHAUST SHIELD
- Valid for J and AUS and cars GB opt. japan version
$279.98
Location: 51 Prev | Next Part: 190271 *Qty: 1 BRACKET
- Valid for J and AUS and cars GB opt. japan version
$43.88
Location: 52 Prev | Next Part: 14305724 *Qty: 2 SCREW
- Valid for J and AUS and cars GB opt. japan version
$0.90
Location: 53 Prev | Next Part: 12639724 *Qty: 2 WASHER
- Valid for J and AUS and cars GB opt. japan version
$0.90
Location: 54 Prev | Next Part: 12601274 *Qty: 2 WASHER
- Valid for J and AUS and cars GB opt. japan version
$0.90
Location: 55 Prev | Next Part: 193098 *Qty: 4 SPACER BAR THICKNESS $3.04
Location: 56 Prev | Next Part: 194744 *Qty: 2 THERMOCOUPLE
- Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
$235.53
Location: 57 Prev | Next Part: 312020382 *Qty: 2 CLAMP
- Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
$0.90
Location: 58 Prev | Next Part: 155751 *Qty: 2 CLIP
- Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
$5.57
Location: 59 Prev | Next Part: 14059111 *Qty: 2 NUT
- Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
$0.90
Location: 60 Prev | Next Part: 12644424 *Qty: 2 WASHER
- Valid for GS from car Ass. Nr. 9680 - Valid for GD from car Ass. Nr. 9696
$0.90
Location: 61 Prev | Next Part: 67190200 *Qty: 6 BRACKET WITH SHEATH Call
Location: 62 Prev | Next Part: 10441290 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 63 Prev | Next Part: 67190100 *Qty: 8 NUT Call
Location: 64 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
