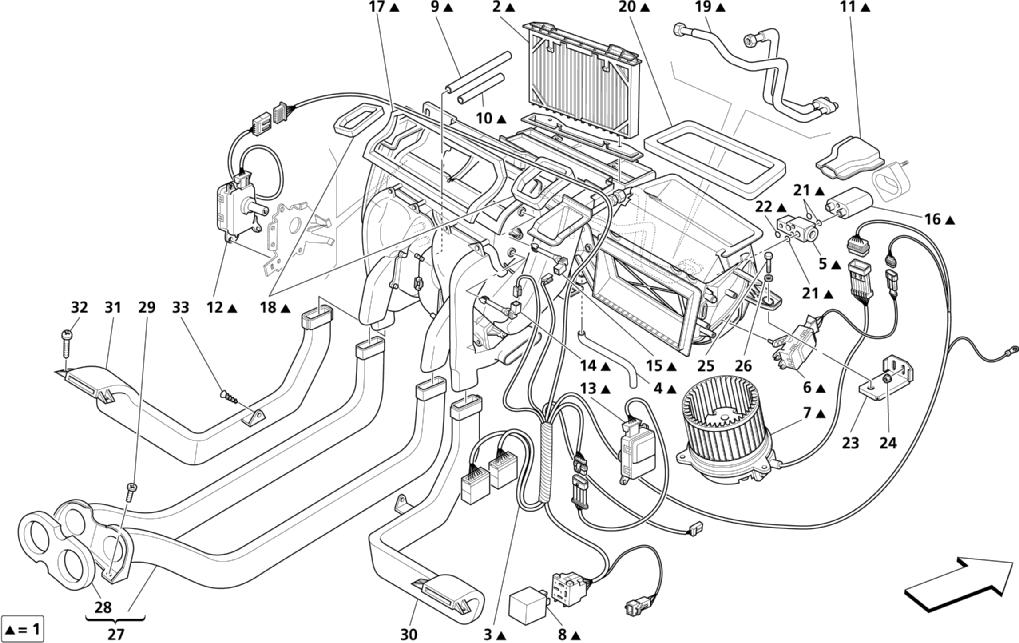

EVAPORATOR GROUP

Go to Split View

EVAPORATOR GROUP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66731300 *Qty: 1 COMPLETE EVAPORATOR SET
- Valid for GD
Call
Location: 1 Prev | Next Part: 66306100 *Qty: 1 COMPLETE EVAPORATOR SET
- Not for GD
Call
Location: 2 Prev | Next Part: 382400304 *Qty: 1 ANTIPOLLEN FILTER $102.44
Location: 3 Prev | Next Part: 980001200 *Qty: 1 RELAY COMPLETE CABLE
- Valid for GD
$208.26
Location: 3 Prev | Next Part: 980001125 *Qty: 1 RELAY COMPLETE CABLE
- Not for GD
$181.64
Location: 4 Prev | Next Part: 980000979 *Qty: 1 EXAUST PIPE $3.29
Location: 5 Prev | Next Part: 375530166 *Qty: 1 EXPANSION VALVLE $289.69
Location: 6 Prev | Next Part: 980000975 *Qty: 1 RICIRCLE ACTUATOR $84.01
Location: 7 Prev | Next Part: 980010980 *Qty: 1 ELECTROFAN Call
Location: 8 Prev | Next Part: 46451295 *Qty: 1 RELAY $53.24
Location: 9 Prev | Next Part: 385500479 *Qty: 1 WATER INLET DUCT
- Not for GD
$25.05
Location: 9 Prev | Next Part: 385510479 *Qty: 1 WATER INLET DUCT
- Valid for GD
$23.49
Location: 10 Prev | Next Part: 385510481 *Qty: 1 WATER OUTLET DUCT
- Valid for GD
$25.05
Location: 10 Prev | Next Part: 385500481 *Qty: 1 WATER OUTLET DUCT
- Not for GD
$25.05
Location: 11 Prev | Next Part: 980000984 *Qty: 1 FREON VALVLE GASKET $6.37
Location: 12 Prev | Next Part: 980000974 *Qty: 1 ACTUATOR $120.57
Location: 13 Prev | Next Part: 980000999 *Qty: 1 ACTUATOR $86.95
Location: 14 Prev | Next Part: 980000977 *Qty: 1 TT2 AIR SENSOR $21.38
Location: 15 Prev | Next Part: 980000976 *Qty: 1 TT1 AIR SENSOR $21.38
Location: 16 Prev | Next Part: 980001126 *Qty: 1 FLANGE FOR VALVLE $42.28
Location: 17 Prev | Next Part: 385500501 *Qty: 1 GASKET $1.78
Location: 18 Prev | Next Part: 385500502 *Qty: 2 GASKET $3.41
Location: 19 Prev | Next Part: 980001127 *Qty: 1 FREON PIPES
- Not for GD
$105.71
Location: 19 Prev | Next Part: 980001201 *Qty: 1 FREON PIPES
- Valid for GD
$146.42
Location: 20 Prev | Next Part: 385500503 *Qty: 1 UPPER GASKET FOR ADAPTATOR $3.41
Location: 21 Prev | Next Part: 375500458 *Qty: 3 RUBBER $5.53
Location: 22 Prev | Next Part: 375500457 *Qty: 1 RUBBER $3.19
Location: 23 Prev | Next Part: 66412200 *Qty: 1 BRACKET $54.81
Location: 24 Prev | Next Part: 14059214 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 16043124 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 12646724 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 66661700 *Qty: 1 COMPLETE CENTRAL AIR DUCTING $248.98
Location: 28 Prev | Next Part: 382300375 *Qty: 1 AIR OPENING GASKET $1.93
Location: 29 Prev | Next Part: 14778010 *Qty: 2 SCREW $0.90
Location: 30 Prev | Next Part: 382300466 *Qty: 1 R.H. LATERAL AIR DUCTING $79.09
Location: 31 Prev | Next Part: 382300467 *Qty: 1 L.H. LATERAL AIR DUCTING $79.09
Location: 32 Prev | Next Part: 15530107 *Qty: 4 SCREW $1.94
Location: 33 Prev | Next Part: 15917217 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
