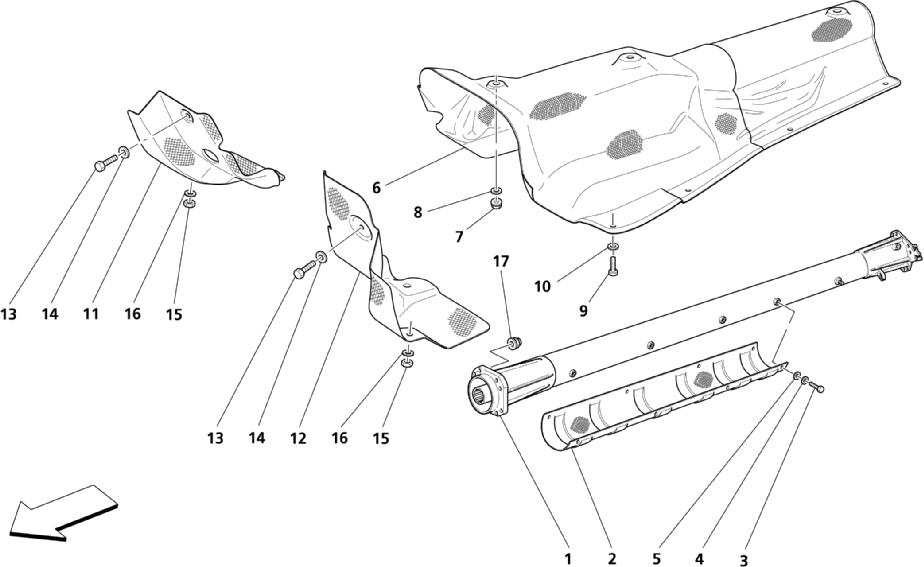

ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS

Go to Split View

ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS

Location Part # Quantity* Description Price Add To Cart
1 193023 1 COMPLETEENGINE-TRANSMISSION CONNECTION TUBE
- Not for F1 		$5,667.76
1 187159 1 COMPLETEENGINE-TRANSMISSION CONNECTION TUBE
- Valid for F1 		$6,763.96
2 185559 1 ANTI-HEAT SHIELD $73.51
3 11635724 8 SCREW Unavailable
4 12601274 8 WASHER $0.90
5 12644424 8 WASHER $0.90
6 66065500 1 TUNNEL HEAT SHIELD $301.96
7 14059111 3 NUT Unavailable
8 12624124 3 WASHER $1.68
9 10977824 8 SCREW $2.42
10 12624124 8 WASHER $1.68
11 66584200 1 R.H. SHIELD $55.22
12 66582900 1 L.H. SHIELD $55.22
13 10977824 4 SCREW $2.42
14 12624124 4 WASHER $1.68
15 13831811 2 NUT Unavailable
16 12624124 2 WASHER $1.68
17 156462 8 NUT $1.17

* Quantity shown indicates the number of pieces used in the diagram.
