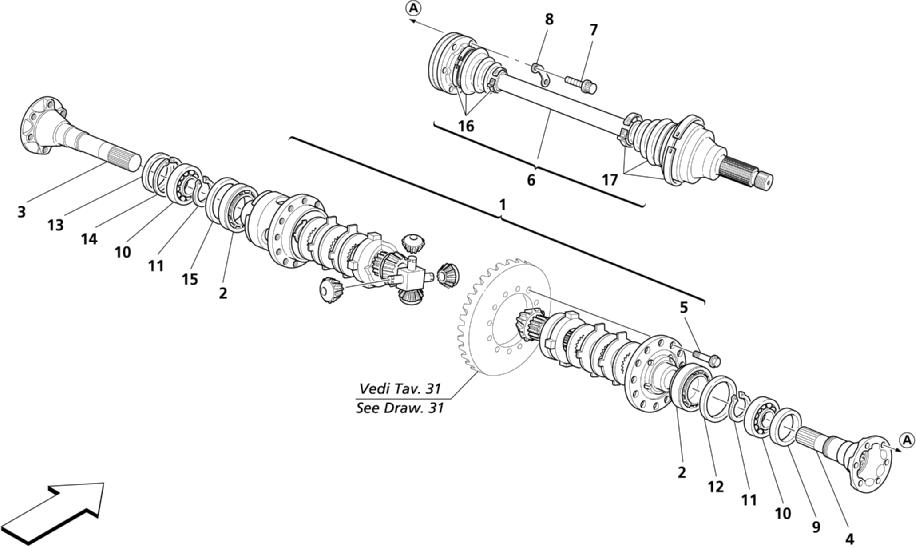

DIFFERENTIAL AND AXLE SHAFT

Go to Split View

DIFFERENTIAL AND AXLE SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 192735 *Qty: 1 COMPLETE SELF-LOCKING DIFFERENTIAL $2,835.18
Location: 2 Prev | Next Part: 184998 *Qty: 2 ROLLER BEARING $114.13
Location: 3 Prev | Next Part: 185014 *Qty: 1 L.H. LONG DIFFERENTIAL OUTLET SHAFT Superseded
Location: 4 Prev | Next Part: 182322 *Qty: 1 R.H. SHORT DIFFERENTIAL OUTLET SHAFT Superseded
Location: 5 Prev | Next Part: 183909 *Qty: 12 SCREW $8.45
Location: 6 Prev | Next Part: 184540 *Qty: 2 AXLE SHAFT $1,061.95
Location: 7 Prev | Next Part: 181910 *Qty: 12 SCREW Superseded
Location: 8 Prev | Next Part: 149415 *Qty: 6 PLATE $2.53
Location: 9 Prev | Next Part: 181618 *Qty: 1 R.H. OIL RING $58.20
Location: 10 Prev | Next Part: 184995 *Qty: 2 BALL BEARING $85.82
Location: 11 Prev | Next Part: 184994 *Qty: 2 Seeger Ring $3.39
Location: 12 Prev | Next Part: 185026 *Qty: 1 REGISTER RING
- Thickness mm. 6,8
$58.60
Location: 12 Prev | Next Part: 185027 *Qty: 1 REGISTER RING
- Thickness mm. 6,4
$67.63
Location: 12 Prev | Next Part: 185028 *Qty: 1 REGISTER RING
- Thickness mm. 6
$67.63
Location: 13 Prev | Next Part: 185722 *Qty: 1 L.H.OIL RING $48.54
Location: 14 Prev | Next Part: 185723 *Qty: 1 Seeger Ring $5.65
Location: 15 Prev | Next Part: 185029 *Qty: 1 REGISTER RING
- Thickness mm. 3,30
$54.08
Location: 15 Prev | Next Part: 185033 *Qty: 1 REGISTER RING
- Thickness mm. 2,95
$54.08
Location: 15 Prev | Next Part: 185034 *Qty: 1 REGISTER RING
- Thickness mm. 2,60
$54.08
Location: 16 Prev | Next Part: 70000867 *Qty: 2 CLAMP AND PROTECTION REPLACEMENT SET
- Differential side
Superseded
Location: 17 Prev | Next Part: 70000868 *Qty: 2 CLAMP AND PROTECTION REPLACEMENT SET
- Wheel side
$136.79

* Quantity shown indicates the number of pieces used in the diagram.
