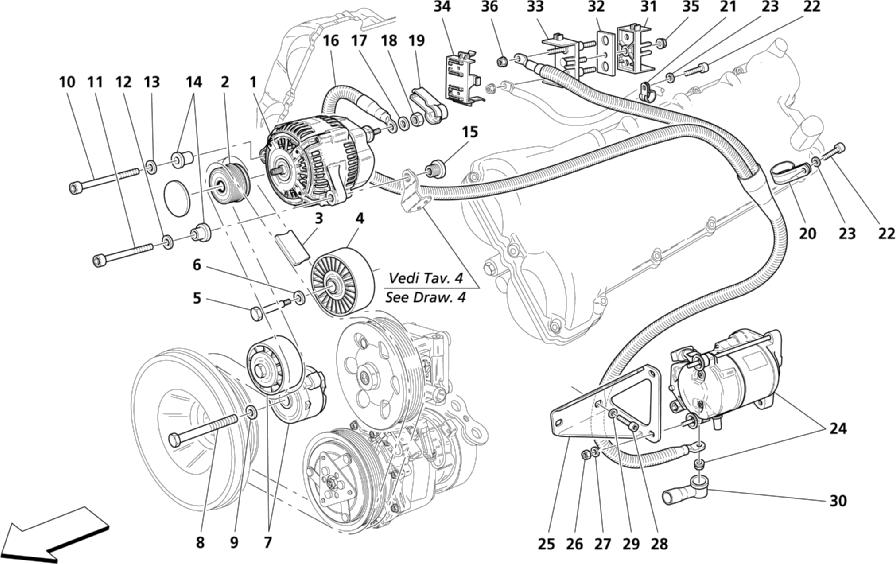

CURRENT GENERATOR-STARTING MOTOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 179546 *Qty: 1 ALTERNATOR $782.58
Location: 2 Prev | Next Part: 187474 *Qty: 1 PULLEY $1,129.01
Location: 3 Prev | Next Part: 175446 *Qty: 1 COMPRESSOR CONTROL BELT Call
Location: 4 Prev | Next Part: 172537 *Qty: 1 BELT TIGHTENING PULLEY $119.54
Location: 5 Prev | Next Part: 11234724 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 11190574 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 175436 *Qty: 1 BELT TIGHTENING Superseded
Location: 8 Prev | Next Part: 16044431 *Qty: 1 SCREW $0.90
Location: 9 Prev | Next Part: 11193874 *Qty: 1 WASHER $0.90
Location: 10 Prev | Next Part: 14308724 *Qty: 1 SCREW $4.83
Location: 11 Prev | Next Part: 14308224 *Qty: 1 SCREW $1.47
Location: 12 Prev | Next Part: 10569474 *Qty: 1 WASHER $0.90
Location: 13 Prev | Next Part: 11190574 *Qty: 1 WASHER $0.90
Location: 14 Prev | Next Part: 164467 *Qty: 2 BUSHING $32.01
Location: 15 Prev | Next Part: 187143 *Qty: 1 THREADED BUSHING $6.16
Location: 16 Prev | Next Part: 184946 *Qty: 1 CABLE FROM ALTERNATOR TO STARTER MOTOR
- Not for GD
$121.37
Location: 16 Prev | Next Part: 190320 *Qty: 1 CABLE FROM ALTERNATOR TO STARTER MOTOR
- Valid for GD
$97.09
Location: 17 Prev | Next Part: 12601374 *Qty: 1 WASHER $0.90
Location: 18 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 19 Prev | Next Part: 154803 *Qty: 1 PROTECTION BOOT $6.50
Location: 20 Prev | Next Part: 10442190 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 21 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 22 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 24 Prev | Next Part: 180169 *Qty: 1 STARTER MOTOR $620.10
Location: 25 Prev | Next Part: 184112 *Qty: 1 STARTER MOTOR SUPPORTING BRACKET $45.37
Location: 26 Prev | Next Part: 160472 *Qty: 2 NUT $3.09
Location: 27 Prev | Next Part: 61148700 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 30 Prev | Next Part: 124683 *Qty: 1 PROTECTION BOOT $1.25
Location: 31 Prev | Next Part: 60510161 *Qty: 1 INSERT $2.36
Location: 32 Prev | Next Part: 393050343 *Qty: 1 GASKET $1.57
Location: 33 Prev | Next Part: 60510160 *Qty: 1 INSERT $14.89
Location: 34 Prev | Next Part: 60616507 *Qty: 2 COVER $2.66
Location: 35 Prev | Next Part: 14084211 *Qty: 1 NUT $0.90
Location: 36 Prev | Next Part: 14059311 *Qty: 1 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
