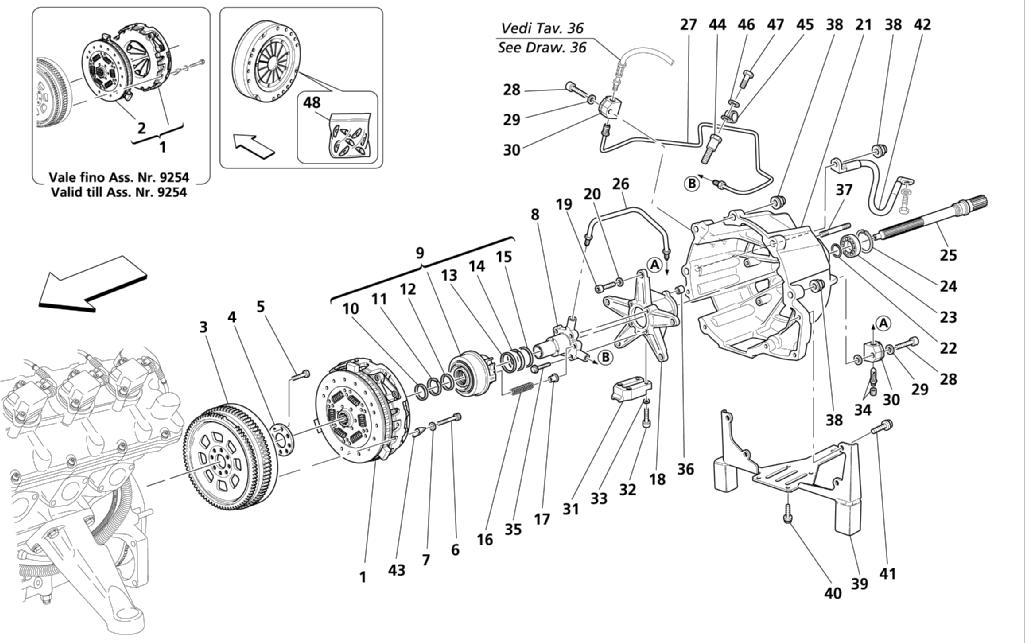

CLUTCH AND CONTROLS -NOT FOR F1

Go to Split View

CLUTCH AND CONTROLS -NOT FOR F1

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 196021 *Qty: 1 COMPLETE CLUTCH
- Valid from car Ass. Nr. 9255
$1,783.27
Location: 1 Prev | Next Part: 191998 *Qty: 1 COMPLETE CLUTCH
- Valid till car Ass. Nr. 9254
Superseded
Location: 2 Prev | Next Part: 188376 *Qty: 1 CLUTCH DOUBLE DISC
- Valid till car Ass. Nr. 9254
Call
Location: 3 Prev | Next Part: 230426 *Qty: 1 COMPLETE ENGINE FLYWHEEL $559.35
Location: 4 Prev | Next Part: 103876 *Qty: 1 FLYWHEEL FIXING WASHER $12.92
Location: 5 Prev | Next Part: 103875 *Qty: 8 SCREW Superseded
Location: 6 Prev | Next Part: 185206 *Qty: 9 SCREW $2.89
Location: 7 Prev | Next Part: 11194377 *Qty: 9 WASHER $0.90
Location: 8 Prev | Next Part: 182952 *Qty: 1 BEARING SUPPORTING FLANGE $1,230.49
Location: 9 Prev | Next Part: 171886 *Qty: 1 COMPLETE THRUST BEARING Superseded
Location: 10 Prev | Next Part: 172970 *Qty: 1 SCRAPER RING $24.26
Location: 11 Prev | Next Part: 181839 *Qty: 1 RING Superseded
Location: 12 Prev | Next Part: 172972 *Qty: 1 SEAL RING $24.26
Location: 13 Prev | Next Part: 154508 *Qty: 1 SEAL RING $42.81
Location: 14 Prev | Next Part: 181829 *Qty: 1 RING Superseded
Location: 15 Prev | Next Part: 154551 *Qty: 1 SCRAPER RING $29.37
Location: 16 Prev | Next Part: 155207 *Qty: 2 PRELOAD SPRING $11.47
Location: 17 Prev | Next Part: 155206 *Qty: 2 SPACER FOR SPRING $4.04
Location: 18 Prev | Next Part: 184970 *Qty: 1 CLUTCH CONTROL FLANGE SUPPORT $815.00
Location: 19 Prev | Next Part: 14305334 *Qty: 5 SCREW $0.90
Location: 20 Prev | Next Part: 12604274 *Qty: 5 WASHER $0.90
Location: 21 Prev | Next Part: 184763 *Qty: 1 CLUTCH HOUSING $3,109.68
Location: 22 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.27
Location: 23 Prev | Next Part: 174470 *Qty: 1 BEARING $55.72
Location: 24 Prev | Next Part: 182963 *Qty: 1 STOP RING $4.36
Location: 25 Prev | Next Part: 182587 *Qty: 1 CLUTCH SHAFT $275.60
Location: 26 Prev | Next Part: 182584 *Qty: 1 CLUTCH OIL BLEED PIPE $17.22
Location: 27 Prev | Next Part: 182583 *Qty: 1 CLUTCH OIL DELIVERY TUBE $46.98
Location: 28 Prev | Next Part: 14305434 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 12604274 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 139471 *Qty: 2 TWO-WAY UNION $44.33
Location: 31 Prev | Next Part: 184900 *Qty: 1 F1 SENSOR SUPPORT $407.13
Location: 32 Prev | Next Part: 14304424 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 10519378 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 121699 *Qty: 1 BLEEDER SCREW $3.07
Location: 35 Prev | Next Part: 16286224 *Qty: 4 SCREW $3.34
Location: 36 Prev | Next Part: 102725 *Qty: 2 CENTERING DOWEL $1.14
Location: 37 Prev | Next Part: 13546334 *Qty: 8 STUD $1.53
Location: 38 Prev | Next Part: 156462 *Qty: 7 NUT $1.17
Location: 39 Prev | Next Part: 191399 *Qty: 1 EXHAUST FRONT SUPPORT
- Valid for USA, CDN, J, AUS and cars GB opt. japan version
$200.43
Location: 39 Prev | Next Part: 187799 *Qty: 1 EXHAUST FRONT SUPPORT
- Not for USA, CDN, J, AUS and cars GB opt. japan version
$192.60
Location: 40 Prev | Next Part: 11730624 *Qty: 4 SCREW $0.90
Location: 41 Prev | Next Part: 16297721 *Qty: 2 SCREW $3.05
Location: 41 Prev | Next Part: 16288121 *Qty: 1 SCREW $3.19
Location: 42 Prev | Next Part: 182225 *Qty: 1 CABLE FOR ENGINE-FRAME EARTH $42.46
Location: 43 Prev | Next Part: 191335 *Qty: 1 BALANCING MASS
- Grams 7 - As necessary
$28.75
Location: 43 Prev | Next Part: 191334 *Qty: 1 BALANCING MASS
- Grams 6 - As necessary
$24.33
Location: 43 Prev | Next Part: 191346 *Qty: 1 BALANCING MASS
- Grams 18 - As necessary
$15.48
Location: 43 Prev | Next Part: 191345 *Qty: 1 BALANCING MASS
- Grams 17 - As necessary
$15.48
Location: 43 Prev | Next Part: 191338 *Qty: 1 BALANCING MASS
- Grams 10 - As necessary
$12.54
Location: 43 Prev | Next Part: 191339 *Qty: 1 BALANCING MASS
- Grams 11 - As necessary
$12.54
Location: 43 Prev | Next Part: 191333 *Qty: 1 BALANCING MASS
- Grams 5 - As necessary
$12.17
Location: 43 Prev | Next Part: 191344 *Qty: 1 BALANCING MASS
- Grams 16 - As necessary
$131.91
Location: 43 Prev | Next Part: 191342 *Qty: 1 BALANCING MASS
- Grams 14 - As necessary
$131.91
Location: 43 Prev | Next Part: 191341 *Qty: 1 BALANCING MASS
- Grams 13 - As necessary
$12.90
Location: 43 Prev | Next Part: 191340 *Qty: 1 BALANCING MASS
- Grams 12 - As necessary
$12.54
Location: 43 Prev | Next Part: 191395 *Qty: 1 BALANCING MASS
- Grams 20 - As necessary
$131.91
Location: 43 Prev | Next Part: 191347 *Qty: 1 BALANCING MASS
- Grams 19 - As necessary
$12.54
Location: 43 Prev | Next Part: 191343 *Qty: 1 BALANCING MASS
- Grams 15 - As necessary
$12.90
Location: 43 Prev | Next Part: 191331 *Qty: 1 BALANCING MASS
- Grams 4 - As necessary
$44.21
Location: 43 Prev | Next Part: 191330 *Qty: 1 BALANCING MASS
- Grams 2 - As necessary
$49.38
Location: 43 Prev | Next Part: 191329 *Qty: 1 BALANCING MASS
- Grams 1 - As necessary
$36.84
Location: 43 Prev | Next Part: 191337 *Qty: 1 BALANCING MASS
- Grams 9 - As necessary
$53.80
Location: 43 Prev | Next Part: 191336 *Qty: 1 BALANCING MASS
- Grams 8 - As necessary
$68.54
Location: 44 Prev | Next Part: 190876 *Qty: 1 STUD $17.96
Location: 45 Prev | Next Part: 10441190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 46 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 47 Prev | Next Part: 10979414 *Qty: 1 SCREW $0.90
Location: 48 Prev | Next Part: 980001166 *Qty: 1 CLUTCH BALANCING KIT $2,844.40

* Quantity shown indicates the number of pieces used in the diagram.
