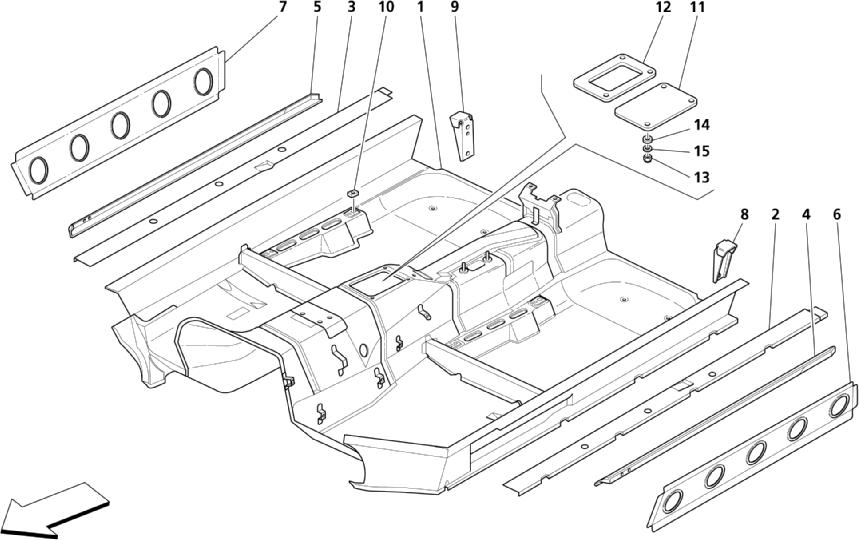

CENTRAL STRUCTURE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980138001 *Qty: 1 COMPLETE CENTRAL FLOOR $5,146.92
Location: 2 Prev | Next Part: 66133900 *Qty: 1 L.H. UNDERDOOR LOWER LONGITUDINAL MEMBER $31.37
Location: 3 Prev | Next Part: 66133800 *Qty: 1 R.H. UNDERDOOR LOWER LONGITUDINAL MEMBER $27.15
Location: 4 Prev | Next Part: 381300425 *Qty: 1 L.H. LATERAL FRONT FLOOR ASSEMBLY $31.75
Location: 5 Prev | Next Part: 381300426 *Qty: 1 R.H. LATERAL FRONT FLOOR ASSEMBLY $31.75
Location: 6 Prev | Next Part: 66427500 *Qty: 1 L.H. LONGITUDINAL FRONT MEMBER $29.51
Location: 7 Prev | Next Part: 66427400 *Qty: 1 R.H. LONGITUDINAL FRONT MEMBER $91.87
Location: 8 Prev | Next Part: 66666300 *Qty: 1 L.H. BRACKET FOR SIDE-BAG SENSOR SUPPORTING $41.81
Location: 9 Prev | Next Part: 66666200 *Qty: 1 R.H. BRACKET FOR SIDE-BAG SENSOR SUPPORTING $41.81
Location: 10 Prev | Next Part: 66422200 *Qty: 8 NUT $7.89
Location: 11 Prev | Next Part: 66423900 *Qty: 1 PLATE FOR GEAR CONTROL TONER
- Valid for F1
$5.48
Location: 12 Prev | Next Part: 66424000 *Qty: 1 PLATE GASKET
- Valid for F1
$3.85
Location: 13 Prev | Next Part: 16100814 *Qty: 3 NUT
- Valid for F1
$0.90
Location: 14 Prev | Next Part: 12625224 *Qty: 3 WASHER
- Valid for F1
$0.90
Location: 15 Prev | Next Part: 12601374 *Qty: 3 WASHER
- Valid for F1
$0.90

* Quantity shown indicates the number of pieces used in the diagram.
