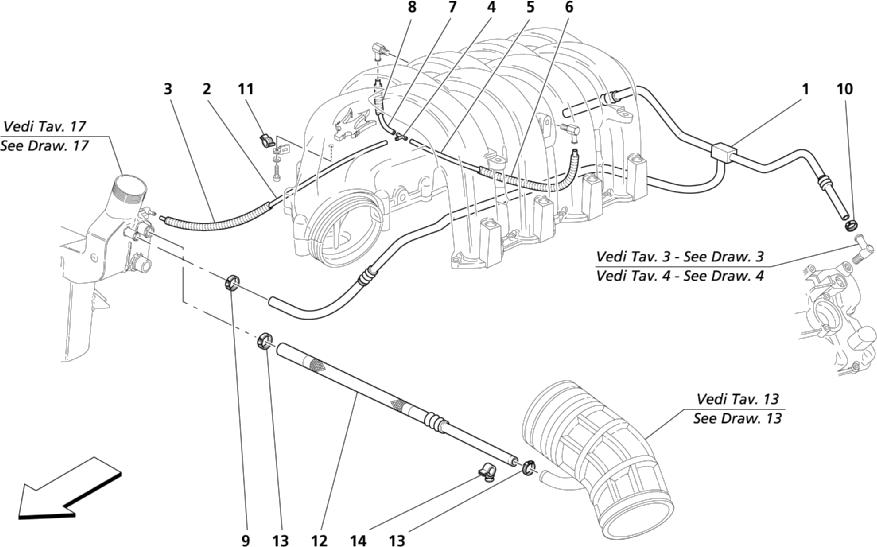

BLOW - BY SYSTEM

Go to Split View

BLOW - BY SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 190120 *Qty: 1 HEAD COVERS VENT PIPE $176.15
Location: 1 Prev | Next Part: 198346 *Qty: 1 HEAD COVERS VENT PIPE
- As an alternative
$117.00
Location: 2 Prev | Next Part: 169700 *Qty: 1 RUBBER HOSE
- Supplied in meters - (Minimum quantity 1m. or multiples)
$7.85
Location: 3 Prev | Next Part: 97218 *Qty: 1 PIPE $4.75
Location: 4 Prev | Next Part: 146972 *Qty: 1 3-WAY UNION $102.07
Location: 5 Prev | Next Part: 194323 *Qty: 1 RUBBER HOSE
- Supplied in meters - (Minimum quantity 1m. or multiples)
$13.53
Location: 6 Prev | Next Part: 97218 *Qty: 1 PIPE $4.75
Location: 7 Prev | Next Part: 165608 *Qty: 1 RUBBER HOSE
- Supplied in meters - (Minimum quantity 1m. or multiples)
$2.74
Location: 8 Prev | Next Part: 97218 *Qty: 1 PIPE $4.75
Location: 9 Prev | Next Part: 177996 *Qty: 1 CLAMP $2.94
Location: 10 Prev | Next Part: 178052 *Qty: 2 CLAMP $1.58
Location: 11 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH
- Not for cars with bracket 191009 - (See draw 13 pos. 25)
$0.90
Location: 11 Prev | Next Part: 191273 *Qty: 1 CLIP
- Valid for cars with bracket 191009 - (See draw 13 pos. 25)
$0.90
Location: 12 Prev | Next Part: 184216 *Qty: 1 VENT PIPE $44.36
Location: 13 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR Call
Location: 14 Prev | Next Part: 187694 *Qty: 1 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
