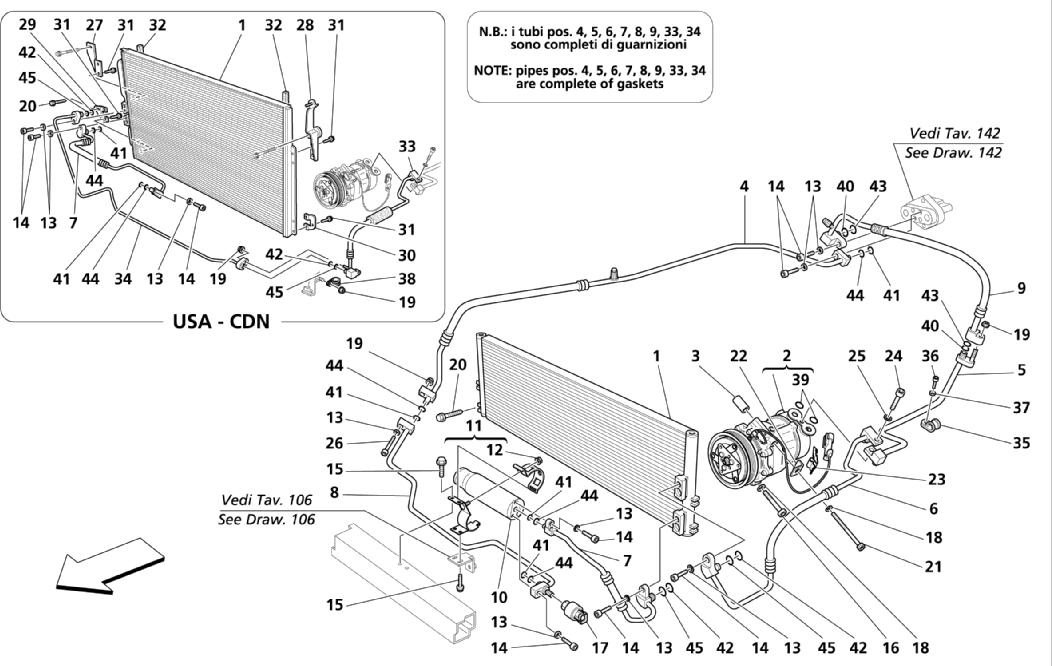

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 181106 *Qty: 1 A.C. CONDENSER
- Not for USA and CDN
$585.23
Location: 1 Prev | Next Part: 193547 *Qty: 1 A.C. CONDENSER
- Valid for USA and CDN
Call
Location: 2 Prev | Next Part: 183309 *Qty: 1 AIR CONDITIONING COMPRESSOR $1,713.51
Location: 3 Prev | Next Part: 141496 *Qty: 1 SPACER $3.71
Location: 4 Prev | Next Part: 66244200 *Qty: 1 PIPE FROM UNION TO EVAPORATOR
- Not for GD
$144.06
Location: 4 Prev | Next Part: 66765700 *Qty: 1 PIPE FROM UNION TO EVAPORATOR
- Valid for GD
$274.03
Location: 5 Prev | Next Part: 67028000 *Qty: 1 PIPE FROM UNION TO COMPRESSOR $169.12
Location: 6 Prev | Next Part: 66707600 *Qty: 1 PIPE FROM COMPRESSOR TO CONDENSER
- Not for USA and CDN
$208.26
Location: 7 Prev | Next Part: 67193700 *Qty: 1 PIPE FROM CONDENSER TO FILTER
- Valid for USA and CDN
$139.36
Location: 7 Prev | Next Part: 66063100 *Qty: 1 PIPE FROM CONDENSER TO FILTER
- Not for USA and CDN
$195.74
Location: 8 Prev | Next Part: 66765800 *Qty: 1 PIPE FROM FILTER TO UNION
- Valid for GD
$104.91
Location: 8 Prev | Next Part: 66063200 *Qty: 1 PIPE FROM FILTER TO UNION
- Not for GD
$112.74
Location: 9 Prev | Next Part: 66063300 *Qty: 1 PIPE FROM EVAPORATOR TO UNION
- Not for GD
$150.33
Location: 9 Prev | Next Part: 66722700 *Qty: 1 PIPE FROM EVAPORATOR TO UNION
- Valid for GD
$194.17
Location: 10 Prev | Next Part: 67110900 *Qty: 1 DEHYDRATING FILTER $139.28
Location: 11 Prev | Next Part: 66247100 *Qty: 1 COMPLETE DEHYDRATING FILTER SUPPORT BRACKET $19.58
Location: 12 Prev | Next Part: 14075721 *Qty: 1 NUT $1.99
Location: 13 Prev | Next Part: 12601274 *Qty: 7 WASHER $0.90
Location: 14 Prev | Next Part: 14305424 *Qty: 6 SCREW Superseded
Location: 15 Prev | Next Part: 11612626 *Qty: 4 SCREW $3.81
Location: 16 Prev | Next Part: 14307124 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: 46476438 *Qty: 1 PRESSOSTAT $106.29
Location: 18 Prev | Next Part: 11193874 *Qty: 3 WASHER $0.90
Location: 19 Prev | Next Part: 14059214 *Qty: 2 NUT
- (Quantity 3 for cars USA and CDN)
$0.90
Location: 20 Prev | Next Part: 15699804 *Qty: 2 SCREW
- Valid for USA and CDN
$0.90
Location: 20 Prev | Next Part: 15698204 *Qty: 4 SCREW
- Not for USA and CDN
Call
Location: 21 Prev | Next Part: 175428 *Qty: 1 SCREW $2.47
Location: 22 Prev | Next Part: 185556 *Qty: 1 CABLES FIXING BRACKET $1.83
Location: 23 Prev | Next Part: 155978 *Qty: 1 CLIP $0.90
Location: 24 Prev | Next Part: 14307721 *Qty: 1 SCREW $3.12
Location: 25 Prev | Next Part: 11198579 *Qty: 1 WASHER $9.05
Location: 26 Prev | Next Part: 14305821 *Qty: 1 SCREW $0.90
Location: 27 Prev | Next Part: 193551 *Qty: 1 R.H. UPPER BRACKET
- Valid for USA and CDN
$5.94
Location: 28 Prev | Next Part: 193552 *Qty: 1 L.H. UPPER BRACKET
- Valid for USA and CDN
$22.03
Location: 29 Prev | Next Part: 193553 *Qty: 1 R.H. LOWER BRACKET
- Valid for USA and CDN
$4.71
Location: 30 Prev | Next Part: 193554 *Qty: 1 L.H. LOWER BRACKET
- Valid for USA and CDN
$4.71
Location: 31 Prev | Next Part: 165137 *Qty: 8 SCREW
- Valid for USA and CDN
$1.48
Location: 32 Prev | Next Part: 193556 *Qty: 2 RUBBER PROFILE
- Valid for USA and CDN
$1.32
Location: 33 Prev | Next Part: 67193500 *Qty: 1 PIPE FROM COMPRESSOR TO UNION
- Valid for USA and CDN
$557.46
Location: 34 Prev | Next Part: 67193600 *Qty: 1 PIPE FROMUNION TO CONDENSER
- Valid for USA and CDN
$189.47
Location: 35 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 36 Prev | Next Part: 14433124 *Qty: 1 SCREW $0.90
Location: 37 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 10441690 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 39 Prev | Next Part: 194993 *Qty: 2 O.R. GASKET $17.08
Location: 40 Prev | Next Part: 67641500 *Qty: 2 O.R. GASKET $2.49
Location: 41 Prev | Next Part: 67641000 *Qty: 4 O.R. GASKET
- (Quantity 5 for cars USA and CDN)
$2.08
Location: 42 Prev | Next Part: 67641100 *Qty: 2 O.R. GASKET $2.49
Location: 43 Prev | Next Part: 67641200 *Qty: 2 O.R. GASKET $3.05
Location: 44 Prev | Next Part: 67641300 *Qty: 4 O.R. GASKET
- (Quantity 5 for cars USA and CDN)
$1.67
Location: 45 Prev | Next Part: 67641400 *Qty: 2 O.R. GASKET $2.35

* Quantity shown indicates the number of pieces used in the diagram.
