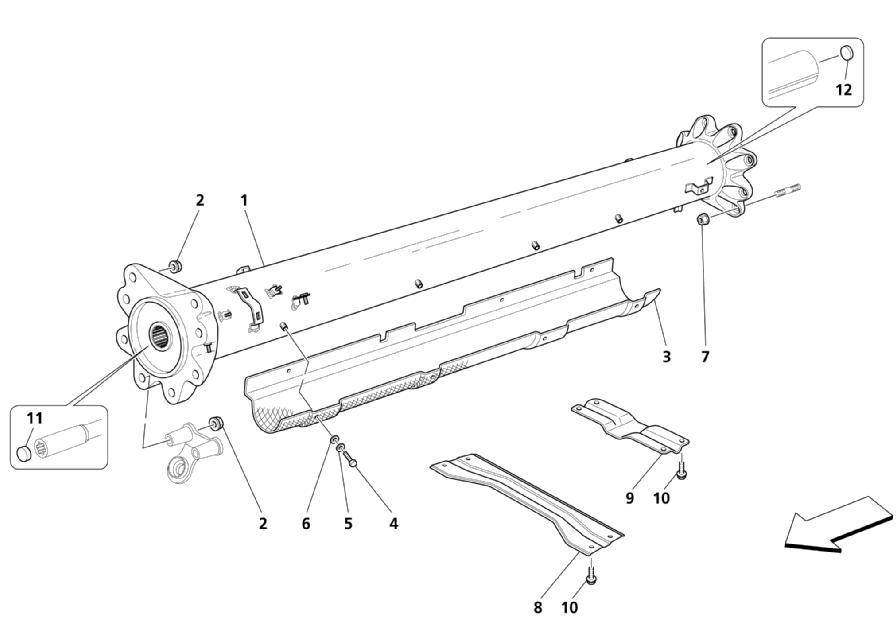

TRANSMISSION TUBE

Go to Split View

TRANSMISSION TUBE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 228688 *Qty: 1 ENGINE-GEARBOX CONNECTING TUBE $8,314.88
Location: 2 Prev | Next Part: 156462 *Qty: 8 NUT $1.17
Location: 3 Prev | Next Part: 226268 *Qty: 1 TRANSMISSION HEAT SHIELD $56.37
Location: 4 Prev | Next Part: 10856821 *Qty: 8 SCREW $0.90
Location: 5 Prev | Next Part: 12601174 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 12637824 *Qty: 8 WASHER $0.90
Location: 7 Prev | Next Part: 156462 *Qty: 8 NUT $1.17
Location: 8 Prev | Next Part: 67487100 *Qty: 1 FRONT CROSS MEMBER $32.88
Location: 9 Prev | Next Part: 66931600 *Qty: 1 REAR CROSS MEMBER $20.36
Location: 10 Prev | Next Part: 11617324 *Qty: 8 SCREW $2.08
Location: 11 Prev | Next Part: 191902 *Qty: 1 SPACER -Included in the engine-gearbox connecting tube (Pos. 1)- Call
Location: 12 Prev | Next Part: 144443 *Qty: 1 SPACER -Included in the engine-gearbox connecting tube (Pos. 1)- $7.59

* Quantity shown indicates the number of pieces used in the diagram.
