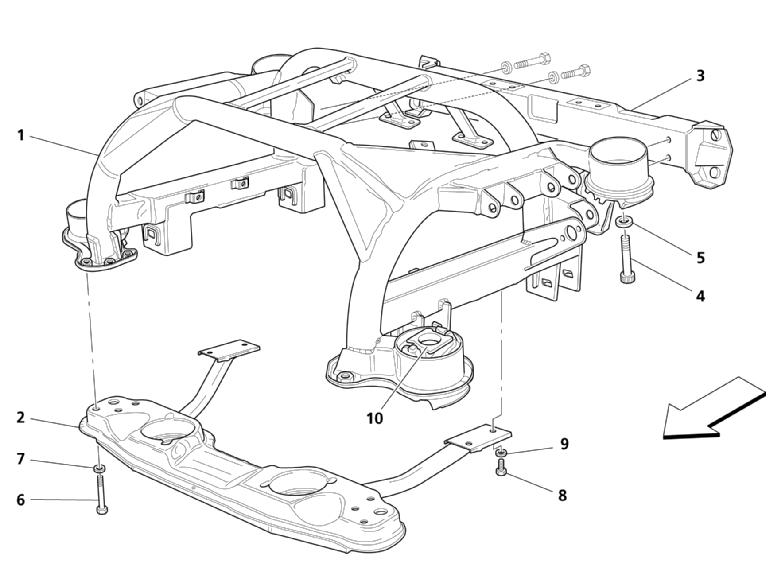

REAR UNDERFRAME

Go to Split View

REAR UNDERFRAME

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66895800 *Qty: 1 REAR FRAME ASSEMBLY -Not include the flexible pads (Pos. 10)- $7,475.70
Location: 2 Prev | Next Part: 67482600 *Qty: 1 FRONT CROSS MEMBER $458.50
Location: 3 Prev | Next Part: 67483100 *Qty: 1 REAR CROSS MEMBER $703.09
Location: 4 Prev | Next Part: 67997900 *Qty: 4 SCREW $11.05
Location: 5 Prev | Next Part: 10732531 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 11343724 *Qty: 6 SCREW $1.56
Location: 7 Prev | Next Part: 14496624 *Qty: 10 WASHER $0.90
Location: 8 Prev | Next Part: 10902621 *Qty: 4 SCREW Superseded
Location: 9 Prev | Next Part: 12604579 *Qty: 10 WASHER $1.56
Location: 10 Prev | Next Part: 69296700 *Qty: 4 FLEXIBLE PAD $174.42

* Quantity shown indicates the number of pieces used in the diagram.
