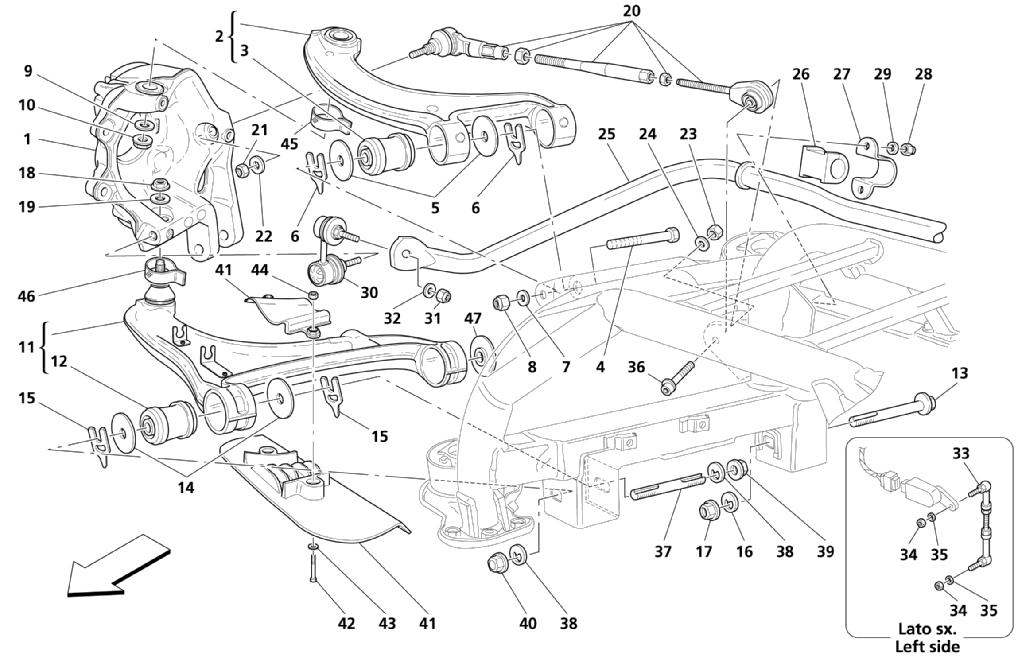

REAR SUSPENSIONS

Go to Split View

REAR SUSPENSIONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 216251 *Qty: 1 COMPLETE L.H. REAR HUB HOLDER Call
Location: 1 Prev | Next Part: 216250 *Qty: 1 COMPLETE R.H. REAR HUB HOLDER Call
Location: 2 Prev | Next Part: 227728 *Qty: 1 COMPLETE L.H. REAR UPPER LEVER Call
Location: 2 Prev | Next Part: 227727 *Qty: 1 COMPLETE R.H. REAR UPPER LEVER Call
Location: 3 Prev | Next Part: 216767 *Qty: 2 SILENTBLOCK -Rear- Call
Location: 3 Prev | Next Part: 208703 *Qty: 2 SILENTBLOCK -Front- Call
Location: 4 Prev | Next Part: 15541334 *Qty: 4 SCREW $4.70
Location: 5 Prev | Next Part: 194444 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 198045 *Qty: 8 SPACER -Thickness mm. 1.00- $3.61
Location: 6 Prev | Next Part: 198046 *Qty: 8 SPACER -Thickness mm. 1.75- $2.91
Location: 6 Prev | Next Part: 198044 *Qty: 8 SPACER -Thickness mm. 0.75- $3.73
Location: 6 Prev | Next Part: 198043 *Qty: 8 SPACER -Thickness mm. 0.50- $3.88
Location: 6 Prev | Next Part: 198047 *Qty: 8 SPACER -Thickness mm. 3.00- $2.91
Location: 7 Prev | Next Part: 14496721 *Qty: 4 WASHER $0.90
Location: 8 Prev | Next Part: 102825 *Qty: 4 NUT Superseded
Location: 9 Prev | Next Part: 12646924 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 149807 *Qty: 2 NUT $1.39
Location: 11 Prev | Next Part: 217739 *Qty: 1 COMPLETE L.H. FRONT REAR LEVER $555.99
Location: 11 Prev | Next Part: 217738 *Qty: 1 COMPLETE R.H. REAR LOWER LEVER $716.41
Location: 12 Prev | Next Part: 223026 *Qty: 2 SILENTBLOCK -Rear- $44.74
Location: 12 Prev | Next Part: 198543 *Qty: 2 SILENTBLOCK -Front- $49.21
Location: 13 Prev | Next Part: 194221 *Qty: 2 ECCENTRIC SCREW $33.16
Location: 14 Prev | Next Part: 194445 *Qty: 6 WASHER $1.53
Location: 15 Prev | Next Part: 198042 *Qty: 8 SPACER -Thickness mm. 3.00- $4.15
Location: 15 Prev | Next Part: 198041 *Qty: 8 SPACER -Thickness mm. 1.75- $3.05
Location: 15 Prev | Next Part: 198040 *Qty: 8 SPACER -Thickness mm. 1.00- $3.61
Location: 15 Prev | Next Part: 198039 *Qty: 8 SPACER -Thickness mm. 0.75- $3.73
Location: 15 Prev | Next Part: 198038 *Qty: 8 SPACER -Thickness mm. 0.50- $3.88
Location: 16 Prev | Next Part: 194222 *Qty: 2 ECCENTRIC WASHER $17.28
Location: 17 Prev | Next Part: 203795 *Qty: 2 NUT $3.01
Location: 18 Prev | Next Part: 203795 *Qty: 2 NUT $3.01
Location: 19 Prev | Next Part: 205496 *Qty: 2 WASHER $7.75
Location: 20 Prev | Next Part: 231402 *Qty: 2 CONVERGENCY REGOLATION TIE ROD $186.88
Location: 21 Prev | Next Part: 203657 *Qty: 2 NUT $1.11
Location: 22 Prev | Next Part: 12626224 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 203657 *Qty: 2 NUT $1.11
Location: 24 Prev | Next Part: 12626224 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 216714 *Qty: 1 REAR ANTI-ROLL BAR $216.09
Location: 26 Prev | Next Part: 200587 *Qty: 2 PAD $27.41
Location: 27 Prev | Next Part: 191221 *Qty: 2 PAD FASTENING PLATE $12.53
Location: 28 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 29 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 162620 *Qty: 1 R.H. BALL TIE ROD $124.62
Location: 30 Prev | Next Part: 162619 *Qty: 1 L.H. BALL TIE ROD $190.55
Location: 31 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 33 Prev | Next Part: 188632 *Qty: 1 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER $89.17
Location: 34 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 14498824 *Qty: 2 WASHER $0.90
Location: 36 Prev | Next Part: 205608 *Qty: 2 SCREW $20.04
Location: 37 Prev | Next Part: 204008 *Qty: 2 STUD $42.83
Location: 38 Prev | Next Part: 194222 *Qty: 4 WASHER $17.28
Location: 39 Prev | Next Part: 203795 *Qty: 2 NUT $3.01
Location: 40 Prev | Next Part: 204010 *Qty: 2 CAP NUT $4.15
Location: 41 Prev | Next Part: 206881 *Qty: 1 AIR CHANGE-OVER SWITCH FOR L.H. REAR LOWER LEVER $21.92
Location: 41 Prev | Next Part: 206882 *Qty: 1 AIR CHANGE-OVER SWITCH FOR R.H. REAR LOWER LEVER $21.92
Location: 42 Prev | Next Part: 14064414 *Qty: 4 SCREW $1.04
Location: 43 Prev | Next Part: 14498804 *Qty: 4 WASHER Superseded
Location: 44 Prev | Next Part: 15896211 *Qty: 4 NUT Superseded
Location: 45 Prev | Next Part: 386600416 *Qty: 2 JOINT UPPER PROTECTION $5.02
Location: 46 Prev | Next Part: 160019 *Qty: 2 JOINT LOWER PROTECTION $4.90
Location: 47 Prev | Next Part: 222203 *Qty: 2 SPACER $17.28

* Quantity shown indicates the number of pieces used in the diagram.
