PIPING (Page 2/2) -Valid for GDTable

Go to Split View

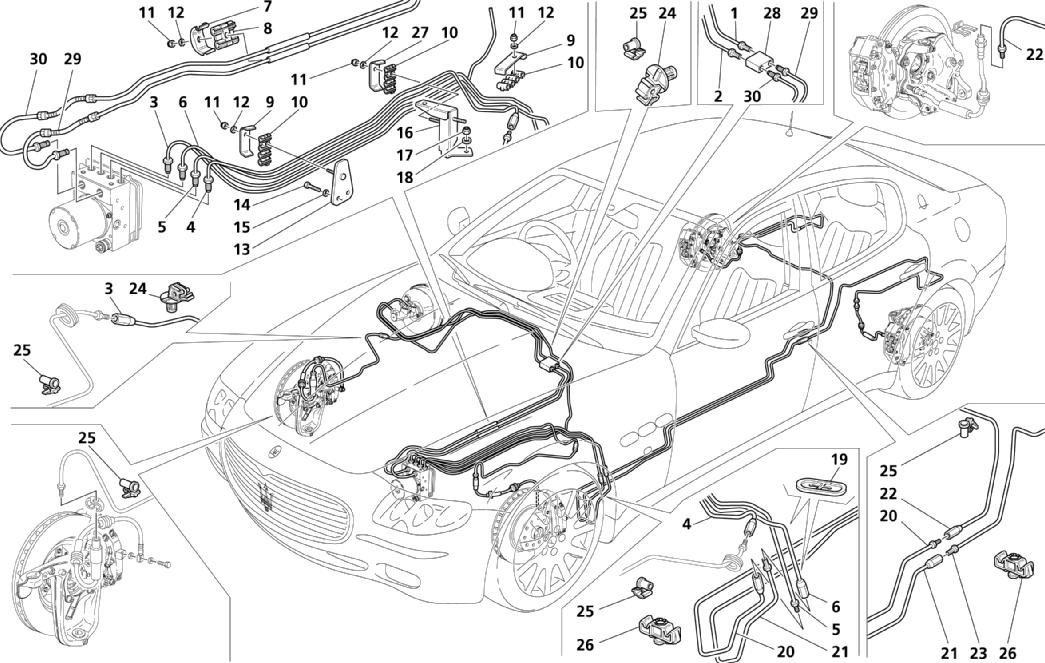

PIPING (Page 2/2) -Valid for GDTable

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 208028 *Qty: 1 RIGID PIPE FROM PUMP TO UNION (MC1) Call
Location: 2 Prev | Next Part: 208031 *Qty: 1 RIGID PIPE FROM PUMP TO UNION (MC2) Call
Location: 3 Prev | Next Part: 207434 *Qty: 1 RIGID PIPE FROM CONTROL UNIT TO R.H. CONNECTION $40.02
Location: 4 Prev | Next Part: 207435 *Qty: 1 RIGID PIPE FROM CONTROL UNIT TO L.H. CONNECTION Call
Location: 5 Prev | Next Part: 207436 *Qty: 1 RIGID PIPE FROM CONTROL UNIT TO R.H. INTERMEDIATE PIPE $15.72
Location: 6 Prev | Next Part: 207437 *Qty: 1 RIGID PIPE FROM CONTROL UNIT TO L.H. INTERMEDIATE PIPE $16.44
Location: 7 Prev | Next Part: 193722 *Qty: 1 RETAINER Call
Location: 8 Prev | Next Part: 192275 *Qty: 1 CLIP Call
Location: 9 Prev | Next Part: 200288 *Qty: 2 RETAINER Call
Location: 10 Prev | Next Part: 192276 *Qty: 3 CLIP Call
Location: 11 Prev | Next Part: 14075611 *Qty: 4 NUT $1.79
Location: 12 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 203822 *Qty: 1 BRACKET Call
Location: 14 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 204366 *Qty: 1 BRACKET Call
Location: 17 Prev | Next Part: 16100814 *Qty: 1 NUT $0.90
Location: 18 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 19 Prev | Next Part: 221727 *Qty: 2 GASKET -Valid after stock exhaustion of 60624899- Call
Location: 19 Prev | Next Part: 60624899 *Qty: 2 GASKET -Valid till stock exhaustion- $1.52
Location: 20 Prev | Next Part: 194858 *Qty: 1 R.H. INTERMEDIATE RIGID PIPE $32.13
Location: 21 Prev | Next Part: 194859 *Qty: 1 L.H. INTERMEDIATE RIGID PIPE $27.54
Location: 22 Prev | Next Part: 198081 *Qty: 1 RIGID PIPE FROM R.H. INTERMEDIATE PIPE TO R.H. REAR WHEEL -Valid till stock exhaustion- Call
Location: 22 Prev | Next Part: 227265 *Qty: 1 RIGID PIPE FROM R.H. INTERMEDIATE PIPE TO R.H. REAR WHEEL -Valid after stock exhaustion of 198081- $42.87
Location: 23 Prev | Next Part: 194857 *Qty: 1 RIGID PIPE FROM L.H. INTERMEDIATE PIPE TO L.H. REAR WHEEL $45.12
Location: 24 Prev | Next Part: 192277 *Qty: 4 CLIP $1.64
Location: 25 Prev | Next Part: 192279 *Qty: 5 CLIP $0.90
Location: 26 Prev | Next Part: 192278 *Qty: 2 CLIP $1.14
Location: 27 Prev | Next Part: 193721 *Qty: 1 RETAINER Call
Location: 28 Prev | Next Part: 208035 *Qty: 1 UNION Call
Location: 29 Prev | Next Part: 222932 *Qty: 1 RIGID PIPE FROM UNION TO CONTROL UNIT (MC1) Call
Location: 30 Prev | Next Part: 222933 *Qty: 1 RIGID PIPE FROM UNION TO CONTROL UNIT (MC2) Call

* Quantity shown indicates the number of pieces used in the diagram.
