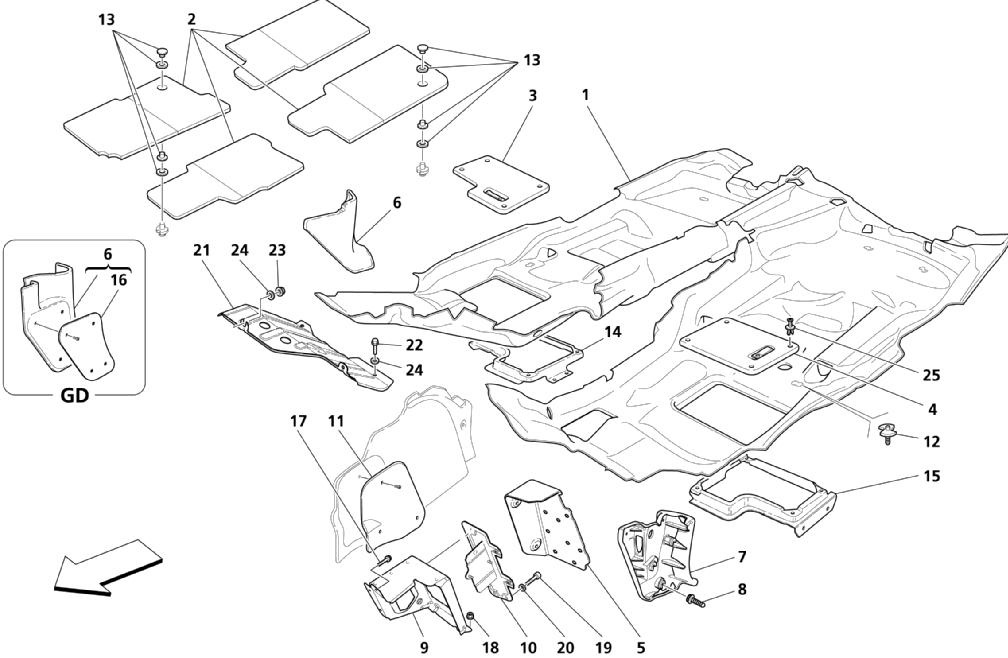

PASSENGERS COMPARTMENT CARPETS

Go to Split View

PASSENGERS COMPARTMENT CARPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9814309.. *Qty: 1 PASSENGER CARPET -Not for USA and GD- Call
Location: 1 Prev | Next Part: 9814310.. *Qty: 1 PASSENGER CARPET -Valid for USA- Call
Location: 1 Prev | Next Part: 9814311.. *Qty: 1 PASSENGER CARPET -Valid for GD- Call
Location: 2 Prev | Next Part: 9813071.. *Qty: 1 REMOVABLE CARPET KIT -Not for USA and GD- Call
Location: 2 Prev | Next Part: 9814312.. *Qty: 1 REMOVABLE CARPET KIT -Valid for USA- Call
Location: 2 Prev | Next Part: 9813292.. *Qty: 1 REMOVABLE CARPET KIT -Valid for GD- Call
Location: 3 Prev | Next Part: 9813056.. *Qty: 1 R.H. CONTROL UNIT INSPECTION DOOR -Not for GD- Call
Location: 3 Prev | Next Part: 9813297.. *Qty: 1 R.H. CONTROL UNIT INSPECTION DOOR -Valid for GD- Call
Location: 4 Prev | Next Part: 9813297.. *Qty: 1 L.H. CONTROL UNIT INSPECTION DOOR -Not for GD- Call
Location: 4 Prev | Next Part: 9813057.. *Qty: 1 L.H. CONTROL UNIT INSPECTION DOOR -Valid for GD- Call
Location: 5 Prev | Next Part: 9813058.. *Qty: 1 FOOT REST LINING -Not for GD- Call
Location: 6 Prev | Next Part: 9813021.. *Qty: 1 R.H. LATERAL COVER -Not for GD- Call
Location: 6 Prev | Next Part: 9813293.. *Qty: 1 R.H. LATERAL COVER -Valid for GD- Call
Location: 7 Prev | Next Part: 9813022.. *Qty: 1 L.H. LATERAL COVER -Not for GD- Call
Location: 7 Prev | Next Part: 9813294.. *Qty: 1 L.H. LATERAL COVER -Valid for GD- Call
Location: 8 Prev | Next Part: 67874500 *Qty: 6 PIN $0.90
Location: 9 Prev | Next Part: 67076300 *Qty: 1 FOOT-REST FOR DRIVER -Not for GD- Call
Location: 10 Prev | Next Part: 67571800 *Qty: 1 FOOT-REST FOR DRIVER COVER -Not for GD- $32.88
Location: 11 Prev | Next Part: 67312200 *Qty: 1 PROTECTION PLATE -Not for GD- -Included in the l.h. lateral cover (Draw 9.51 Pos. 18)- Call
Location: 12 Prev | Next Part: 67020900 *Qty: 4 BUTTON $0.90
Location: 13 Prev | Next Part: 980001999 *Qty: 2 REMOVABLE CARPET FIXING KIT $27.63
Location: 14 Prev | Next Part: 67728600 *Qty: 1 R.H. BRACKET FOR INSPECTION SHIELD -Not for GD- Call
Location: 14 Prev | Next Part: 68192200 *Qty: 1 R.H. BRACKET FOR INSPECTION SHIELD -Valid for GD- Call
Location: 15 Prev | Next Part: 68192000 *Qty: 1 L.H. BRACKET FOR INSPECTION SHIELD -Not for GD- Call
Location: 15 Prev | Next Part: 67728700 *Qty: 1 L.H. BRACKET FOR INSPECTION SHIELD -Valid for GD- Call
Location: 16 Prev | Next Part: 67999800 *Qty: 1 PROTECTION PLATE -Valid for GD- Call
Location: 17 Prev | Next Part: 11625624 *Qty: 3 SCREW -Not for GD- $0.97
Location: 18 Prev | Next Part: 14039614 *Qty: 1 NUT -Not for GD- $0.90
Location: 19 Prev | Next Part: 13026924 *Qty: 3 SCREW -Not for GD- $0.90
Location: 20 Prev | Next Part: 13550201 *Qty: 3 WASHER -Not for GD- Superseded
Location: 21 Prev | Next Part: 67720100 *Qty: 1 FOOT-REST PASSENGER -Valid for GD- -L.h. side- Call
Location: 21 Prev | Next Part: 67267900 *Qty: 1 FOOT-REST PASSENGER -Not for GD- -R.h. side- $65.77
Location: 22 Prev | Next Part: 11612424 *Qty: 2 SCREW $2.11
Location: 23 Prev | Next Part: 14039614 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 68808600 *Qty: 8 FIXING BUTTON $1.58

* Quantity shown indicates the number of pieces used in the diagram.
