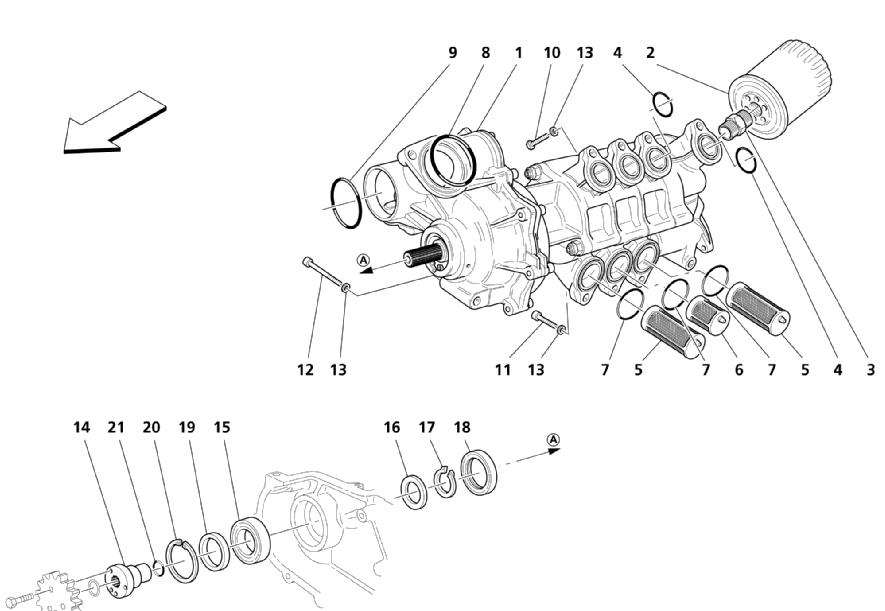

LUBRICATION: PUMP AND FILTER

Go to Split View

LUBRICATION: PUMP AND FILTER

Location Part # Quantity* Description Price Add To Cart
1 202976 1 COMPLETE WATER AND OIL PUMP $3,215.52
2 188814 1 OIL FILTER CARTRIDGE $52.78
3 177604 1 THREADED UNION $17.76
4 133938 4 O.R. GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $0.90
5 187051 2 LATERAL OIL RECOVERY FILTER $16.73
6 187162 1 CENTRAL OIL RECOVERY FILTER $39.10
7 148225 3 O.R. GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $0.90
8 132829 1 O.R. GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $1.73
9 141250 1 O.R. GASKET $0.90
10 185345 4 SCREW -M 8X25- $3.33
11 14306524 1 SCREW -M 8X30- Unavailable
11 14306424 3 SCREW -M 8X25- Unavailable
12 14359324 2 SCREW -M 8X65- Unavailable
13 11198074 10 WASHER Unavailable
14 189778 1 COUPLING $31.97
15 155996 1 BALL BEARING $13.64
16 177597 1 COMPENSATOR RING Unavailable
17 11067276 1 SEEGER RING Unavailable
18 121276 1 GASKET $18.01
19 177596 1 COMPENSATOR RING Unavailable
20 11381076 1 SEEGER RING $1.89
21 186272 1 O.R. GASKET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
