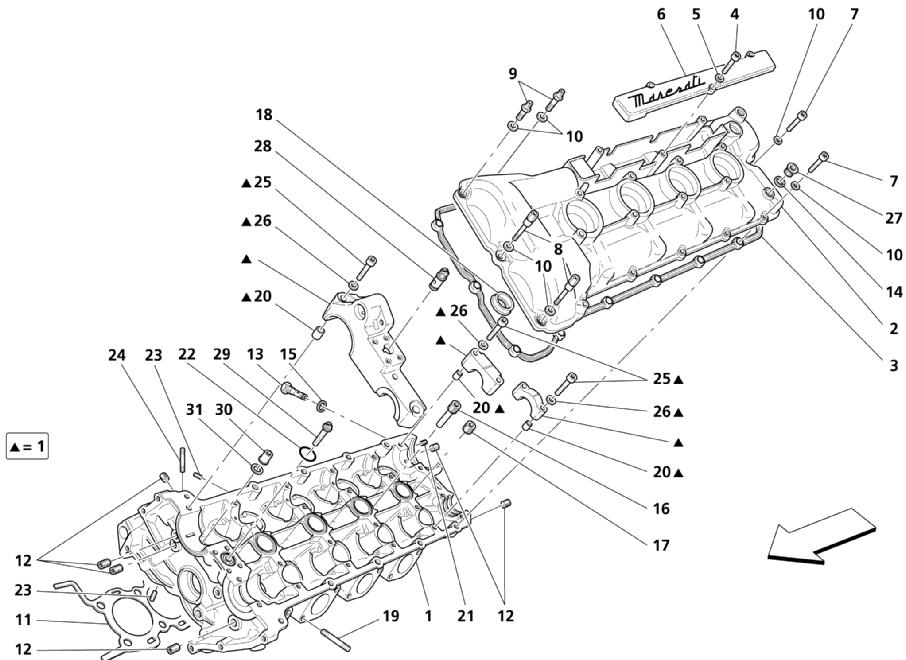

L.H. CYLINDER HEAD

Go to Split View

L.H. CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 218038 *Qty: 1 COMPLETE L.H. HEAD $2,607.67
Location: 2 Prev | Next Part: 216287 *Qty: 1 L.H. CYLINDERS HEAD COVER Call
Location: 3 Prev | Next Part: 198928 *Qty: 1 L.H. HEAD COVER GASKET -Supplied also in the cover gasket revision kit (cod. 980020007)- $44.25
Location: 4 Prev | Next Part: 14304424 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: 14497878 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 185313 *Qty: 1 L.H. HARNESS SMALL COVER $61.86
Location: 7 Prev | Next Part: 156830 *Qty: 1 SCREW -M 6X40- $1.20
Location: 7 Prev | Next Part: 157218 *Qty: 8 SCREW -M 6X25- $0.90
Location: 8 Prev | Next Part: 200414 *Qty: 3 STUD -M 6X25.5- $9.74
Location: 9 Prev | Next Part: 187710 *Qty: 1 STUD -M 6X40- $8.02
Location: 9 Prev | Next Part: 187711 *Qty: 1 STUD -M 6X25- $67.02
Location: 10 Prev | Next Part: 11197774 *Qty: 14 WASHER Superseded
Location: 11 Prev | Next Part: 184967 *Qty: 1 L.H. HEAD GASKET -Supplied also in the cylinder heads gasket revision kit (cod. 980020003)- $77.42
Location: 12 Prev | Next Part: 14326001 *Qty: 6 THREADED PLUG $0.90
Location: 13 Prev | Next Part: 180267 *Qty: 1 OIL NONRETURN VALVE $36.18
Location: 14 Prev | Next Part: 10263360 *Qty: 1 GASKET $0.90
Location: 15 Prev | Next Part: 10261060 *Qty: 1 GASKET $0.90
Location: 16 Prev | Next Part: 183447 *Qty: 4 THREADED PLUG $12.63
Location: 17 Prev | Next Part: 164400 *Qty: 1 THREADED PLUG $4.68
Location: 18 Prev | Next Part: 223982 *Qty: 4 GASKET -Supplied also in the cover gasket revision kit (cod. 980020007)- $2.58
Location: 19 Prev | Next Part: 13543424 *Qty: 8 STUD $0.90
Location: 20 Prev | Next Part: 102725 *Qty: 22 CENTERING DOWEL $0.93
Location: 21 Prev | Next Part: 14326150 *Qty: 1 THREADED PLUG $0.90
Location: 22 Prev | Next Part: 134233 *Qty: 1 GASKET -Supplied also in the cover gasket revision kit (cod. 980020007)- $5.38
Location: 23 Prev | Next Part: 199760 *Qty: 6 THREADED PLUG $0.90
Location: 24 Prev | Next Part: 13541224 *Qty: 8 STUD $44.21
Location: 25 Prev | Next Part: 14305821 *Qty: 4 SCREW -M 6X40- $0.90
Location: 25 Prev | Next Part: 14305621 *Qty: 18 SCREW -M 6X35- Superseded
Location: 26 Prev | Next Part: 11197774 *Qty: 22 WASHER Superseded
Location: 27 Prev | Next Part: 187963 *Qty: 1 PLUG $4.43
Location: 28 Prev | Next Part: 184681 *Qty: 1 OIL PRESSURE CHECK VALVE $73.60
Location: 29 Prev | Next Part: 180266 *Qty: 1 OIL FILTER -Supplied also in the cover gasket revision kit (cod. 980020007)- $14.10
Location: 30 Prev | Next Part: 183524 *Qty: 10 NUT $4.47
Location: 31 Prev | Next Part: 151117 *Qty: 10 WASHER $1.45

* Quantity shown indicates the number of pieces used in the diagram.
