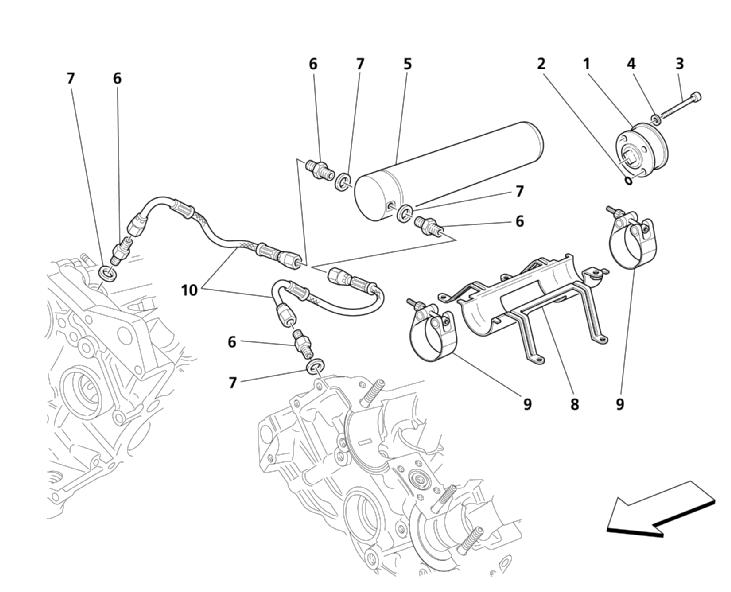

HYDRAULICS FOR TIMING

Go to Split View

HYDRAULICS FOR TIMING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 189541 *Qty: 1 OIL PUMP VARIATOR $161.84
Location: 2 Prev | Next Part: 134701 *Qty: 2 O.R. GASKET $0.90
Location: 3 Prev | Next Part: 14303523 *Qty: 4 SCREW $2.47
Location: 4 Prev | Next Part: 184731 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 190163 *Qty: 1 OIL ACCUMULATOR FOR VARIATOR $373.06
Location: 6 Prev | Next Part: 195056 *Qty: 4 THREADED UNION $18.48
Location: 7 Prev | Next Part: 10261060 *Qty: 4 GASKET $0.90
Location: 8 Prev | Next Part: 193406 *Qty: 1 OIL ACCUMULATOR SEAT $116.74
Location: 9 Prev | Next Part: 190162 *Qty: 2 CLAMP $23.27
Location: 10 Prev | Next Part: 193864 *Qty: 2 PIPE FROM ACCUMULATOR TO CYLINDERS HEADS $114.70

* Quantity shown indicates the number of pieces used in the diagram.
