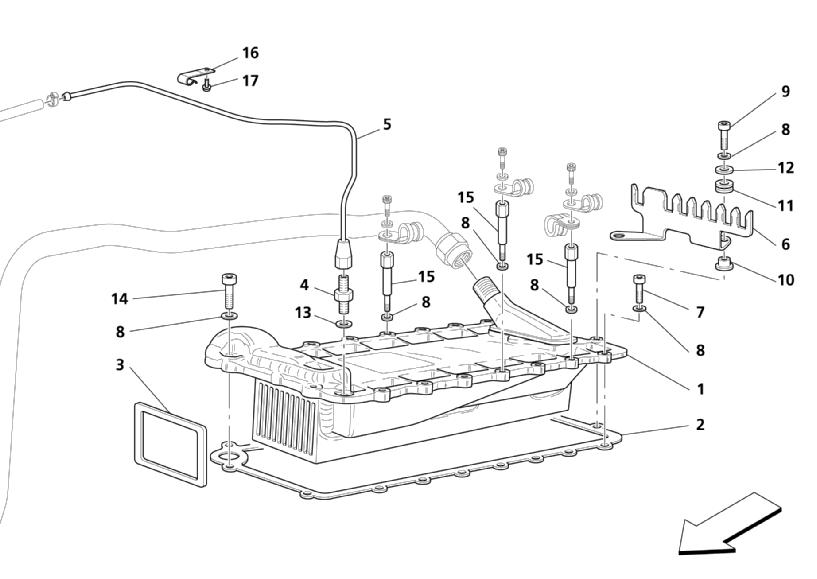

HEAT EXCHANGER

Go to Split View

HEAT EXCHANGER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 186356 *Qty: 1 WATER/OIL EXCHANGER $1,816.41
Location: 2 Prev | Next Part: 185581 *Qty: 1 GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $33.33
Location: 3 Prev | Next Part: 174600 *Qty: 1 GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $5.38
Location: 4 Prev | Next Part: 192327 *Qty: 1 UNION $5.03
Location: 5 Prev | Next Part: 202143 *Qty: 1 WATER VENT PIPE Call
Location: 6 Prev | Next Part: 191396 *Qty: 1 BRACKET $11.24
Location: 7 Prev | Next Part: 14432224 *Qty: 10 SCREW -M 6X22- Superseded
Location: 7 Prev | Next Part: 14305424 *Qty: 2 SCREW -M 6X25- Superseded
Location: 8 Prev | Next Part: 11197774 *Qty: 19 WASHER Superseded
Location: 9 Prev | Next Part: 14305624 *Qty: 2 SCREW -M 6X35- $0.90
Location: 10 Prev | Next Part: 149707 *Qty: 2 SPACER $1.41
Location: 11 Prev | Next Part: 177576 *Qty: 2 CABLE GROMMET $2.71
Location: 12 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 10284460 *Qty: 1 GASKET $0.90
Location: 14 Prev | Next Part: 14305524 *Qty: 2 SCREW -M 6X30- $0.90
Location: 15 Prev | Next Part: 198462 *Qty: 3 STUD Call
Location: 16 Prev | Next Part: 203130 *Qty: 1 CLIP -Included in the complete suction manifold (Draw 1.40 Pos. 1)- Call
Location: 17 Prev | Next Part: 203133 *Qty: 1 SCREW -Included in the complete suction manifold (Draw 1.40 Pos. 1)- Call

* Quantity shown indicates the number of pieces used in the diagram.
