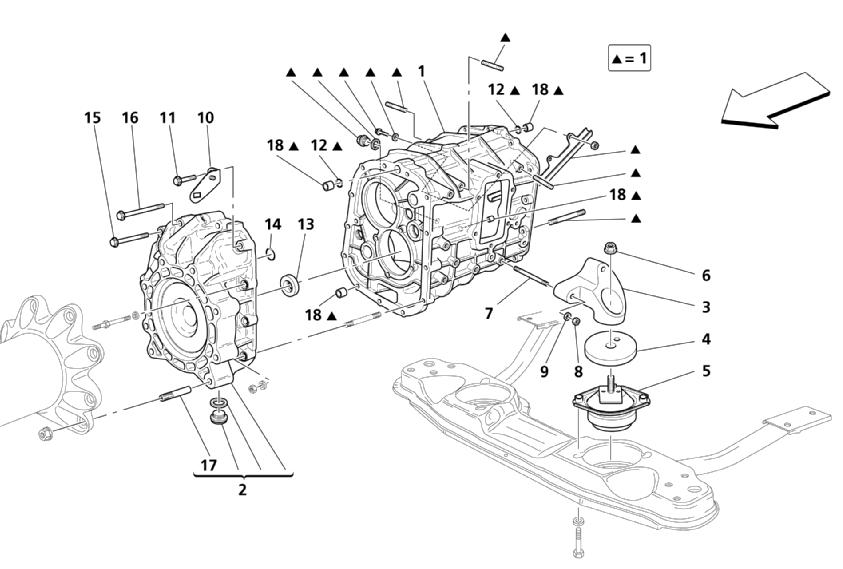

GEARS HOUSING

Go to Split View

GEARS HOUSING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 219690 *Qty: 1 COMPLETE GEARBOX $1,036.07
Location: 2 Prev | Next Part: 206513 *Qty: 1 COMPLETE FRONT COVER $886.29
Location: 3 Prev | Next Part: 192828 *Qty: 1 L.H. GEARBOX FIXING SUPPORT Call
Location: 3 Prev | Next Part: 192827 *Qty: 1 R.H. GEARBOX FIXING SUPPORT Call
Location: 4 Prev | Next Part: 191791 *Qty: 2 UPPER SUPPORT FOR PAD $3.46
Location: 5 Prev | Next Part: 196865 *Qty: 2 FLEXIBLE PAD $161.29
Location: 6 Prev | Next Part: 177018 *Qty: 2 NUT $1.51
Location: 7 Prev | Next Part: 13517224 *Qty: 1 STUD M8X12-30 $1.38
Location: 7 Prev | Next Part: 13543624 *Qty: 1 STUD M8X16-30 $0.90
Location: 7 Prev | Next Part: 13543824 *Qty: 4 STUD M8X16-40 Superseded
Location: 8 Prev | Next Part: 16100812 *Qty: 6 NUT $0.90
Location: 9 Prev | Next Part: 12601374 *Qty: 6 WASHER $0.90
Location: 10 Prev | Next Part: 188004 *Qty: 1 CONNECTOR SUPPORT BRACKET $16.00
Location: 11 Prev | Next Part: 16287521 *Qty: 5 SCREW $1.61
Location: 12 Prev | Next Part: 14456981 *Qty: 2 O.R. GASKET $1.26
Location: 13 Prev | Next Part: 200976 *Qty: 1 SEAL RING $27.41
Location: 14 Prev | Next Part: 14453581 *Qty: 1 O.R. GASKET $2.23
Location: 15 Prev | Next Part: 16287731 *Qty: 3 SCREW $2.80
Location: 16 Prev | Next Part: 16288121 *Qty: 1 SCREW $3.19
Location: 17 Prev | Next Part: 13449534 *Qty: 1 STUD M8X15-25 Call
Location: 17 Prev | Next Part: 13546334 *Qty: 7 STUD M8X20-25 $1.53
Location: 18 Prev | Next Part: 150957 *Qty: 4 CENTERING DOWEL $11.09

* Quantity shown indicates the number of pieces used in the diagram.
