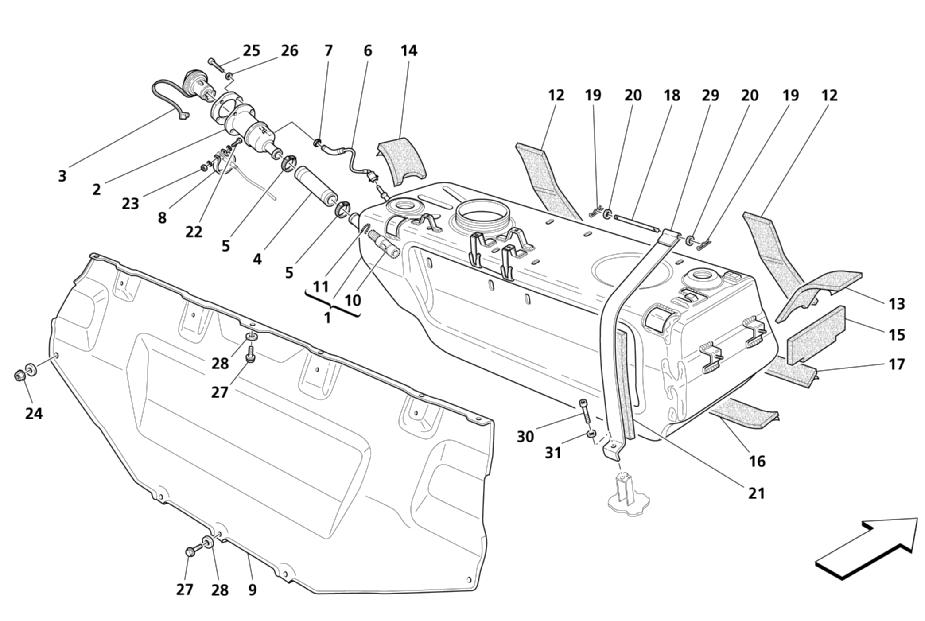

FUEL TANKS

Go to Split View

FUEL TANKS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 215473 *Qty: 1 FUEL TANK -Valid for USA and CDN- $2,055.80
Location: 1 Prev | Next Part: 214699 *Qty: 1 FUEL TANK -Not for USA and CDN- Call
Location: 2 Prev | Next Part: 222257 *Qty: 1 COMPLETE FUEL UNION -Valid after stock exhaustion of 192332- $57.17
Location: 2 Prev | Next Part: 192332 *Qty: 1 COMPLETE FUEL UNION -Complete of plug (Pos. 3)- -Valid till stock exhaustion- $1,055.92
Location: 3 Prev | Next Part: 201026 *Qty: 1 TANK PLUG $44.64
Location: 4 Prev | Next Part: 182637 *Qty: 1 UNION-TANK CONNECTING PIPE -Valid for USA and CDN- $118.98
Location: 4 Prev | Next Part: 197828 *Qty: 1 UNION-TANK CONNECTING PIPE -Not for USA and CDN- Call
Location: 5 Prev | Next Part: 13000590 *Qty: 2 SCREW COLLAR Superseded
Location: 6 Prev | Next Part: 193573 *Qty: 1 VAPORS RECYCLING PIPE $557.46
Location: 7 Prev | Next Part: 13432070 *Qty: 1 COLLAR $0.90
Location: 8 Prev | Next Part: 203446 *Qty: 1 COLLAR FOR GROUND CABLE $46.98
Location: 9 Prev | Next Part: 68807100 *Qty: 1 TANK PANEL -Valid after stock exhaustion of 67564100- Call
Location: 9 Prev | Next Part: 67564100 *Qty: 1 TANK PANEL -Valid till stock exhaustion- $298.39
Location: 10 Prev | Next Part: 181929 *Qty: 1 INTERCEPTION VALVE Call
Location: 11 Prev | Next Part: 181930 *Qty: 1 CLIP $90.13
Location: 12 Prev | Next Part: 192990 *Qty: 2 RUBBER THICKNESS Call
Location: 13 Prev | Next Part: 192993 *Qty: 1 R.H. RUBBER THICKNESS Call
Location: 14 Prev | Next Part: 192994 *Qty: 1 L.H. RUBBER THICKNESS Call
Location: 15 Prev | Next Part: 192329 *Qty: 1 RUBBER THICKNESS Call
Location: 16 Prev | Next Part: 192991 *Qty: 1 LOWER RUBBER THICKNESS Call
Location: 17 Prev | Next Part: 192992 *Qty: 1 LOWER RUBBER THICKNESS Call
Location: 18 Prev | Next Part: 389200520 *Qty: 2 PIN $10.71
Location: 19 Prev | Next Part: 58841309 *Qty: 4 SAFETY CLIP $3.19
Location: 20 Prev | Next Part: 12648206 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 221335 *Qty: 2 ADHESIVE GASKET Call
Location: 22 Prev | Next Part: 10389321 *Qty: 1 SCREW $0.90
Location: 23 Prev | Next Part: 14059121 *Qty: 1 NUT $0.90
Location: 24 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 13289277 *Qty: 4 SCREW $2.64
Location: 26 Prev | Next Part: 389200348 *Qty: 4 WASHER $4.29
Location: 27 Prev | Next Part: 11625724 *Qty: 8 SCREW $1.18
Location: 28 Prev | Next Part: 12643724 *Qty: 8 WASHER $0.90
Location: 29 Prev | Next Part: 223524 *Qty: 2 FUEL TANK FASTENER Call
Location: 30 Prev | Next Part: 205402 *Qty: 2 SCREW Call
Location: 31 Prev | Next Part: 13550224 *Qty: 2 WASHER $1.33

* Quantity shown indicates the number of pieces used in the diagram.
