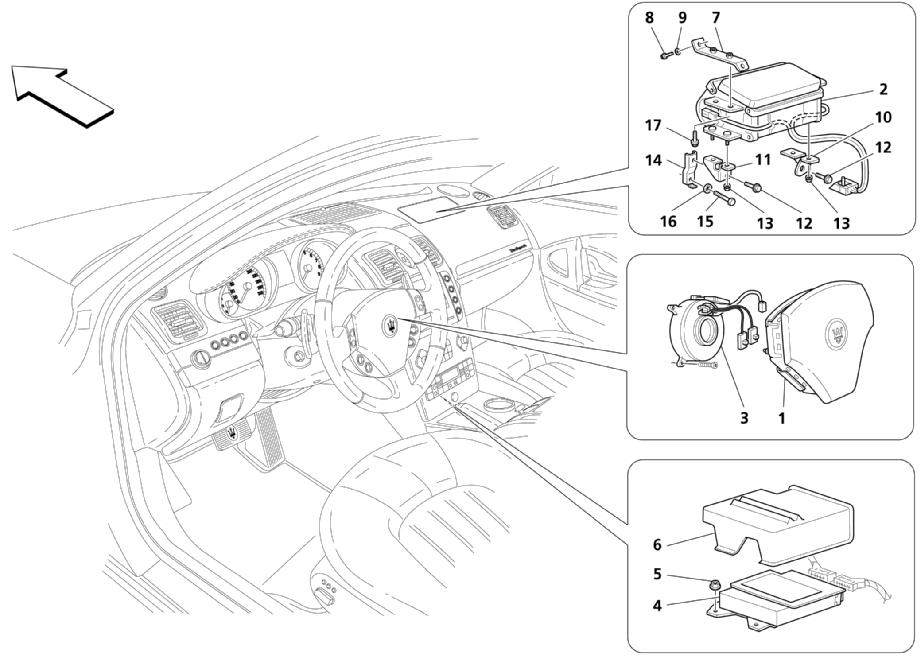

FRONTAL AIR-BAG SYSTEM

Go to Split View

FRONTAL AIR-BAG SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9813301.. *Qty: 1 DRIVER SIDE AIR-BAG Call
Location: 2 Prev | Next Part: 9814300.. *Qty: 1 PASSENGER SIDE AIR-BAG Call
Location: 3 Prev | Next Part: 187750 *Qty: 1 SPIRAL CONTACT -Included in the complete unhook deviation (Draw 8.50 Pos. 15)- Call
Location: 4 Prev | Next Part: 213338 *Qty: 1 AIR-BAG CONTROL UNIT -Valid for AUS and J- -Valid for cars GD opt. japan version- Call
Location: 4 Prev | Next Part: 214753 *Qty: 1 AIR-BAG CONTROL UNIT -Valid for CDN- $701.52
Location: 4 Prev | Next Part: 199794 *Qty: 1 AIR-BAG CONTROL UNIT -Valid for USA- $554.33
Location: 4 Prev | Next Part: 213337 *Qty: 1 AIR-BAG CONTROL UNIT -Not for USA. CDN. AUS and J- -Not for cars GD opt. japan version- $875.20
Location: 5 Prev | Next Part: 14059214 *Qty: 3 NUT $0.90
Location: 6 Prev | Next Part: 67572200 *Qty: 1 COVER $10.96
Location: 7 Prev | Next Part: 67882700 *Qty: 1 L.H. BRACKET FOR FIXING PASSENGER SIDE AIR-BAG -Valid for GD- -Included in the complete dashboard body (Draw 9.50 Pos. 1)- Call
Location: 7 Prev | Next Part: 67721500 *Qty: 1 L.H. BRACKET FOR FIXING PASSENGER SIDE AIR-BAG -Not for GD- -Included in the complete dashboard body (Draw 9.50 Pos. 1)- Call
Location: 7 Prev | Next Part: 67882600 *Qty: 1 R.H. BRACKET FOR FIXING PASSENGER SIDE AIR-BAG -Valid for GD- -Included in the complete dashboard body (Draw 9.50 Pos. 1)- Call
Location: 7 Prev | Next Part: 66936000 *Qty: 1 R.H. BRACKET FOR FIXING PASSENGER SIDE AIR-BAG -Not for GD- -Included in the complete dashboard body (Draw 9.50 Pos. 1)- $9.72
Location: 8 Prev | Next Part: 13287724 *Qty: 4 SCREW $0.90
Location: 9 Prev | Next Part: 14446921 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 69301800 *Qty: 1 R.H. BRACKET FOR SUPPORT PASSENGER SIDE AIR-BAG Call
Location: 11 Prev | Next Part: 69301900 *Qty: 1 L.H. BRACKET FOR SUPPORT PASSENGER SIDE AIR-BAG $4.56
Location: 12 Prev | Next Part: 16287024 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 14040611 *Qty: 4 NUT $0.90
Location: 14 Prev | Next Part: 67573000 *Qty: 2 BRACKET $10.66
Location: 15 Prev | Next Part: 16201224 *Qty: 2 SCREW Call
Location: 16 Prev | Next Part: 12648424 *Qty: 2 WASHER $2.49
Location: 17 Prev | Next Part: 18750021 *Qty: 3 SCREW $1.53

* Quantity shown indicates the number of pieces used in the diagram.
