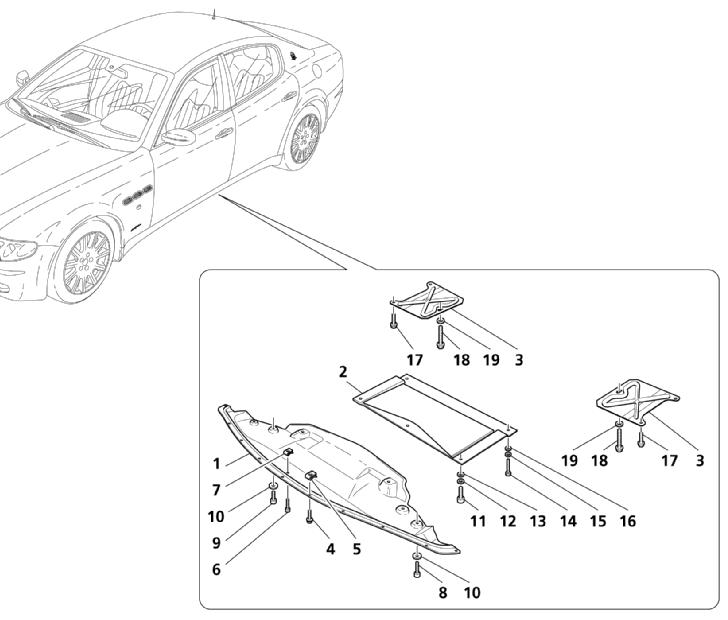

FLAT FLOOR AND UNDERBODY SHIELDS

Go to Split View

FLAT FLOOR AND UNDERBODY SHIELDS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67279200 *Qty: 1 UNDER BODY FLOR SHIELD $256.50
Location: 2 Prev | Next Part: 67960100 *Qty: 1 UNDER FRAME SHIELD $149.55
Location: 3 Prev | Next Part: 67576300 *Qty: 2 COVER FOR PIPING $12.53
Location: 4 Prev | Next Part: 67278600 *Qty: 11 SCREW $3.46
Location: 5 Prev | Next Part: 67278700 *Qty: 11 BRACKET $2.52
Location: 6 Prev | Next Part: 68479900 *Qty: 3 SCREW $2.23
Location: 7 Prev | Next Part: 61789700 *Qty: 3 BRACKET $0.90
Location: 8 Prev | Next Part: 13027024 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 14305124 *Qty: 1 SCREW $0.90
Location: 10 Prev | Next Part: 67577400 *Qty: 7 CUP $5.40
Location: 11 Prev | Next Part: 14783714 *Qty: 2 SCREW $6.19
Location: 12 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 12646824 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 10902524 *Qty: 3 SCREW $0.90
Location: 15 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 16 Prev | Next Part: 12640624 *Qty: 3 WASHER $0.90
Location: 17 Prev | Next Part: 11617324 *Qty: 4 SCREW $2.45
Location: 18 Prev | Next Part: 13217434 *Qty: 2 SCREW $6.19
Location: 19 Prev | Next Part: 12646934 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
