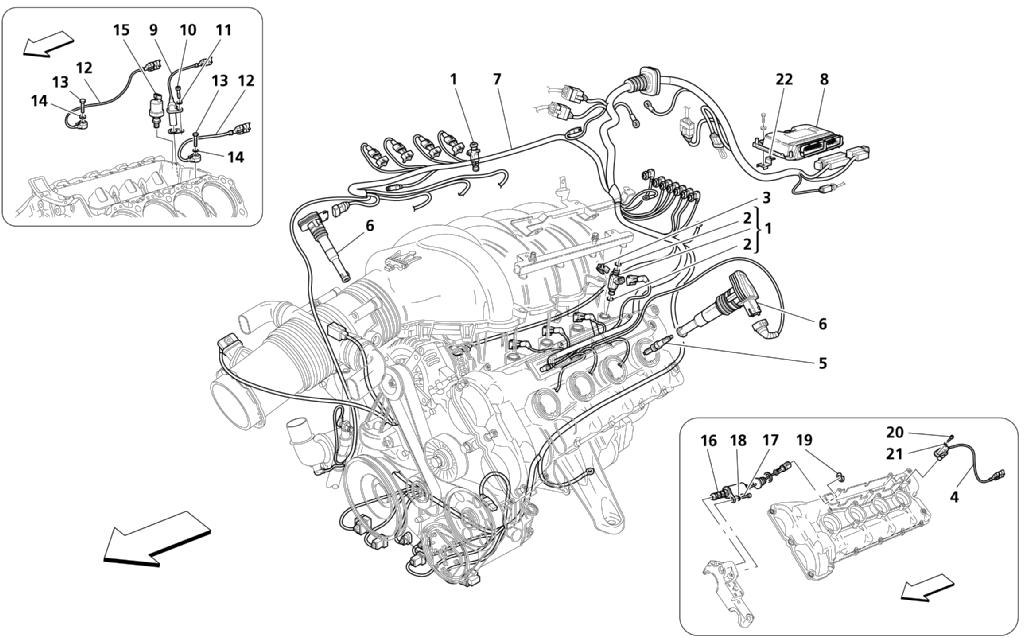

ELECTRONIC CONTROL: INJECTION AND PHASE CHECK

Go to Split View

ELECTRONIC CONTROL: INJECTION AND PHASE CHECK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 213635 *Qty: 8 ELECTRO-INJECTOR -Included in the complete injectors pipes (Draw 1.43 Pos. 15 and 16)- $345.33
Location: 2 Prev | Next Part: 133902 *Qty: 16 GASKET -Included in the complete injectors pipes (Draw 1.43 Pos. 15 and 16)- $7.01
Location: 3 Prev | Next Part: 144730 *Qty: 8 CLIP -Included in the complete injectors pipes (Draw 1.43 Pos. 15 and 16)- $3.90
Location: 4 Prev | Next Part: 201990 *Qty: 2 PHASE SENSOR $131.09
Location: 5 Prev | Next Part: 192637 *Qty: 8 SPARK PLUG -Valid after stock exhaustion of 168325- $32.29
Location: 5 Prev | Next Part: 168325 *Qty: 8 SPARK PLUG -Valid till stock exhaustion- Superseded
Location: 6 Prev | Next Part: 219969 *Qty: 8 IGNITION COIL Call
Location: 7 Prev | Next Part: 227289 *Qty: 1 ENGINE INJECTION CABLE -Valid for GD- Call
Location: 7 Prev | Next Part: 227288 *Qty: 1 ENGINE INJECTION CABLE -Valid for USA and CDN- $1,534.87
Location: 7 Prev | Next Part: 227287 *Qty: 1 ENGINE INJECTION CABLE -Not for USA. CDN and GD- Call
Location: 8 Prev | Next Part: 980139471 *Qty: 1 CONTROL UNIT IGNITION -Programmable- $1,910.39
Location: 9 Prev | Next Part: 201987 *Qty: 1 ANGOLAR SPEED SENSOR $84.60
Location: 10 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: 11197774 *Qty: 1 WASHER Superseded
Location: 12 Prev | Next Part: 187740 *Qty: 2 SENSOR FOR FIRING -Timing side- $66.87
Location: 12 Prev | Next Part: 187739 *Qty: 2 SENSOR FOR FIRING -Flywheel side- $66.89
Location: 13 Prev | Next Part: 16043834 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 11198074 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 201672 *Qty: 1 OIL PRESSURE TRANSMITTER $6.69
Location: 16 Prev | Next Part: 212423 *Qty: 2 VARIATOR CONTROL SOLENOID VALVE -Valid after stock exhaustion of 198494- Call
Location: 16 Prev | Next Part: 198494 *Qty: 2 VARIATOR CONTROL SOLENOID VALVE -Valid till stock exhaustion- $342.62
Location: 17 Prev | Next Part: 14433124 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 19 Prev | Next Part: 11087374 *Qty: 2 FLEXIBLE RING $1.03
Location: 20 Prev | Next Part: 14305224 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 22 Prev | Next Part: 188239 *Qty: 1 BRACKET Call

* Quantity shown indicates the number of pieces used in the diagram.
