CRANKCASE

Go to Split View

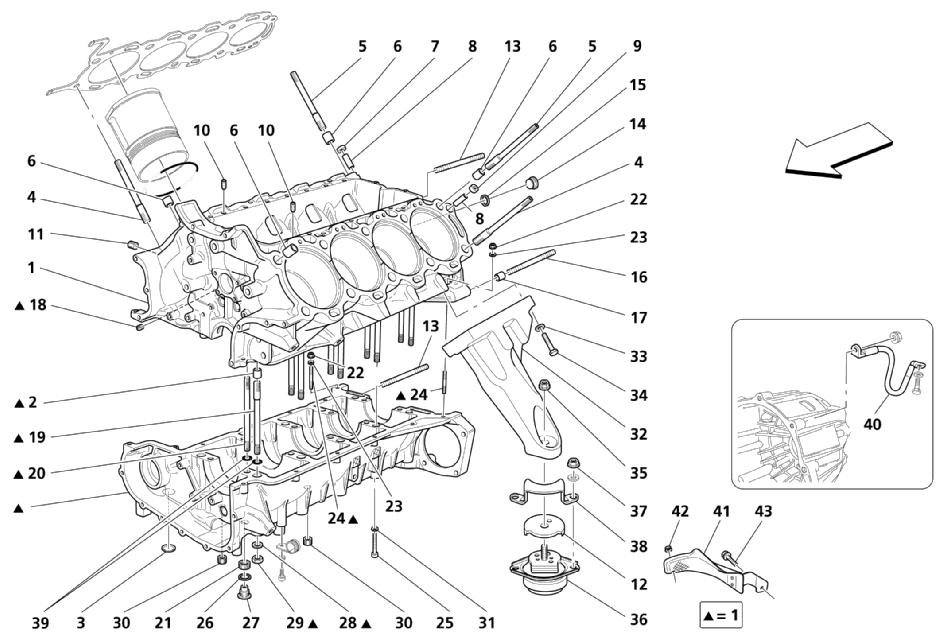

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 224857 *Qty: 1 COMPLETE CRANKCASE Call
Location: 2 Prev | Next Part: 176421 *Qty: 10 CENTERING DOWEL $5.22
Location: 3 Prev | Next Part: 10158801 *Qty: 1 PLUG $1.79
Location: 4 Prev | Next Part: 194754 *Qty: 10 STUD $15.20
Location: 5 Prev | Next Part: 194755 *Qty: 10 STUD $111.62
Location: 6 Prev | Next Part: 185360 *Qty: 4 CENTERING DOWEL $3.61
Location: 7 Prev | Next Part: 194773 *Qty: 1 DOWEL $6.64
Location: 8 Prev | Next Part: 156862 *Qty: 2 NONRETURN VALVE $20.60
Location: 9 Prev | Next Part: 184045 *Qty: 1 DOWEL $6.64
Location: 10 Prev | Next Part: 177727 *Qty: 2 CENTERING DOWEL $3.14
Location: 11 Prev | Next Part: 164400 *Qty: 1 THREADED PLUG $4.55
Location: 12 Prev | Next Part: 196590 *Qty: 2 UPPER PROTECTION FOR ENGINE PAD $6.12
Location: 13 Prev | Next Part: 13547134 *Qty: 2 STUD $1.18
Location: 14 Prev | Next Part: 193885 *Qty: 1 THREADED PLUG $4.59
Location: 15 Prev | Next Part: 10263460 *Qty: 1 GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- Superseded
Location: 16 Prev | Next Part: 13547034 *Qty: 1 STUD $2.71
Location: 16 Prev | Next Part: 13546934 *Qty: 4 STUD $1.94
Location: 17 Prev | Next Part: 100052 *Qty: 2 CENTERING DOWEL $2.76
Location: 18 Prev | Next Part: 13525770 *Qty: 5 THREADED INSERT $0.90
Location: 19 Prev | Next Part: 194756 *Qty: 10 STUD $11.41
Location: 20 Prev | Next Part: 215652 *Qty: 10 STUD $8.58
Location: 21 Prev | Next Part: 223577 *Qty: 1 THREADED INSERT -As an alternative- $3.00
Location: 21 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $5.06
Location: 22 Prev | Next Part: 132877 *Qty: 2 NUT $3.78
Location: 23 Prev | Next Part: 12604274 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 13541624 *Qty: 2 STUD $0.90
Location: 25 Prev | Next Part: 14432224 *Qty: 1 SCREW Superseded
Location: 25 Prev | Next Part: 14305424 *Qty: 10 SCREW Superseded
Location: 26 Prev | Next Part: 10261860 *Qty: 1 GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $0.90
Location: 27 Prev | Next Part: 104280 *Qty: 1 THREADED PLUG $6.54
Location: 28 Prev | Next Part: 178348 *Qty: 20 WASHER $0.93
Location: 29 Prev | Next Part: 133988 *Qty: 20 NUT $0.90
Location: 30 Prev | Next Part: 14325140 *Qty: 4 THREADED PLUG $1.86
Location: 31 Prev | Next Part: 11197774 *Qty: 11 WASHER Superseded
Location: 32 Prev | Next Part: 199850 *Qty: 1 R.H. BRACKET FOR MOTOR FIXING $336.42
Location: 32 Prev | Next Part: 199851 *Qty: 1 L.H. BRACKET FOR MOTOR FIXING $378.95
Location: 33 Prev | Next Part: 11190574 *Qty: 10 WASHER $0.90
Location: 34 Prev | Next Part: 15970934 *Qty: 10 SCREW $2.02
Location: 35 Prev | Next Part: 177018 *Qty: 2 NUT $1.46
Location: 36 Prev | Next Part: 225839 *Qty: 2 ENGINE SUPPORT FLEXIBLE PAD $259.98
Location: 37 Prev | Next Part: 177764 *Qty: 4 NUT $0.90
Location: 38 Prev | Next Part: 198530 *Qty: 2 BRACKET $11.92
Location: 39 Prev | Next Part: 134704 *Qty: 20 O.R. GASKET $0.90
Location: 40 Prev | Next Part: 200164 *Qty: 1 CABLE FOR ENGINE-FRAME EARTH $56.06
Location: 41 Prev | Next Part: 227526 *Qty: 1 L.H. HEAT SHIELD $63.43
Location: 41 Prev | Next Part: 227525 *Qty: 1 R.H. HEAT SHIELD $58.73
Location: 42 Prev | Next Part: 14058411 *Qty: 2 NUT Superseded
Location: 43 Prev | Next Part: 13833011 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
