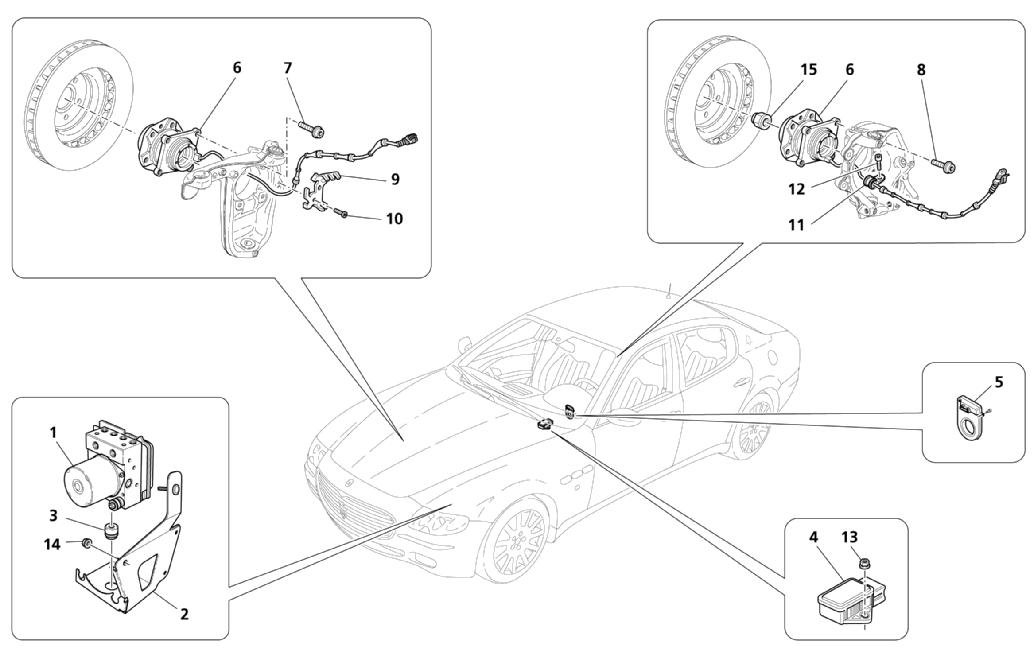

BRAKING CONTROL SYSTEMS

Go to Split View

BRAKING CONTROL SYSTEMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 227571 *Qty: 1 ABS/ASR HYDRAULIC GROUP $2,145.56
Location: 2 Prev | Next Part: 207442 *Qty: 1 ABS/ASR HYDRAULIC GROUP FIXING BRACKET Call
Location: 3 Prev | Next Part: 202555 *Qty: 1 RESILIENT BUSHING $0.90
Location: 4 Prev | Next Part: 206070 *Qty: 1 VAW SENSOR $334.99
Location: 5 Prev | Next Part: 188171 *Qty: 1 STEERING ANGLE SENSOR -Included in the complete unhook deviation (Draw 8.50 Pos. 15)- $310.25
Location: 6 Prev | Next Part: 197118 *Qty: 4 COMPLETE BEARING WHEEL $875.77
Location: 7 Prev | Next Part: 203135 *Qty: 8 SCREW $4.82
Location: 8 Prev | Next Part: 190723 *Qty: 8 SCREW $12.41
Location: 9 Prev | Next Part: 197060 *Qty: 1 L.H. BRACKET Call
Location: 9 Prev | Next Part: 197061 *Qty: 1 R.H. BRACKET $21.14
Location: 10 Prev | Next Part: 204177 *Qty: 2 SCREW $2.47
Location: 11 Prev | Next Part: 10440890 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 12 Prev | Next Part: 204177 *Qty: 2 SCREW $2.47
Location: 13 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 14040614 *Qty: 3 NUT $0.90
Location: 15 Prev | Next Part: 203780 *Qty: 2 NUT $28.52

* Quantity shown indicates the number of pieces used in the diagram.
