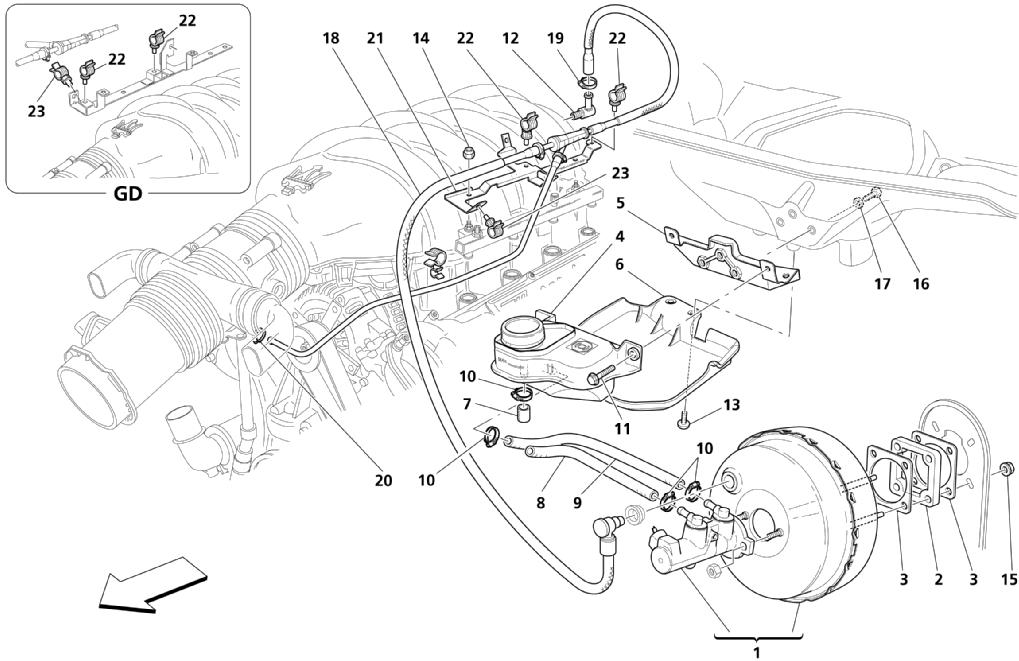

BRAKE BOOSTER SYSTEM

Go to Split View

BRAKE BOOSTER SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 204154 *Qty: 1 COMPLETE BRAKE BOOSTER $384.38
Location: 2 Prev | Next Part: 196080 *Qty: 1 SPACER $39.62
Location: 3 Prev | Next Part: 190378 *Qty: 2 GASKET $1.22
Location: 4 Prev | Next Part: 203903 *Qty: 1 OIL BRAKEPAN $48.29
Location: 5 Prev | Next Part: 203979 *Qty: 1 BRACKET FOR FUEL FIXING -Valid for GD- Call
Location: 5 Prev | Next Part: 199057 *Qty: 1 BRACKET FOR FUEL FIXING -Not for GD- Call
Location: 6 Prev | Next Part: 228872 *Qty: 1 SHIELD -Not for GD- Call
Location: 6 Prev | Next Part: 200464 *Qty: 1 SHIELD -Valid for GD- Call
Location: 7 Prev | Next Part: 136379 *Qty: 1 PLUG $5.03
Location: 8 Prev | Next Part: 200462 *Qty: 1 PIPE FOR FEED FRONT PUMP -Valid for GD- Call
Location: 8 Prev | Next Part: 198852 *Qty: 1 PIPE FOR FEED FRONT PUMP -Not for GD- Call
Location: 9 Prev | Next Part: 200463 *Qty: 1 PIPE FOR FEED REAR PUMP -Valid for GD- Call
Location: 9 Prev | Next Part: 198853 *Qty: 1 PIPE FOR FEED REAR PUMP -Not for GD- Call
Location: 10 Prev | Next Part: 13000190 *Qty: 5 SCREW COLLAR $0.90
Location: 11 Prev | Next Part: 11612824 *Qty: 2 SCREW Call
Location: 12 Prev | Next Part: 124342 *Qty: 1 THREADED UNION $5.56
Location: 13 Prev | Next Part: 15784004 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: 14040715 *Qty: 2 NUT -Not for GD- $0.90
Location: 15 Prev | Next Part: 12578211 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 10902111 *Qty: 3 SCREW Superseded
Location: 17 Prev | Next Part: 12639724 *Qty: 3 WASHER $0.90
Location: 18 Prev | Next Part: 208037 *Qty: 1 COMPLETE DEPRESSION PIPE -Valid for GD- Call
Location: 18 Prev | Next Part: 205780 *Qty: 1 COMPLETE DEPRESSION PIPE -Not for GD- $113.94
Location: 19 Prev | Next Part: 13432070 *Qty: 1 SCREW COLLAR $0.90
Location: 20 Prev | Next Part: 13432270 *Qty: 1 SCREW COLLAR $0.90
Location: 21 Prev | Next Part: 199590 *Qty: 1 L.H. BRACKET -Not for GD- Call
Location: 22 Prev | Next Part: 206536 *Qty: 2 CLIP $0.90
Location: 23 Prev | Next Part: 67063200 *Qty: 2 CLIP -(Quantity 1 for cars GD)- $1.58

* Quantity shown indicates the number of pieces used in the diagram.
