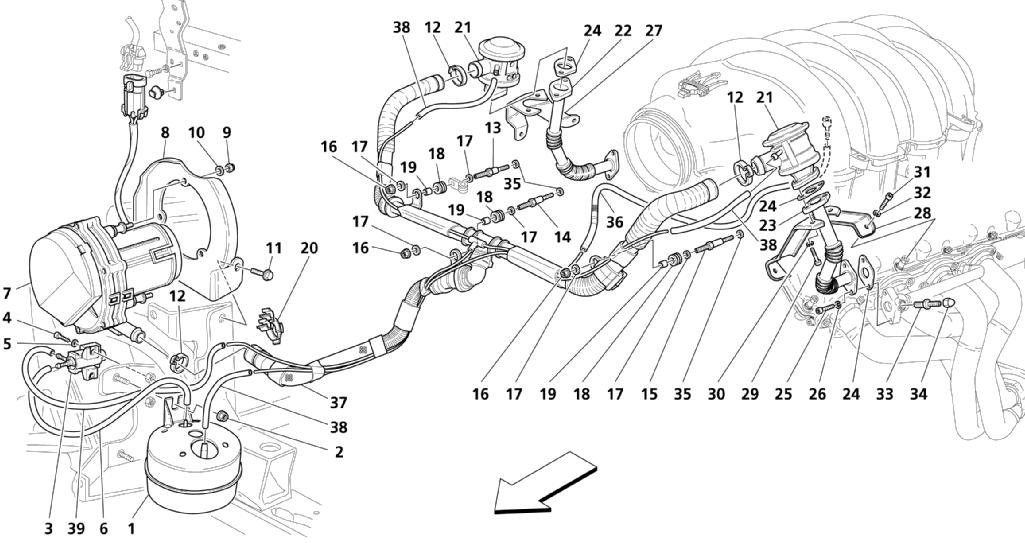

ADDITIONAL AIR SYSTEM

Go to Split View

ADDITIONAL AIR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 330328400 *Qty: 1 VACUUM TANK $22.85
Location: 2 Prev | Next Part: 14059211 *Qty: 2 NUT $0.90
Location: 3 Prev | Next Part: 184363 *Qty: 1 ON/OFF SOLENOID VALVE $60.41
Location: 4 Prev | Next Part: 14304224 *Qty: 2 SCREW $0.90
Location: 5 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 200131 *Qty: 1 SLEEVE Call
Location: 7 Prev | Next Part: 181197 *Qty: 1 SECONDARY AIR PUMP $535.69
Location: 8 Prev | Next Part: 188210 *Qty: 1 AIR PUMP FIXING BRACKET $22.76
Location: 9 Prev | Next Part: 102948 *Qty: 3 NUT $0.90
Location: 10 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 11 Prev | Next Part: 16281921 *Qty: 2 SCREW $1.24
Location: 12 Prev | Next Part: 226356 *Qty: 3 CLAMP $0.90
Location: 13 Prev | Next Part: 194437 *Qty: 1 STUD $14.24
Location: 14 Prev | Next Part: 199865 *Qty: 1 STUD $9.72
Location: 15 Prev | Next Part: 199852 *Qty: 1 STUD $31.69
Location: 16 Prev | Next Part: 159601 *Qty: 3 NUT Call
Location: 17 Prev | Next Part: 12647729 *Qty: 6 WASHER $0.90
Location: 18 Prev | Next Part: 219456 *Qty: 3 ANTI-VIBRATION SUPPORT -Valid after stock exhaustion of 315520375- $1.24
Location: 18 Prev | Next Part: 315520375 *Qty: 3 ANTI-VIBRATION SUPPORT -Valid till stock exhaustion- $1.10
Location: 19 Prev | Next Part: 219457 *Qty: 3 SPACER -Valid after stock exhaustion of 397850624- $2.90
Location: 19 Prev | Next Part: 397850624 *Qty: 3 SPACER -Valid till stock exhaustion- $2.91
Location: 20 Prev | Next Part: 209670 *Qty: 3 CLIP Call
Location: 21 Prev | Next Part: 171175 *Qty: 2 SECONDARY AIR VALVE $128.08
Location: 22 Prev | Next Part: 210203 *Qty: 1 R.H. AIR VALVE PIPE Call
Location: 23 Prev | Next Part: 204417 *Qty: 1 L.H. AIR VALVE PIPE $113.62
Location: 24 Prev | Next Part: 186781 *Qty: 4 GASKET $5.64
Location: 25 Prev | Next Part: 14305724 *Qty: 4 SCREW $0.90
Location: 26 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 210202 *Qty: 1 R.H. AIR VALVE FIXING BRACKET Call
Location: 28 Prev | Next Part: 211218 *Qty: 1 L.H. AIR VALVE FIXING BRACKET $15.18
Location: 29 Prev | Next Part: 14433124 *Qty: 4 SCREW $0.90
Location: 30 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 31 Prev | Next Part: 198312 *Qty: 4 SCREW Call
Location: 32 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 33 Prev | Next Part: 152630 *Qty: 2 THREADED UNION $65.39
Location: 34 Prev | Next Part: 150595 *Qty: 2 CAP NUT $1.17
Location: 35 Prev | Next Part: 11197774 *Qty: 3 WASHER Superseded
Location: 36 Prev | Next Part: 224508 *Qty: 1 RUBBER HOSE $10.88
Location: 37 Prev | Next Part: 222216 *Qty: 1 COMPLETE SECONDARY AIR PIPE $221.81
Location: 38 Prev | Next Part: 115666 *Qty: 3 RUBBER HOSE $21.63
Location: 39 Prev | Next Part: 115412 *Qty: 1 RUBBER HOSE $4.69

* Quantity shown indicates the number of pieces used in the diagram.
