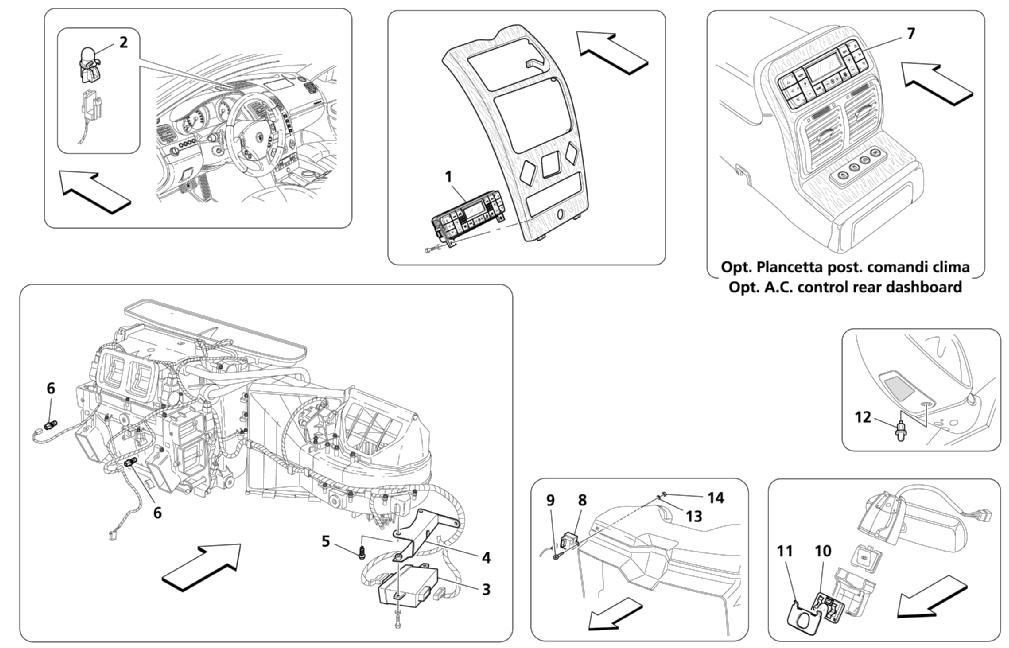

A.C. GROUP: ELECTRONIC CONTROL

Go to Split View

A.C. GROUP: ELECTRONIC CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 221237 *Qty: 1 A.C. CONTROL DASHBOARD $1,338.84
Location: 2 Prev | Next Part: 190938 *Qty: 1 SOLAR SENSOR $146.65
Location: 3 Prev | Next Part: 228187 *Qty: 1 A.C. CONTROL UNIT -Optional- -A.C. control rear dashboard- $828.54
Location: 3 Prev | Next Part: 228186 *Qty: 1 A.C. CONTROL UNIT -Standard- $822.31
Location: 4 Prev | Next Part: 68392200 *Qty: 1 CONTROL UNIT FIXING BRACKET -Included in the complete air condition set (Draw 8.41 Pos. 1)- Call
Location: 5 Prev | Next Part: 68391900 *Qty: 0 SCREW -Included in the complete air condition set (Draw 8.41 Pos. 1)- $0.90
Location: 6 Prev | Next Part: 68390100 *Qty: 2 SENSOR AIR -Included in the complete air condition set (Draw 8.41 Pos. 1)- $15.58
Location: 7 Prev | Next Part: 221238 *Qty: 1 A.C. REAR CONTROL DASHBOARD -Optional- -A.C. control rear dashboard- $1,847.75
Location: 8 Prev | Next Part: 67447600 *Qty: 1 AQS SENSOR $222.54
Location: 9 Prev | Next Part: 14304624 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 67447700 *Qty: 1 DEFOGGING SENSOR $290.33
Location: 11 Prev | Next Part: 67881900 *Qty: 1 COVER $15.27
Location: 12 Prev | Next Part: 980139360 *Qty: 1 OUTER TEMPERATURE SENSOR -Included in the complete l.h. outer rear view mirror (Draw 9.35 Pos. 2)- $44.96
Location: 13 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 14048615 *Qty: 2 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
