A.C. GROUP: DIFFUSION

in cart

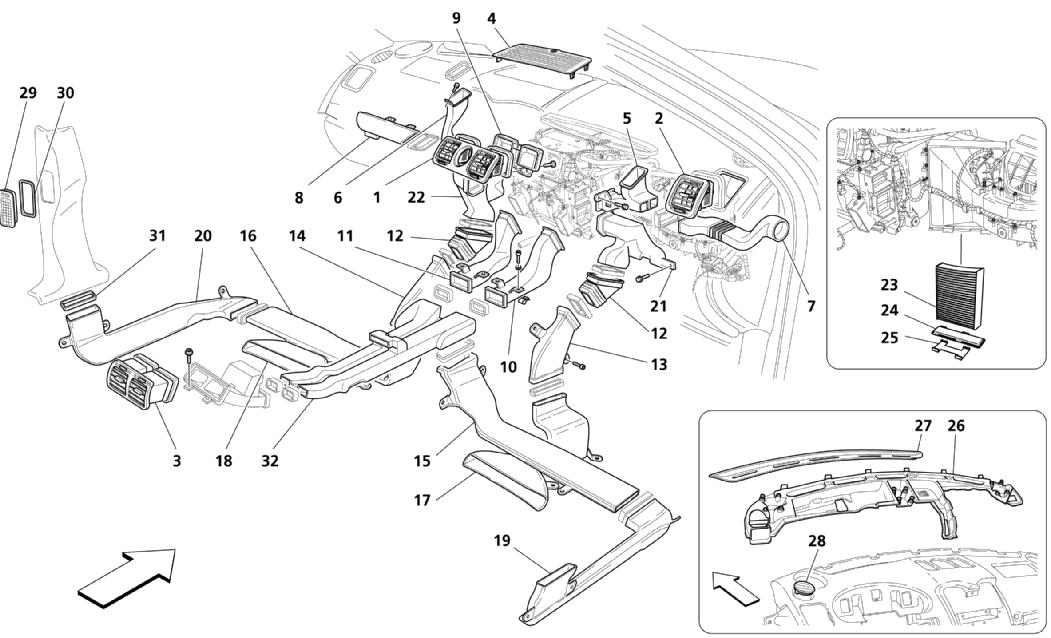

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66526500 *Qty: 1 CENTRAL OPENING $151.12
Location: 2 Prev | Next Part: 66527400 *Qty: 2 LATERAL AIR OPENING $198.87
Location: 3 Prev | Next Part: 67211900 *Qty: 1 REAR AIR OPENING $158.16
Location: 4 Prev | Next Part: 66526700 *Qty: 1 CENTRAL AIR DIFFUSER $33.68
Location: 5 Prev | Next Part: 67715300 *Qty: 1 R.H. CENTRAL OPENING UNION -Valid for GD- Call
Location: 5 Prev | Next Part: 69632000 *Qty: 1 R.H. CENTRAL OPENING UNION -Not for GD- Call
Location: 6 Prev | Next Part: 66524900 *Qty: 1 L.H. CENTRAL OPENING UNION -Not for GD- $48.54
Location: 6 Prev | Next Part: 66819500 *Qty: 1 L.H. CENTRAL OPENING UNION -Valid for GD- Call
Location: 7 Prev | Next Part: 68196100 *Qty: 1 R.H. AIR DUCTING CONNECTION -Valid for GD- Call
Location: 7 Prev | Next Part: 67207300 *Qty: 1 R.H. LATERAL OPENING CONNECTION -Not for GD- Call
Location: 8 Prev | Next Part: 67723300 *Qty: 1 L.H. LATERAL OPENING CONNECTION -Valid for GD- Call
Location: 8 Prev | Next Part: 67488800 *Qty: 1 L.H. AIR DUCTING CONNECTION -Not for GD- $44.09
Location: 9 Prev | Next Part: 69631900 *Qty: 1 CENTRAL OPENING UNION Call
Location: 10 Prev | Next Part: 69290800 *Qty: 1 R.H. UNION Call
Location: 11 Prev | Next Part: 69290900 *Qty: 1 L.H. UNION Call
Location: 12 Prev | Next Part: 67211300 *Qty: 2 AIR UNION Call
Location: 13 Prev | Next Part: 66552900 *Qty: 1 R.H. AIR DUCTING FOOT-REST Call
Location: 14 Prev | Next Part: 66552800 *Qty: 1 L.H. AIR DUCTING FOOT-REST Call
Location: 15 Prev | Next Part: 69633500 *Qty: 1 AIR DUCTING FROM TUNNEL TO R.H. PILLAR Call
Location: 16 Prev | Next Part: 69633600 *Qty: 1 AIR DUCTING FROM TUNNEL TO L.H. PILLAR Call
Location: 17 Prev | Next Part: 69286800 *Qty: 1 R.H. REAR AIR DUCTING -Valid for USA- Call
Location: 17 Prev | Next Part: 69633000 *Qty: 1 R.H. REAR AIR DUCTING -Not for USA- Call
Location: 18 Prev | Next Part: 69633100 *Qty: 1 L.H. REAR AIR DUCTING Call
Location: 19 Prev | Next Part: 67211500 *Qty: 1 AIR DUCTING FOR R.H. CENTRAL PILLAR Call
Location: 20 Prev | Next Part: 67211600 *Qty: 1 AIR DUCTING FOR L.H. CENTRAL PILLAR Call
Location: 21 Prev | Next Part: 67715400 *Qty: 1 R.H. FRONT AIR DUCTING -Valid for GD- Call
Location: 21 Prev | Next Part: 66525100 *Qty: 1 R.H. FRONT AIR DUCTING -Not for GD- $65.77
Location: 22 Prev | Next Part: 67715500 *Qty: 1 L.H. FRONT AIR DUCTING -Valid for GD- Call
Location: 22 Prev | Next Part: 66525200 *Qty: 1 L.H. FRONT AIR DUCTING -Not for GD- $65.77
Location: 23 Prev | Next Part: 66855200 *Qty: 1 ANTI-POLLEN FILTER -Included in the complete air condition set (Draw 8.41 Pos. 1)- $118.69
Location: 24 Prev | Next Part: 68390600 *Qty: 1 FILTER COVER -Included in the complete air condition set (Draw 8.41 Pos. 1)- $46.61
Location: 25 Prev | Next Part: 68390700 *Qty: 1 COVER FIXING -Included in the complete air condition set (Draw 8.41 Pos. 1)- $62.92
Location: 26 Prev | Next Part: 980139564 *Qty: 1 COMPLETE AIR DUCTING -Valid for GD- -Included in the complete dashboard body (Draw 9.50 Pos. 1)- $142.50
Location: 26 Prev | Next Part: 980139563 *Qty: 1 COMPLETE AIR DUCTING -Not for GD- -Included in the complete dashboard body (Draw 9.50 Pos. 1)- $142.50
Location: 27 Prev | Next Part: 69633400 *Qty: 1 DEFROSTER PLATE $217.66
Location: 28 Prev | Next Part: 67579600 *Qty: 1 L.H. DEFROSTER GRILL $29.75
Location: 28 Prev | Next Part: 66935600 *Qty: 1 R.H. DEFROSTER GRILL $29.75
Location: 29 Prev | Next Part: 9813080.. *Qty: 1 R.H. AIR OUTLET OPENING -Included in the complete r.h. lower central post covering (Draw 9.44 Pos. 6)- Call
Location: 29 Prev | Next Part: 9813081.. *Qty: 1 L.H. AIR OUTLET OPENING Call
Location: 30 Prev | Next Part: 67266400 *Qty: 2 UPPER GASKET -Included in the complete lower central post covering (Draw 9.44 Pos. 6 and 7)- $36.84
Location: 31 Prev | Next Part: 67266500 *Qty: 2 LOWER GASKET -Included in the complete lower central post covering (Draw 9.44 Pos. 6 and 7)- Call
Location: 32 Prev | Next Part: 980139565 *Qty: 1 COMPLETE CENTRAL AIR DUCTING $97.09

* Quantity shown indicates the number of pieces used in the diagram.
