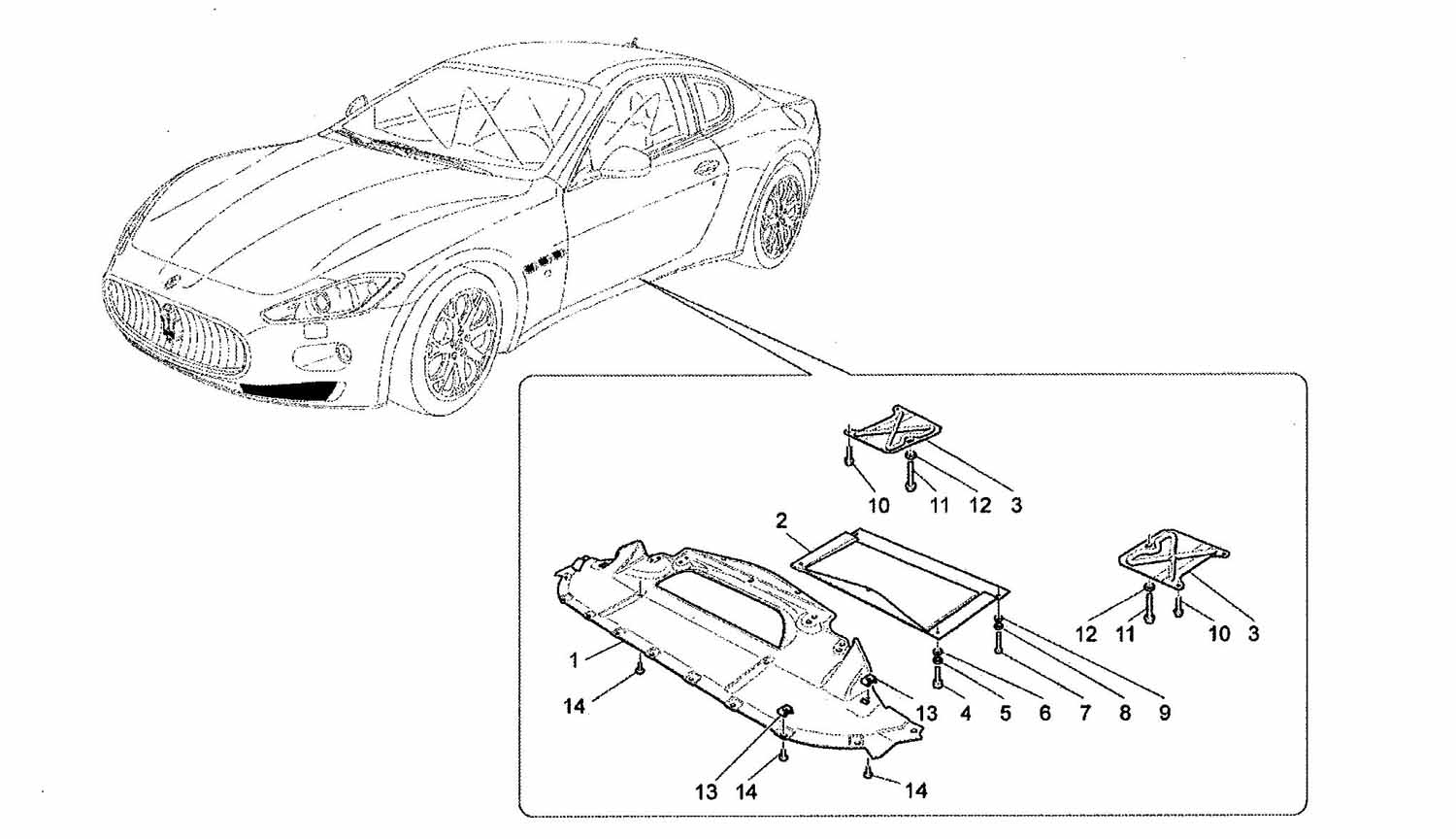

UNDERBODY GUARDS

Go to Split View

UNDERBODY GUARDS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 81263400 *Qty: 1 Front Aerodynamic Shield $177.25
Location: 2 Prev | Next Part: 67960100 *Qty: 1 Under Frame Shield $175.31
Location: 3 Prev | Next Part: 67576300 *Qty: 2 Cover For Piping $14.69
Location: 4 Prev | Next Part: 15970324 *Qty: 2 Screw $0.90
Location: 5 Prev | Next Part: 12601474 *Qty: 2 Washer $0.90
Location: 6 Prev | Next Part: 12646824 *Qty: 2 Washer $0.90
Location: 7 Prev | Next Part: 10902524 *Qty: 3 Screw $0.90
Location: 8 Prev | Next Part: 12601274 *Qty: 3 Washer $0.90
Location: 9 Prev | Next Part: 12640624 *Qty: 3 Washer $0.90
Location: 10 Prev | Next Part: 11617324 *Qty: 4 Screw $2.86
Location: 11 Prev | Next Part: 13217434 *Qty: 2 Screw $7.00
Location: 12 Prev | Next Part: 12646934 *Qty: 2 Washer $0.99
Location: 13 Prev | Next Part: 80093600 *Qty: 13 Clip $22.09
Location: 14 Prev | Next Part: 51810310 *Qty: 11 Screw Fixing $2.86

* Quantity shown indicates the number of pieces used in the diagram.
