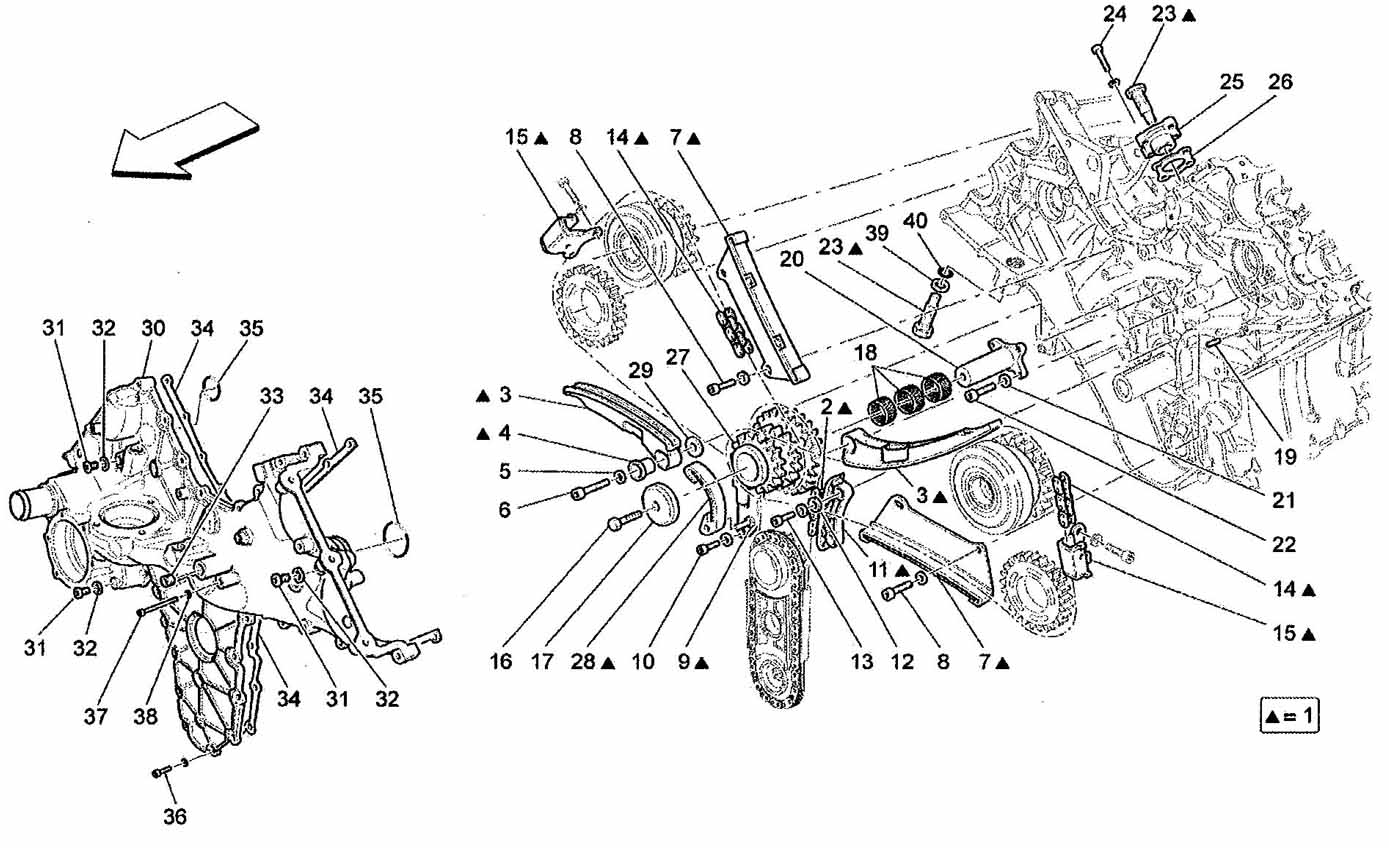

TIMING

Go to Split View

TIMING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 231104 *Qty: 1 Oil Pump And Timing Control Assembly Call
Location: 2 Prev | Next Part: 175286 *Qty: 1 Transmission Chain $48.48
Location: 3 Prev | Next Part: 186184 *Qty: 2 Mobile Guide Shoe $98.67
Location: 4 Prev | Next Part: 175303 *Qty: 2 Bushing $13.85
Location: 5 Prev | Next Part: 10569373 *Qty: 2 Washer $0.90
Location: 6 Prev | Next Part: 14306424 *Qty: 2 Screw $0.90
Location: 7 Prev | Next Part: 186185 *Qty: 2 Fixed Tension $63.47
Location: 8 Prev | Next Part: 231627 *Qty: 4 Screw $0.90
Location: 9 Prev | Next Part: 186159 *Qty: 1 Guide Shoe Support $32.44
Location: 10 Prev | Next Part: 231616 *Qty: 2 Screw $0.90
Location: 11 Prev | Next Part: 186181 *Qty: 1 Fixed Tension $25.93
Location: 12 Prev | Next Part: 11197774 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 231619 *Qty: 2 Screw $0.90
Location: 14 Prev | Next Part: 193616 *Qty: 2 Timing Control Chain $81.48
Location: 15 Prev | Next Part: 222310 *Qty: 2 Upper Fixed Tension $52.81
Location: 16 Prev | Next Part: 16043124 *Qty: 1 Screw $0.90
Location: 17 Prev | Next Part: 194262 *Qty: 1 Shoulder $41.12
Location: 18 Prev | Next Part: 175282 *Qty: 3 Roller Cage $11.75
Location: 19 Prev | Next Part: 175611 *Qty: 2 Centering Dowel $2.14
Location: 20 Prev | Next Part: 212970 *Qty: 1 Support $161.75
Location: 21 Prev | Next Part: 11181574 *Qty: 4 Washer $0.90
Location: 22 Prev | Next Part: 14304224 *Qty: 4 Screw $0.90
Location: 23 Prev | Next Part: 230652 *Qty: 2 Hydraulic Tightener $168.89
Location: 24 Prev | Next Part: 231619 *Qty: 4 Screw $0.90
Location: 25 Prev | Next Part: 190060 *Qty: 1 Bushing For Tightener $44.52
Location: 26 Prev | Next Part: 247147 *Qty: 1 Gasket $2.73
Location: 27 Prev | Next Part: 193565 *Qty: 1 Transmission Toothed Wheel $134.38
Location: 28 Prev | Next Part: 196683 *Qty: 1 Chain Tensioner $48.56
Location: 29 Prev | Next Part: 175306 *Qty: 2 Shoulder $5.22
Location: 30 Prev | Next Part: 248715 *Qty: 1 Complete Front Cover Call
Location: 31 Prev | Next Part: 224314 *Qty: 3 Plug $4.23
Location: 32 Prev | Next Part: 10296160 *Qty: 3 Gasket $0.90
Location: 33 Prev | Next Part: 14324940 *Qty: 1 Threaded Plug $2.19
Location: 34 Prev | Next Part: 238690 *Qty: 1 Front Cover Gasket $65.69
Location: 35 Prev | Next Part: 183010 *Qty: 2 O.R. Gasket $1.90
Location: 36 Prev | Next Part: 231617 *Qty: 21 Screw Rond.. M6x18 $0.90
Location: 36 Prev | Next Part: 231622 *Qty: 11 Screw M6x35 $0.90
Location: 36 Prev | Next Part: 231617 *Qty: 21 Screw M 6x18 $0.90
Location: 36 Prev | Next Part: 231622 *Qty: 11 Screw M 6x35 $0.90
Location: 37 Prev | Next Part: 10589624 *Qty: 1 Screw M 6x80 $0.90
Location: 38 Prev | Next Part: 11197774 *Qty: 1 Washer Superseded
Location: 39 Prev | Next Part: 190171 *Qty: 1 Spacer $8.27
Location: 40 Prev | Next Part: 192069 *Qty: 1 O.R. Gasket $0.90

* Quantity shown indicates the number of pieces used in the diagram.
