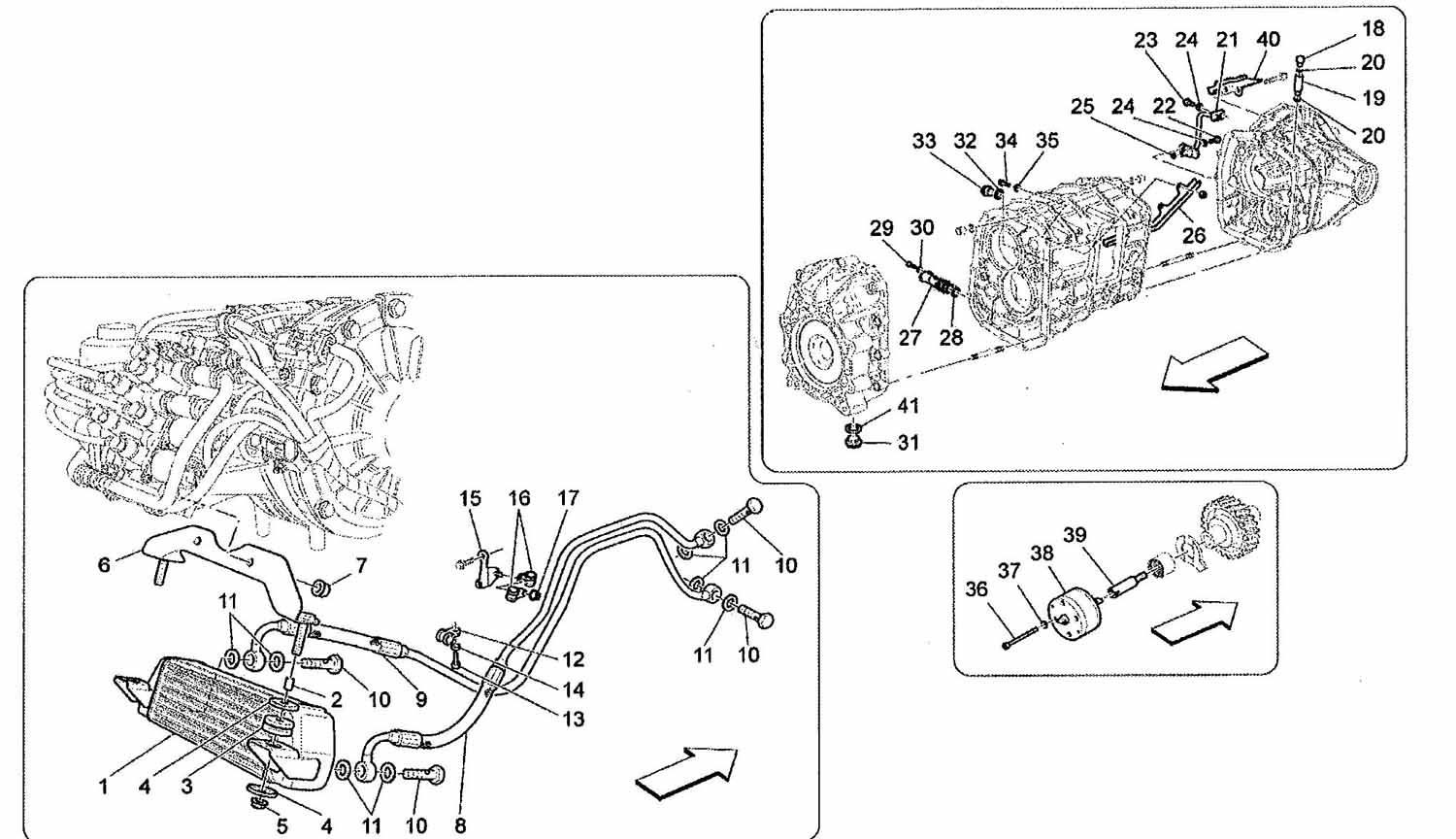

LUBRICATION AND GEARBOX OIL COOLING

Go to Split View

LUBRICATION AND GEARBOX OIL COOLING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 243209 *Qty: 1 Oil Radiator Call
Location: 2 Prev | Next Part: 107980 *Qty: 2 Spacer $7.64
Location: 3 Prev | Next Part: 184519 *Qty: 2 Pad $1.24
Location: 4 Prev | Next Part: 12646724 *Qty: 4 Washer $0.90
Location: 5 Prev | Next Part: 14058511 *Qty: 2 Nut $0.90
Location: 6 Prev | Next Part: 243210 *Qty: 1 Bracket Call
Location: 7 Prev | Next Part: 14058511 *Qty: 2 Nut $0.90
Location: 8 Prev | Next Part: 243211 *Qty: 1 Gearbox Oil Delivery Tube Call
Location: 9 Prev | Next Part: 243664 *Qty: 1 Gearbox Oil Return Tube Call
Location: 10 Prev | Next Part: 178719 *Qty: 4 Union $8.52
Location: 11 Prev | Next Part: 10280060 *Qty: 8 Gasket $0.90
Location: 12 Prev | Next Part: 10441290 *Qty: 2 Bracket With Sheath $0.90
Location: 13 Prev | Next Part: 14305024 *Qty: 2 Screw $0.90
Location: 14 Prev | Next Part: 12604274 *Qty: 2 Washer $0.90
Location: 15 Prev | Next Part: 199117 *Qty: 1 Bracket Call
Location: 16 Prev | Next Part: 10441290 *Qty: 2 Bracket With Sheath $0.90
Location: 17 Prev | Next Part: 14058411 *Qty: 1 Nut Superseded
Location: 18 Prev | Next Part: 13414691 *Qty: 1 Oil Breather $15.57
Location: 19 Prev | Next Part: 186900 *Qty: 1 Adapter For Vent $77.17
Location: 20 Prev | Next Part: 13415400 *Qty: 2 Copper Gasket $0.90
Location: 21 Prev | Next Part: 219954 *Qty: 1 Lubrication Tube Call
Location: 22 Prev | Next Part: 10902224 *Qty: 1 Screw $0.90
Location: 23 Prev | Next Part: 10979424 *Qty: 1 Screw $0.90
Location: 24 Prev | Next Part: 11194377 *Qty: 2 Washer $0.90
Location: 25 Prev | Next Part: 137192 *Qty: 1 O.R. Gasket $0.90
Location: 26 Prev | Next Part: 185714 *Qty: 1 Oil Tile $7.45
Location: 27 Prev | Next Part: 182416 *Qty: 1 Oil Filter $76.47
Location: 28 Prev | Next Part: 182119 *Qty: 1 O.R. Gasket $2.96
Location: 29 Prev | Next Part: 10977624 *Qty: 1 Screw $0.90
Location: 30 Prev | Next Part: 11199277 *Qty: 1 Washer $0.90
Location: 31 Prev | Next Part: 183962 *Qty: 1 Threaded Plug $23.33
Location: 32 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 33 Prev | Next Part: 10305111 *Qty: 1 Threaded Plug $8.63
Location: 34 Prev | Next Part: 16286121 *Qty: 2 Screw $0.90
Location: 35 Prev | Next Part: 10297760 *Qty: 2 Gasket $0.90
Location: 36 Prev | Next Part: 14303624 *Qty: 4 Screw $0.90
Location: 37 Prev | Next Part: 10571379 *Qty: 4 Washer $0.90
Location: 38 Prev | Next Part: 182279 *Qty: 1 Complete Oil Pump $502.77
Location: 39 Prev | Next Part: 198622 *Qty: 1 Pin Call
Location: 40 Prev | Next Part: 185713 *Qty: 1 Oil Conveyor $22.94
Location: 41 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded

* Quantity shown indicates the number of pieces used in the diagram.
