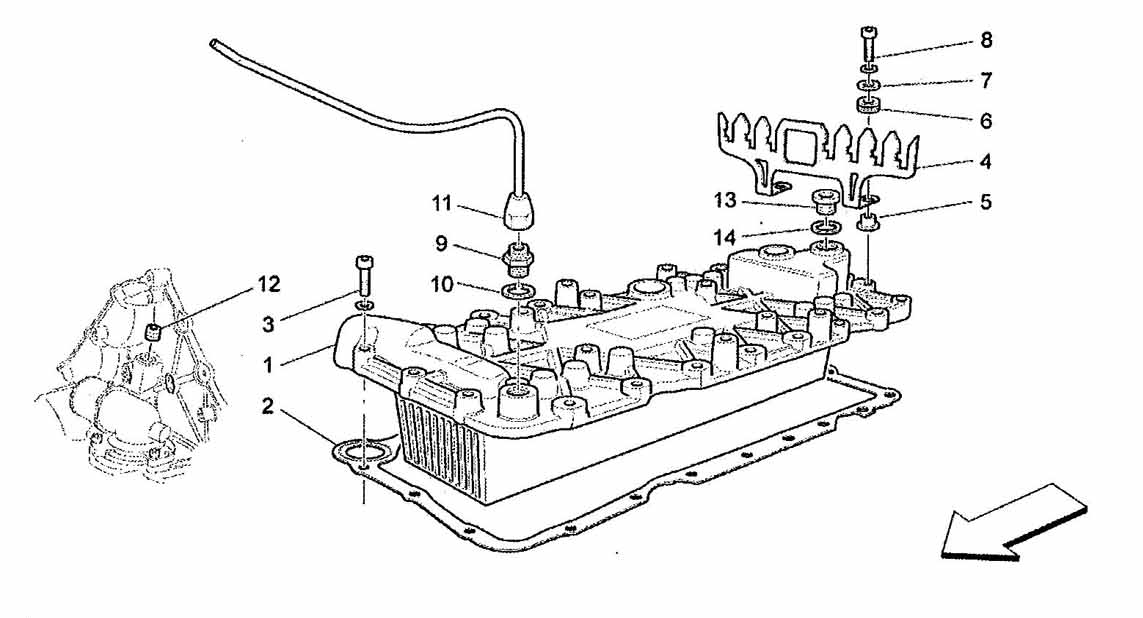

HEAT EXCHANGER

Go to Split View

HEAT EXCHANGER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 239136 *Qty: 1 Heat Exchanger Call
Location: 2 Prev | Next Part: 238689 *Qty: 1 Gasket $25.77
Location: 3 Prev | Next Part: 231620 *Qty: 18 Screw M 6x25 $0.90
Location: 3 Prev | Next Part: 231621 *Qty: 5 Screw M 6x30 $0.90
Location: 4 Prev | Next Part: 225828 *Qty: 1 Bracket Call
Location: 5 Prev | Next Part: 149707 *Qty: 2 Spacer $1.41
Location: 6 Prev | Next Part: 177576 *Qty: 2 Cable Grommet $2.71
Location: 7 Prev | Next Part: 12643724 *Qty: 2 Washer $0.90
Location: 8 Prev | Next Part: 231620 *Qty: 2 Screw $0.90
Location: 9 Prev | Next Part: 192327 *Qty: 1 Union $5.03
Location: 10 Prev | Next Part: 10284460 *Qty: 1 Gasket $0.90
Location: 11 Prev | Next Part: 246242 *Qty: 1 Water Vent Pipe Call
Location: 12 Prev | Next Part: 164400 *Qty: 1 Threaded Plug $4.54
Location: 13 Prev | Next Part: 150731 *Qty: 1 Threaded Plug $4.87
Location: 14 Prev | Next Part: 10280060 *Qty: 1 Gasket $0.90

* Quantity shown indicates the number of pieces used in the diagram.
