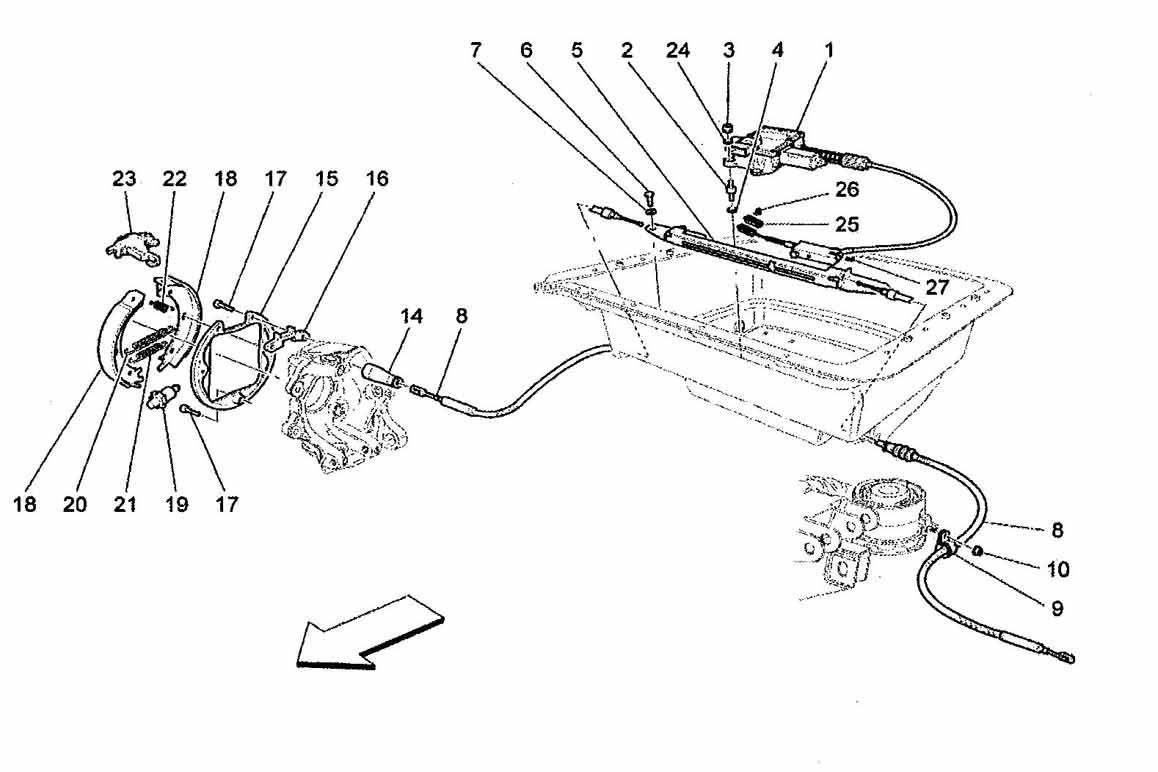

HANDBRAKE

Go to Split View

HANDBRAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 281371 *Qty: 1 Complete Electronic Actuator Call
Location: 2 Prev | Next Part: 239829 *Qty: 4 Pad Call
Location: 3 Prev | Next Part: 14059214 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 10523424 *Qty: 4 Washer $0.90
Location: 5 Prev | Next Part: 224010 *Qty: 1 Bracket $79.63
Location: 6 Prev | Next Part: 16043124 *Qty: 2 Screw $0.90
Location: 7 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 8 Prev | Next Part: 221901 *Qty: 2 Hand Brake Cable $331.85
Location: 9 Prev | Next Part: 10441290 *Qty: 2 Bracket With Sheath $0.90
Location: 10 Prev | Next Part: 14058411 *Qty: 2 Nut Superseded
Location: 14 Prev | Next Part: 143938 *Qty: 2 Cable Sheath $83.02
Location: 15 Prev | Next Part: 186574 *Qty: 2 Shoes Support Spacer $80.44
Location: 16 Prev | Next Part: 233371 *Qty: 2 Plate $7.34
Location: 17 Prev | Next Part: 190870 *Qty: 6 Screw $2.80
Location: 18 Prev | Next Part: 248418 *Qty: 4 Hand Brake Shoe $90.03
Location: 18 Prev | Next Part: 248418 *Qty: 4 Hand Brake Shoe $90.03
Location: 19 Prev | Next Part: 186572 *Qty: 2 Register For Hand Brake $76.65
Location: 20 Prev | Next Part: 190776 *Qty: 2 Return Spring For Brake Shoes $17.87
Location: 21 Prev | Next Part: 190779 *Qty: 2 Return Spring For Brake Shoes $6.31
Location: 22 Prev | Next Part: 190780 *Qty: 4 Spring For Shoes $5.80
Location: 23 Prev | Next Part: 253764 *Qty: 2 Hand Brake Control Lever $131.35
Location: 24 Prev | Next Part: 233582 *Qty: 4 Washer $0.90
Location: 25 Prev | Next Part: 245964 *Qty: 1 Cage $13.27
Location: 26 Prev | Next Part: 245162 *Qty: 1 Retaining Clip $4.89
Location: 27 Prev | Next Part: 239924 *Qty: 1 Retaining Clip $6.65

* Quantity shown indicates the number of pieces used in the diagram.
