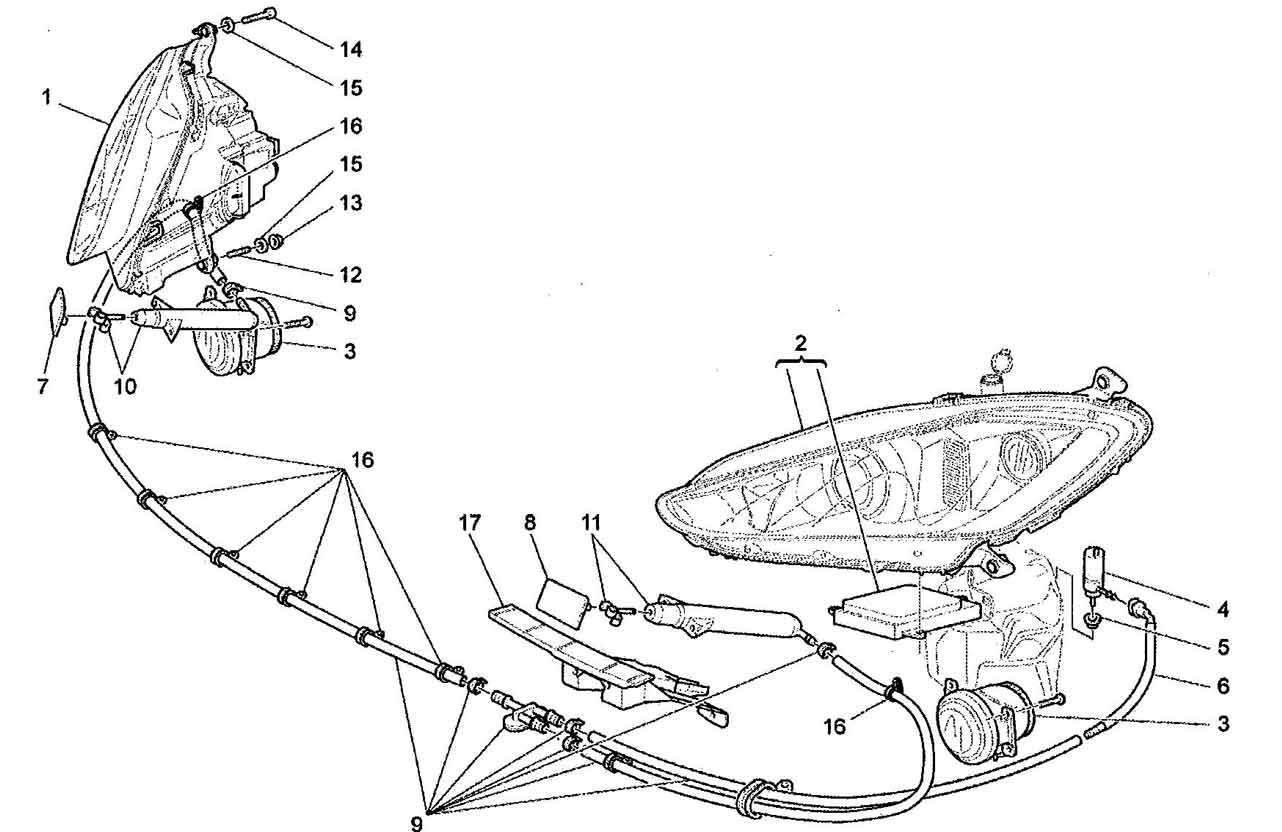

FRONT LIGHTING

Go to Split View

FRONT LIGHTING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 286381 *Qty: 1 R.H. Front Headlight Call
Location: 2 Prev | Next Part: 286382 *Qty: 1 L.H. Front Headlight Call
Location: 3 Prev | Next Part: 272726 *Qty: 2 Front Fog Lamp Call
Location: 4 Prev | Next Part: 65164700 *Qty: 1 Headlights Washer Pump $76.65
Location: 5 Prev | Next Part: 65511700 *Qty: 1 Gasket $3.98
Location: 6 Prev | Next Part: 80554300 *Qty: 1 Headlights Washer Union $32.11
Location: 7 Prev | Next Part: 80056810 *Qty: 1 R.H. Cover $54.03
Location: 8 Prev | Next Part: 80056710 *Qty: 1 L.H. Cover $54.03
Location: 9 Prev | Next Part: 980145141 *Qty: 1 Pipes For Headlight Washer System $119.01
Location: 10 Prev | Next Part: 980145142 *Qty: 1 R.H. Headlights Washer Telescopic $202.00
Location: 11 Prev | Next Part: 980145143 *Qty: 1 L.H. Headlights Washer Telescopic $202.00
Location: 12 Prev | Next Part: 13541724 *Qty: 2 Stud $2.07
Location: 13 Prev | Next Part: 13046114 *Qty: 2 Nut $0.90
Location: 14 Prev | Next Part: 16286524 *Qty: 4 Screw $0.90
Location: 15 Prev | Next Part: 12640604 *Qty: 6 Washer $0.90
Location: 16 Prev | Next Part: 10441590 *Qty: 8 Bracket With Sheath $0.90
Location: 17 Prev | Next Part: 80056300 *Qty: 1 L.H. Bracket $23.49
Location: 17 Prev | Next Part: 80056400 *Qty: 1 R.H. Bracket $23.49

* Quantity shown indicates the number of pieces used in the diagram.
