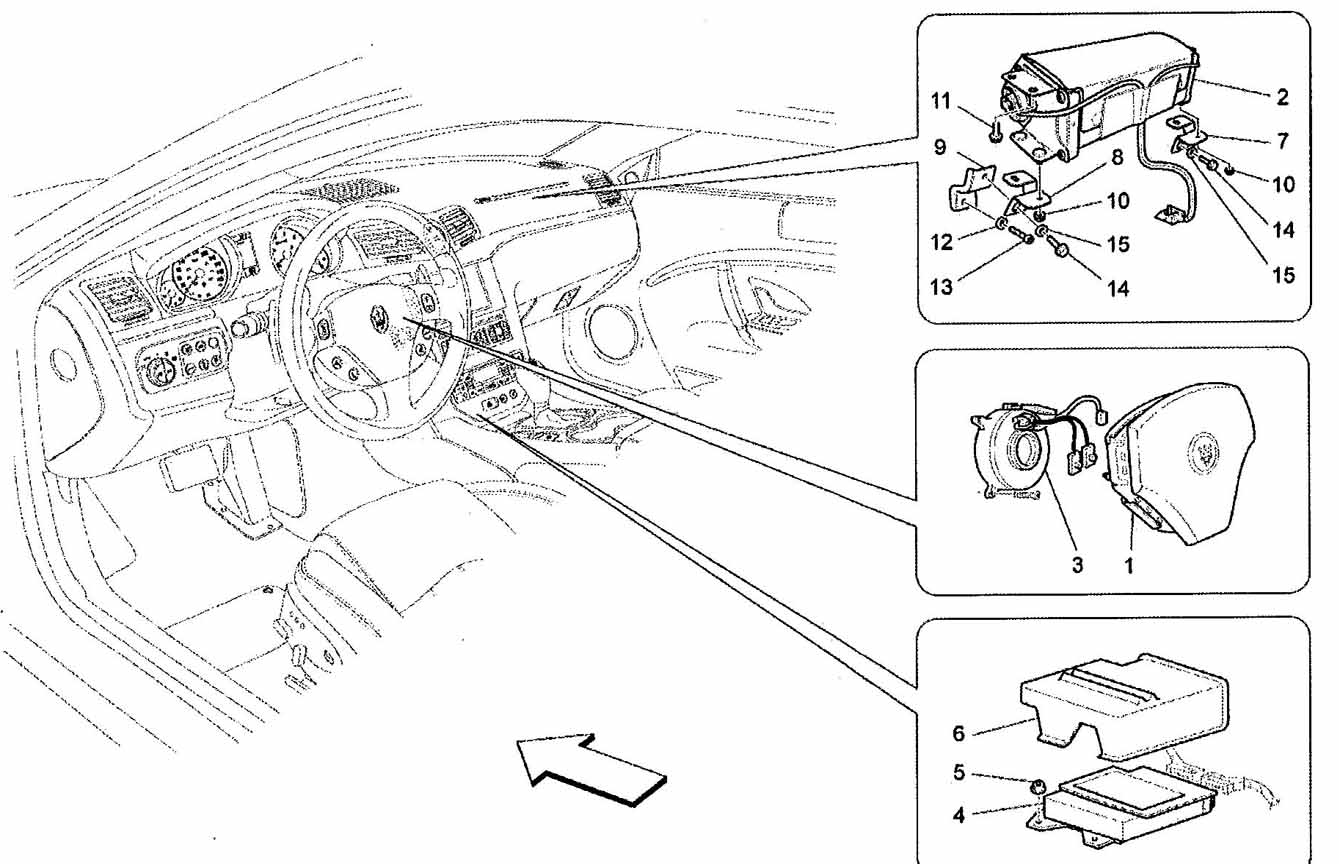

FRONT AIR BAG SYSTEM

Go to Split View

FRONT AIR BAG SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 238113 *Qty: 1 Driver Side Air-Bag Call
Location: 2 Prev | Next Part: 81269900 *Qty: 1 Passenger Side Air-Bag Call
Location: 3 Prev | Next Part: 259914 *Qty: 1 Spiral Contact $273.87
Location: 4 Prev | Next Part: 215339 *Qty: 1 Air-Bag Control Unit $425.17
Location: 5 Prev | Next Part: 14059214 *Qty: 3 Nut $0.90
Location: 6 Prev | Next Part: 67572200 *Qty: 1 Cover $10.96
Location: 7 Prev | Next Part: 81270000 *Qty: 1 R.H. Bracket For Support Passenger Side Air-Bag Call
Location: 8 Prev | Next Part: 81270100 *Qty: 1 L.H. Bracket For Support Passenger Side Air-Bag Call
Location: 9 Prev | Next Part: 81270200 *Qty: 1 L.H. Bracket Call
Location: 9 Prev | Next Part: 81331700 *Qty: 1 R.H. Bracket Call
Location: 10 Prev | Next Part: 14039611 *Qty: 4 Nut Call
Location: 11 Prev | Next Part: 18750121 *Qty: 4 Screw $0.92
Location: 12 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 13 Prev | Next Part: 14306924 *Qty: 2 Screw $0.90
Location: 14 Prev | Next Part: 16287024 *Qty: 2 Screw $0.90
Location: 15 Prev | Next Part: 12602474 *Qty: 2 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
