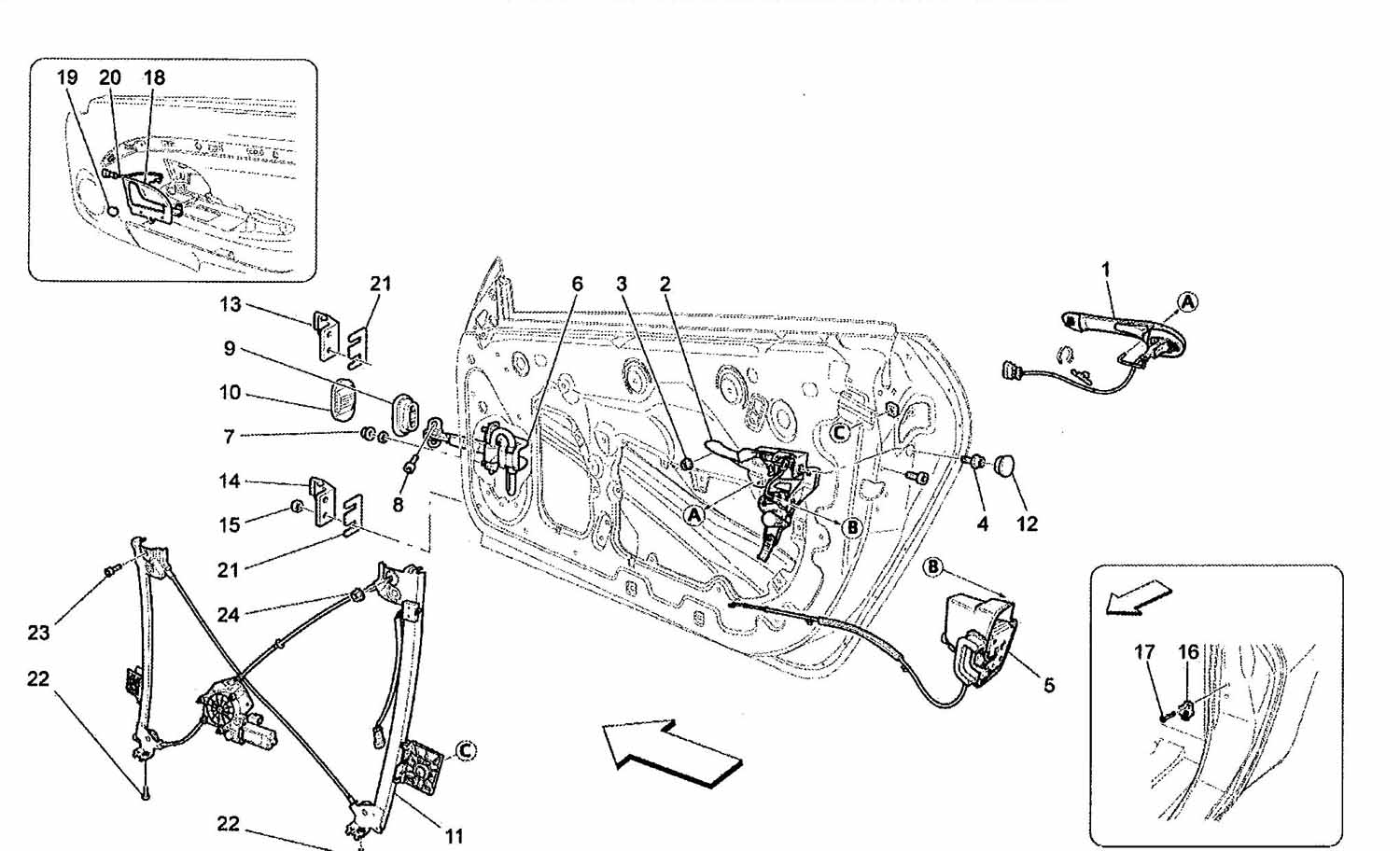

DOOR MECHANISMS AND GLASS LIFTING

Go to Split View

DOOR MECHANISMS AND GLASS LIFTING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: -0 *Qty: 1 L.H. Handle For Door Opening Call
Location: 1 Prev | Next Part: -0 *Qty: 1 R.H. Handle For Door Opening Call
Location: 2 Prev | Next Part: 80177300 *Qty: 1 R.H. Outer Handle Support $165.45
Location: 2 Prev | Next Part: 80177400 *Qty: 1 L.H. Outer Handle Support $165.45
Location: 3 Prev | Next Part: 14040514 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 46401657 *Qty: 2 Screw $0.90
Location: 5 Prev | Next Part: 68893300 *Qty: 1 R.H. Door Lock $186.75
Location: 5 Prev | Next Part: 68893400 *Qty: 1 L.H. Door Lock $186.75
Location: 6 Prev | Next Part: 80174300 *Qty: 2 Tie Rod $39.90
Location: 7 Prev | Next Part: 14040614 *Qty: 4 Nut $0.90
Location: 8 Prev | Next Part: 68808500 *Qty: 4 Screw $2.86
Location: 9 Prev | Next Part: 67575800 *Qty: 2 Gasket $15.58
Location: 10 Prev | Next Part: 67079000 *Qty: 2 Gasket $9.17
Location: 11 Prev | Next Part: 69912100 *Qty: 1 R.H. Glass Lift $493.70
Location: 11 Prev | Next Part: 69914400 *Qty: 1 L.H. Glass Lift $469.57
Location: 12 Prev | Next Part: 14506787 *Qty: 2 Plug $0.90
Location: 13 Prev | Next Part: 67880900 *Qty: 1 Upper R.H. Hinge $143.17
Location: 13 Prev | Next Part: 67881000 *Qty: 1 Upper L.H. Hinge $143.17
Location: 14 Prev | Next Part: 66812400 *Qty: 1 Lower R.H. Hinge $108.66
Location: 14 Prev | Next Part: 66812500 *Qty: 1 Lower L.H. Hinge $108.66
Location: 15 Prev | Next Part: 15501025 *Qty: 8 Nut $0.90
Location: 16 Prev | Next Part: 68308800 *Qty: 2 Striker Superseded
Location: 17 Prev | Next Part: 67999500 *Qty: 4 Screw $6.31
Location: 18 Prev | Next Part: 9816030 *Qty: 1 Complete R.H. Handle For Door Opening Call
Location: 18 Prev | Next Part: 9816031 *Qty: 1 Complete L.H. Handle For Door Opening Call
Location: 18 Prev | Next Part: 980145005 *Qty: 1 Complete R.H. Handle For Door Opening Black $308.24
Location: 18 Prev | Next Part: 980145006 *Qty: 1 Complete L.H. Handle For Door Opening Black $308.24
Location: 19 Prev | Next Part: 66939600 *Qty: 2 Plug $8.09
Location: 20 Prev | Next Part: 234823 *Qty: 2 Microswitch Call
Location: 21 Prev | Next Part: 67274900 *Qty: 0 Plate $22.64
Location: 22 Prev | Next Part: 11567624 *Qty: 4 Screw M 6x14 - Class Lift Fixing $2.96
Location: 23 Prev | Next Part: 11570524 *Qty: 2 Screw M 8x20 - Glass Lift Fixing Call
Location: 24 Prev | Next Part: 14039714 *Qty: 2 Nut Glass Lift Fixing $0.90

* Quantity shown indicates the number of pieces used in the diagram.
