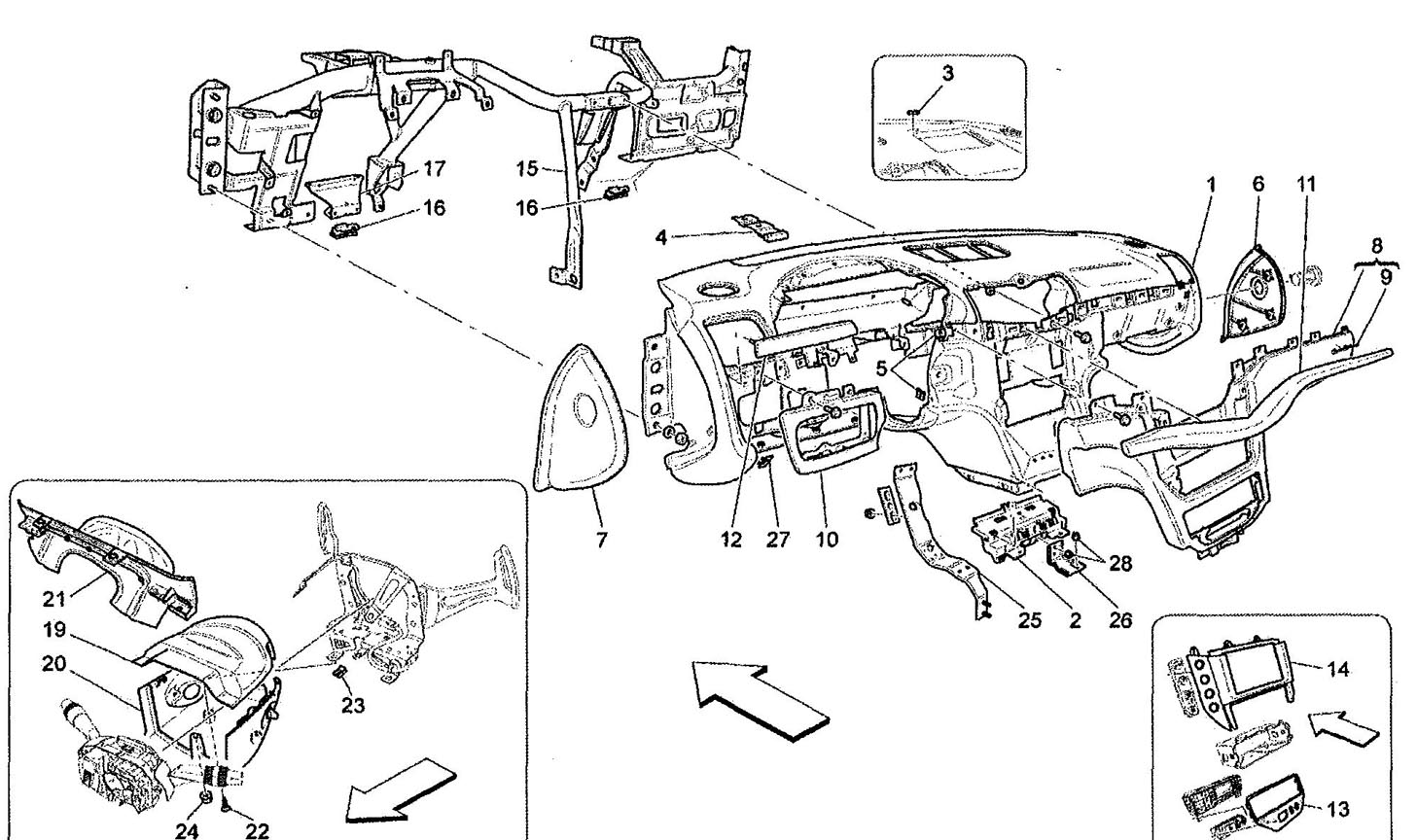

DASHBOARD

Go to Split View

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9816042 *Qty: 1 Complete Dashboard Body Call
Location: 2 Prev | Next Part: 69921800 *Qty: 1 Central Framework $38.37
Location: 4 Prev | Next Part: 68633100 *Qty: 2 Clip Call
Location: 5 Prev | Next Part: 68700800 *Qty: 0 Clip $1.31
Location: 6 Prev | Next Part: 682360 *Qty: 1 R.H. Lateral Dashboard Cover Call
Location: 7 Prev | Next Part: 685160 *Qty: 1 L.H. Lateral Dashboard Cover Call
Location: 8 Prev | Next Part: 813241 *Qty: 1 Central Plate Call
Location: 9 Prev | Next Part: 81324800 *Qty: 1 Emblem Granturismo S $33.68
Location: 10 Prev | Next Part: 689898 *Qty: 1 Complete Plate L.H. Side Call
Location: 11 Prev | Next Part: 68516246 *Qty: 1 R.H. Dashboard Moulding Smoked Quartz Call
Location: 11 Prev | Next Part: 68516247 *Qty: 1 R.H. Dashboard Moulding Alu Grey Call
Location: 11 Prev | Next Part: 802511 *Qty: 1 R.H. Dashboard Moulding High Gloss Moulding Call
Location: 11 Prev | Next Part: 689083 *Qty: 1 R.H. Dashboard Moulding Interior Trimming Call
Location: 11 Prev | Next Part: 820829 *Qty: 1 R.H. Dashboard Moulding Interior Trimming (Carbon) Call
Location: 12 Prev | Next Part: 68516146 *Qty: 1 L.H. Dashboard Moulding Smoked Quartz Call
Location: 12 Prev | Next Part: 68516147 *Qty: 1 L.H. Dashboard Moulding Alu Grey Call
Location: 12 Prev | Next Part: 802512 *Qty: 1 L.H. Dashboard Moulding High Gloss Moulding Call
Location: 12 Prev | Next Part: 689082 *Qty: 1 L.H. Dashboard Moulding Interior Trimming Call
Location: 12 Prev | Next Part: 820830 *Qty: 1 L.H. Dashboard Moulding Interior Trimming (Carbon) Call
Location: 13 Prev | Next Part: 699245 *Qty: 1 Plate Call
Location: 14 Prev | Next Part: 802675 *Qty: 1 Plate Call
Location: 15 Prev | Next Part: 83722400 *Qty: 1 Complete Cross Member $856.54
Location: 16 Prev | Next Part: 188250 *Qty: 2 Dome Lamp $5.21
Location: 17 Prev | Next Part: 68861500 *Qty: 1 Bracket Call
Location: 19 Prev | Next Part: 69997300 *Qty: 1 Upper Cover For Steering Rod $103.35
Location: 20 Prev | Next Part: -0 *Qty: 1 Complete Lower Cover For Steering Rod Call
Location: 21 Prev | Next Part: 69992300 *Qty: 1 Cover For Steering Rod $209.83
Location: 22 Prev | Next Part: 15688875 *Qty: 2 Screw $0.90
Location: 23 Prev | Next Part: 14372171 *Qty: 2 Bracket $0.90
Location: 24 Prev | Next Part: 14059114 *Qty: 1 Nut $0.90
Location: 25 Prev | Next Part: 69899600 *Qty: 1 Bracket $52.47
Location: 26 Prev | Next Part: 80007400 *Qty: 1 Bracket Call
Location: 27 Prev | Next Part: 68700200 *Qty: 0 Clip $7.18
Location: 28 Prev | Next Part: 14039614 *Qty: 4 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
