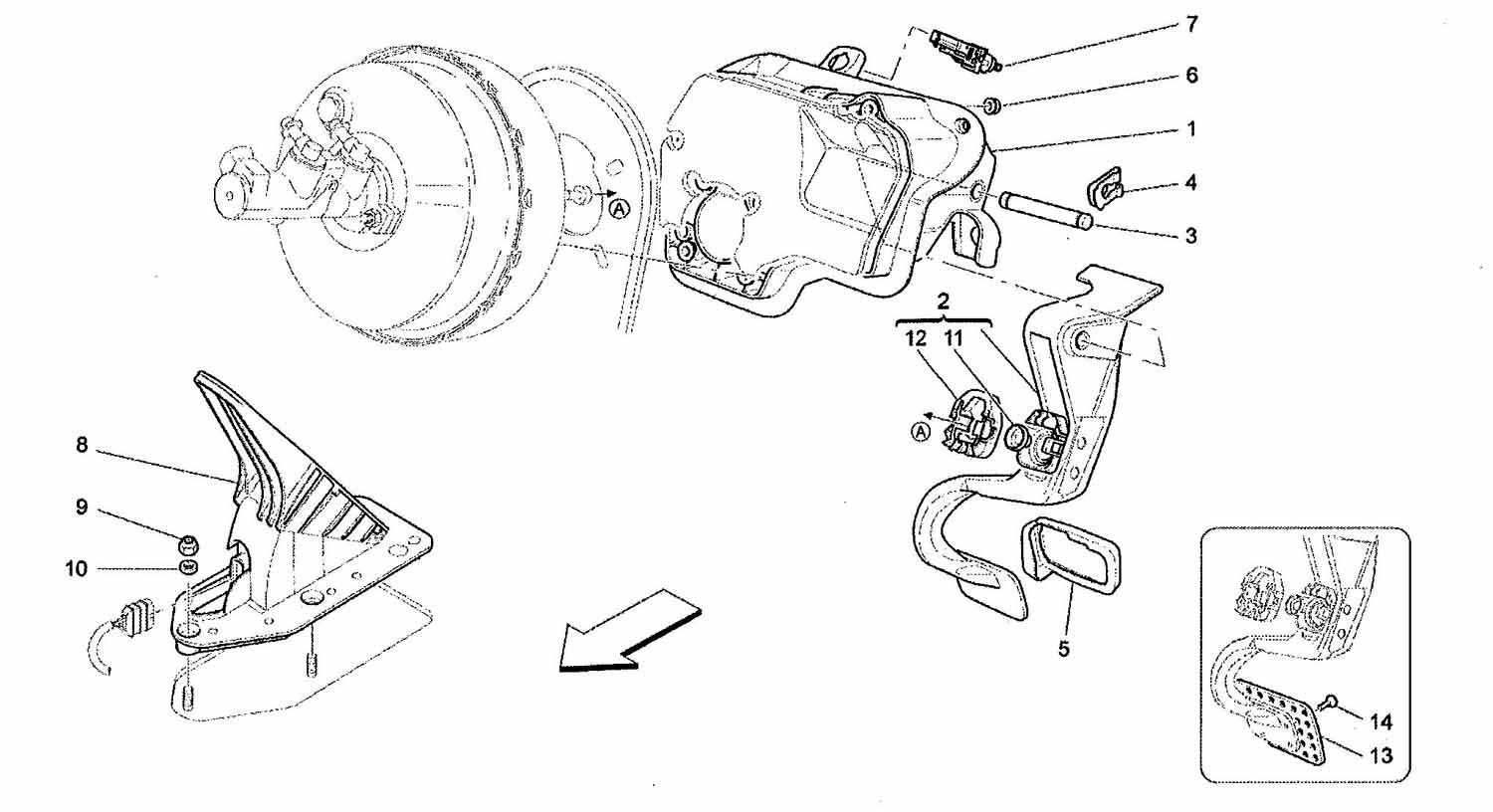

COMPLETE PEDAL BOARD UNIT

Go to Split View

COMPLETE PEDAL BOARD UNIT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 189858 *Qty: 1 Pedal Support $299.05
Location: 2 Prev | Next Part: -0 *Qty: 1 Complete Brake Pedal Call
Location: 3 Prev | Next Part: 189870 *Qty: 1 Pin $83.73
Location: 4 Prev | Next Part: 11064471 *Qty: 2 Retainer $12.30
Location: 5 Prev | Next Part: 246126 *Qty: 1 Brake Pedal Cover Call
Location: 6 Prev | Next Part: 12578211 *Qty: 2 Nut $0.90
Location: 7 Prev | Next Part: 201957 *Qty: 1 Push-Button Switch $43.01
Location: 8 Prev | Next Part: -0 *Qty: 1 Complete Accelerator Pedal Call
Location: 9 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 10 Prev | Next Part: 12601274 *Qty: 3 Washer $0.90
Location: 11 Prev | Next Part: 189864 *Qty: 1 Cup $39.36
Location: 12 Prev | Next Part: 189863 *Qty: 1 Small Block $31.28
Location: 13 Prev | Next Part: -0 *Qty: 1 Brake Pedal Plate Call
Location: 14 Prev | Next Part: -0 *Qty: 4 Screw Call

* Quantity shown indicates the number of pieces used in the diagram.
