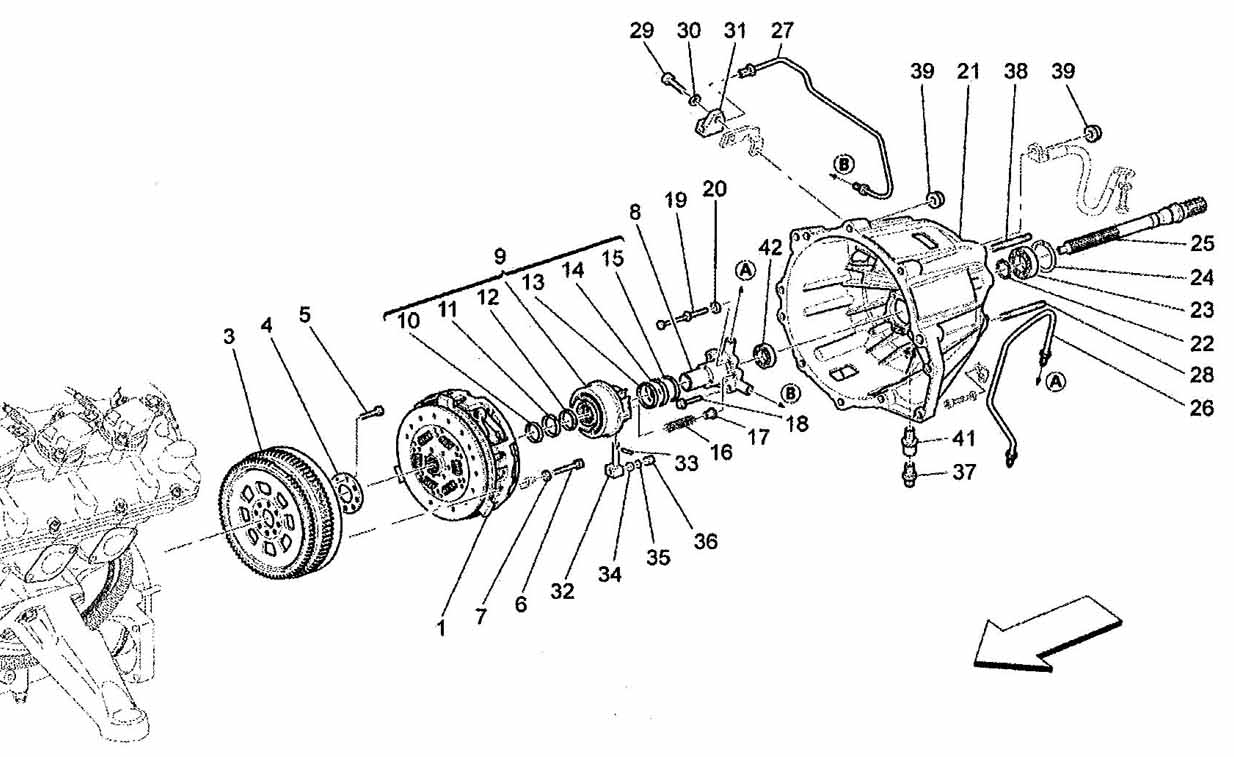

CLUTCH

Go to Split View

CLUTCH

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 228738 *Qty: 1 Complete Clutch - 2006-later only $2,601.05
Location: 3 Prev | Next Part: 230426 *Qty: 1 Complete Engine Flywheel $542.40
Location: 4 Prev | Next Part: 103876 *Qty: 1 Washer $12.53
Location: 5 Prev | Next Part: 201755 *Qty: 8 Screw $2.00
Location: 6 Prev | Next Part: 216771 *Qty: 9 Screw $2.68
Location: 7 Prev | Next Part: 11194377 *Qty: 9 Washer $0.90
Location: 8 Prev | Next Part: 182952 *Qty: 1 Bearing Supporting Flange $1,193.20
Location: 9 Prev | Next Part: 234953 *Qty: 1 Complete Thrust Bearing Not For Cars Without Spacer 155206 $619.11
Location: 10 Prev | Next Part: 181837 *Qty: 1 Scraper Ring $24.49
Location: 11 Prev | Next Part: 170416 *Qty: 1 Ring $1.92
Location: 12 Prev | Next Part: 181838 *Qty: 1 Seal Ring $22.95
Location: 13 Prev | Next Part: 181828 *Qty: 1 Seal Ring $28.61
Location: 14 Prev | Next Part: 154507 *Qty: 1 Ring $4.03
Location: 14 Prev | Next Part: 170419 *Qty: 1 Ring As An Alternative $1.94
Location: 15 Prev | Next Part: 181836 *Qty: 1 Scraper Ring $26.92
Location: 16 Prev | Next Part: 155207 *Qty: 2 Preload Spring $11.12
Location: 17 Prev | Next Part: 155206 *Qty: 2 Spacer For Spring Not For Cars With Complete Thrust Bearing 234953 $3.92
Location: 18 Prev | Next Part: 16286224 *Qty: 2 Screw $3.24
Location: 19 Prev | Next Part: 182955 *Qty: 2 Stud For End Of Stroke $31.32
Location: 20 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 21 Prev | Next Part: 233857 *Qty: 1 Clutch Housing $2,459.87
Location: 22 Prev | Next Part: 144511 *Qty: 1 Stop Ring $1.24
Location: 23 Prev | Next Part: 174470 *Qty: 1 Bearing $54.03
Location: 24 Prev | Next Part: 182963 *Qty: 1 Stop Ring $4.23
Location: 25 Prev | Next Part: 233859 *Qty: 1 Clutch Shaft $250.82
Location: 26 Prev | Next Part: 219574 *Qty: 1 Clutch Oil Bleed Pipe $65.76
Location: 27 Prev | Next Part: 219575 *Qty: 1 Clutch Oil Delivery Tube $299.05
Location: 28 Prev | Next Part: 13547334 *Qty: 2 Stud $9.14
Location: 29 Prev | Next Part: 14305434 *Qty: 1 Screw $0.90
Location: 30 Prev | Next Part: 12604274 *Qty: 1 Washer $0.90
Location: 31 Prev | Next Part: 139471 *Qty: 1 Two-Way Union $42.99
Location: 32 Prev | Next Part: 166676 *Qty: 1 Pin $44.86
Location: 33 Prev | Next Part: 14158570 *Qty: 1 Flexible Pin $0.90
Location: 34 Prev | Next Part: 165676 *Qty: 1 Magnet Superseded
Location: 35 Prev | Next Part: 165658 *Qty: 1 O.R. Gasket $10.06
Location: 36 Prev | Next Part: 167802 *Qty: 1 Plug $20.18
Location: 37 Prev | Next Part: 121699 *Qty: 1 Bleeder Screw $58.32
Location: 38 Prev | Next Part: 13546334 *Qty: 6 Stud $1.25
Location: 39 Prev | Next Part: 14059421 *Qty: 7 Nut $0.90
Location: 39 Prev | Next Part: 14059421 *Qty: 7 Nut $0.90
Location: 41 Prev | Next Part: 207451 *Qty: 1 Union $750.86
Location: 42 Prev | Next Part: 236721 *Qty: 1 Bearing $54.99

* Quantity shown indicates the number of pieces used in the diagram.
