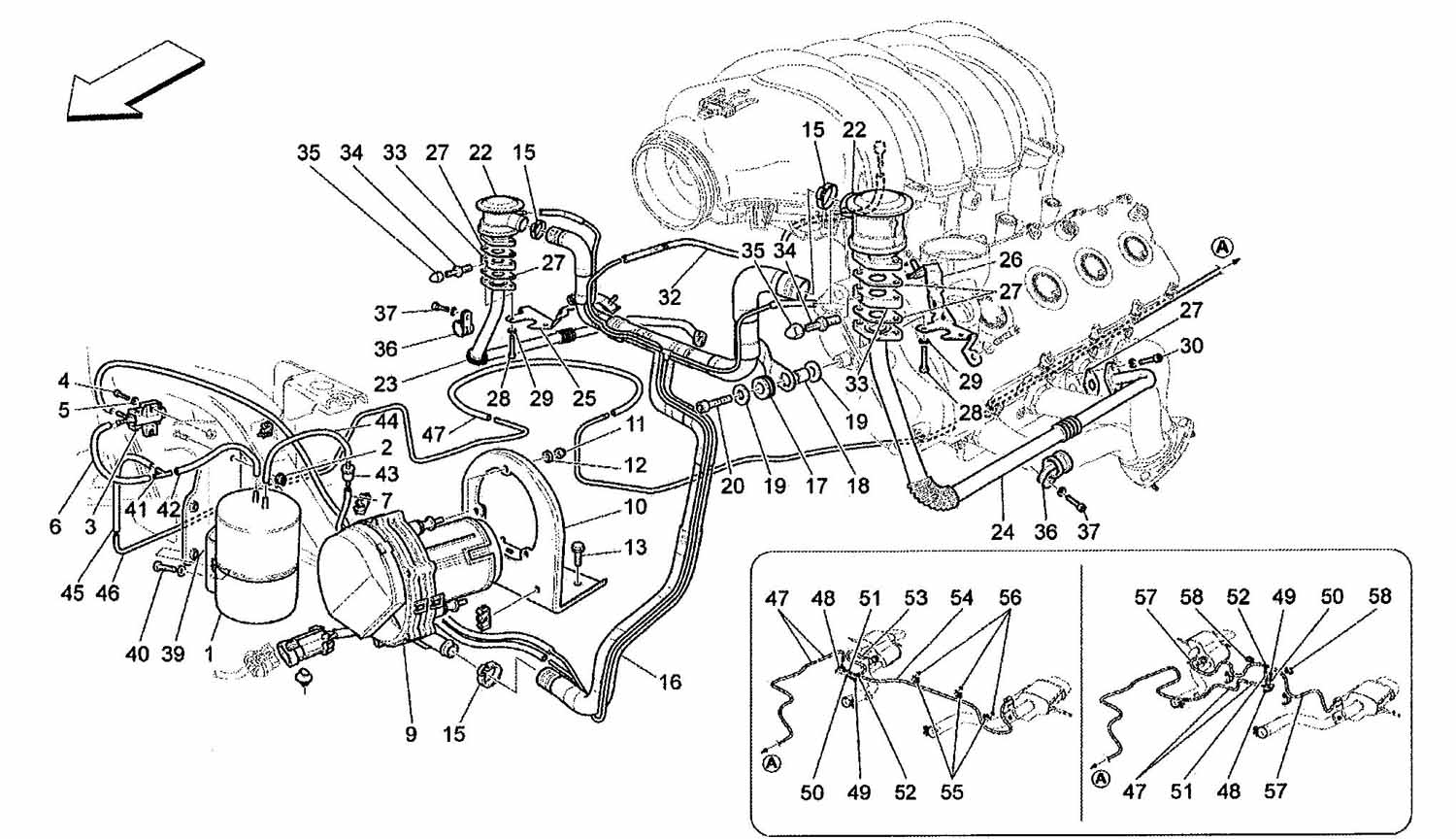

AUXILIARY AIR SYSTEM

AUXILIARY AIR SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 240380 1 Vacuum Tank $152.33
2 14059211 2 Nut $0.90
3 184363 1 On/Off Solenoid Valve Superseded
4 14304624 2 Screw Unavailable
5 12601174 2 Washer $0.90
6 234410 1 Sleeve Unavailable
7 251359 1 Sleeve $5.44
9 181197 1 Secondary Air Pump $512.05
10 215965 1 Air Pump Fixing Bracket $25.38
11 102948 3 Nut Superseded
12 12601274 3 Washer $0.90
13 16285924 2 Screw Unavailable
15 226356 3 Clamp Unavailable
16 241777 1 Complete Valve Air Delivery Tube $253.34
17 219456 3 Anti-Vibration Support $3.09
18 219457 3 Spacer $31.40
19 12647727 6 Washer Unavailable
20 231618 3 Screw Unavailable
22 171175 2 Secondary Air Valve $323.30
23 226274 1 R.H. Air Valve Pipe $193.26
24 226275 1 L.H. Air Valve Pipe $443.35
25 227001 1 R.H. Air Valve Fixing Bracket $16.05
26 227000 1 L.H. Air Valve Fixing Bracket $27.61
27 186781 6 Gasket $5.40
28 231621 4 Screw Unavailable
29 127494 4 Washer $0.90
30 231616 4 Screw Unavailable
32 230835 1 Rubber Hose $26.63
33 210653 2 Spacer $30.21
34 210868 2 Threaded Union $16.22
35 150595 2 Cap Nut $1.10
36 10441590 2 Bracket With Sheath Unavailable
37 233600 2 Screw Unavailable
39 236872 1 Bracket $52.64
40 11730424 2 Screw $3.02
41 257691 1 3-Way Union $1.91
42 234403 1 Sleeve $7.47
43 253896 1 Nonreturn Valve Unavailable
43 253896 1 Nonreturn Valve Unavailable
44 165608 1 Sleeve $2.62
44 165608 1 Rubber Hose $2.62
45 234410 1 Sleeve Unavailable
46 235338 1 Rigid Pipe $77.95
47 235639 1 Under Body Depression Pipe $130.73
48 184363 1 On/Off Solenoid Valve Superseded
49 14304124 2 Screw Unavailable
50 12601174 2 Washer $0.90
51 235640 1 Sleeve Unavailable
52 257691 1 3-Way Union $1.91
53 235642 1 Rubber Hose $4.63
54 235641 1 Rubber Hose $9.58
55 10441390 6 Bracket With Sheath Unavailable
56 13831811 6 Nut Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
