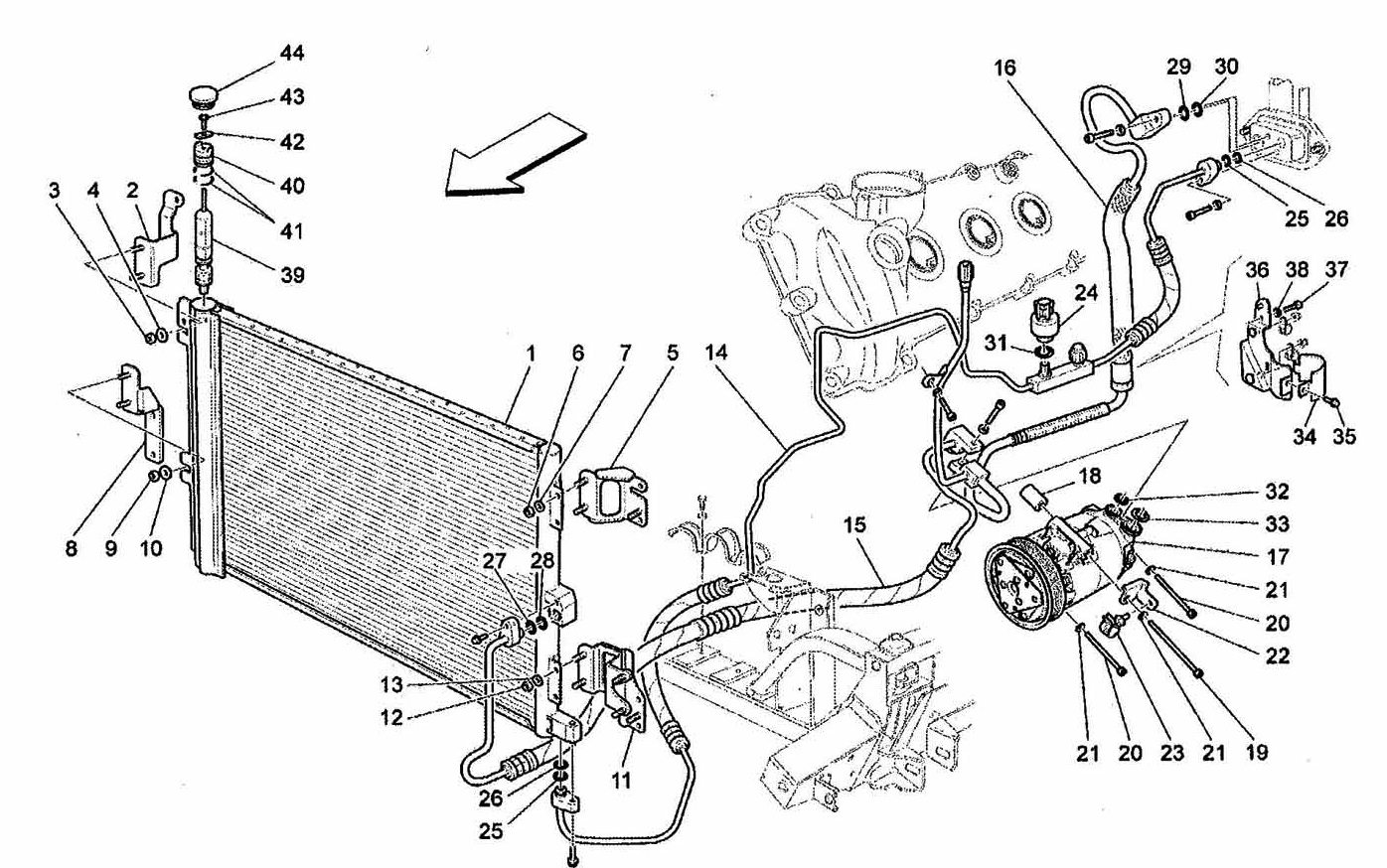

A/C – ENGINE COMPARTMENT DEVICES -1

Go to Split View

A/C – ENGINE COMPARTMENT DEVICES -1

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 228388 *Qty: 1 A.C. Condenser $738.36
Location: 2 Prev | Next Part: 239419 *Qty: 1 Bracket R.H. Upper Call
Location: 3 Prev | Next Part: 102741 *Qty: 1 Nut $0.51
Location: 4 Prev | Next Part: 12643704 *Qty: 1 Washer $0.90
Location: 5 Prev | Next Part: 239421 *Qty: 1 Bracket L.H. Upper Call
Location: 6 Prev | Next Part: 102741 *Qty: 2 Nut $0.51
Location: 7 Prev | Next Part: 12644404 *Qty: 2 Washer Superseded
Location: 8 Prev | Next Part: 239420 *Qty: 1 Bracket R.H. Lower Call
Location: 9 Prev | Next Part: 102741 *Qty: 1 Nut $0.51
Location: 10 Prev | Next Part: 12643704 *Qty: 1 Washer $0.90
Location: 11 Prev | Next Part: 239422 *Qty: 1 Bracket L.H. Lower $32.11
Location: 12 Prev | Next Part: 102741 *Qty: 2 Nut $0.51
Location: 13 Prev | Next Part: 12644404 *Qty: 2 Washer Superseded
Location: 14 Prev | Next Part: 84696800 *Qty: 1 Pipe From Condenser To Shield $200.43
Location: 15 Prev | Next Part: 80375900 *Qty: 1 Pipe From Compressor To Condenser $212.96
Location: 16 Prev | Next Part: 69666400 *Qty: 1 Pipe From Compressor To Shield Joint Call
Location: 17 Prev | Next Part: 263171 *Qty: 1 Air Conditioning Compressor Call
Location: 18 Prev | Next Part: 141496 *Qty: 1 Spacer $3.82
Location: 19 Prev | Next Part: 175428 *Qty: 1 Screw $2.55
Location: 20 Prev | Next Part: 14307124 *Qty: 2 Screw $0.90
Location: 21 Prev | Next Part: 11193874 *Qty: 3 Washer $0.90
Location: 22 Prev | Next Part: 227256 *Qty: 1 Bracket Call
Location: 23 Prev | Next Part: 67063200 *Qty: 1 Clip $1.58
Location: 24 Prev | Next Part: 65628200 *Qty: 1 Pressostat $193.77
Location: 25 Prev | Next Part: 68392000 *Qty: 2 O.R. Gasket $4.16
Location: 26 Prev | Next Part: 68392100 *Qty: 2 O.R. Gasket $4.16
Location: 27 Prev | Next Part: 66309700 *Qty: 1 O.R. Gasket $8.49
Location: 28 Prev | Next Part: 68392700 *Qty: 1 O.R. Gasket $2.12
Location: 29 Prev | Next Part: 68392800 *Qty: 1 O.R. Gasket $2.57
Location: 30 Prev | Next Part: 66309800 *Qty: 1 O.R. Gasket $5.58
Location: 31 Prev | Next Part: 66309600 *Qty: 1 O.R. Gasket $2.58
Location: 32 Prev | Next Part: 67085400 *Qty: 1 O.R. Gasket $19.31
Location: 33 Prev | Next Part: 67085300 *Qty: 1 O.R. Gasket $19.31
Location: 34 Prev | Next Part: 68199800 *Qty: 1 Bracket Call
Location: 35 Prev | Next Part: 16297627 *Qty: 1 Screw $0.90
Location: 36 Prev | Next Part: 233192 *Qty: 1 Bracket Call
Location: 37 Prev | Next Part: 14305724 *Qty: 1 Screw $0.90
Location: 38 Prev | Next Part: 11197774 *Qty: 1 Washer Superseded
Location: 39 Prev | Next Part: 254649 *Qty: 1 Dehydrating Filter $431.30
Location: 40 Prev | Next Part: 251236 *Qty: 1 Plug $42.29
Location: 41 Prev | Next Part: 251239 *Qty: 2 O.R. Gasket $9.96
Location: 42 Prev | Next Part: 251238 *Qty: 1 Plate $15.90
Location: 43 Prev | Next Part: 251237 *Qty: 1 Screw Call
Location: 44 Prev | Next Part: 251241 *Qty: 1 Plug $11.41

* Quantity shown indicates the number of pieces used in the diagram.
